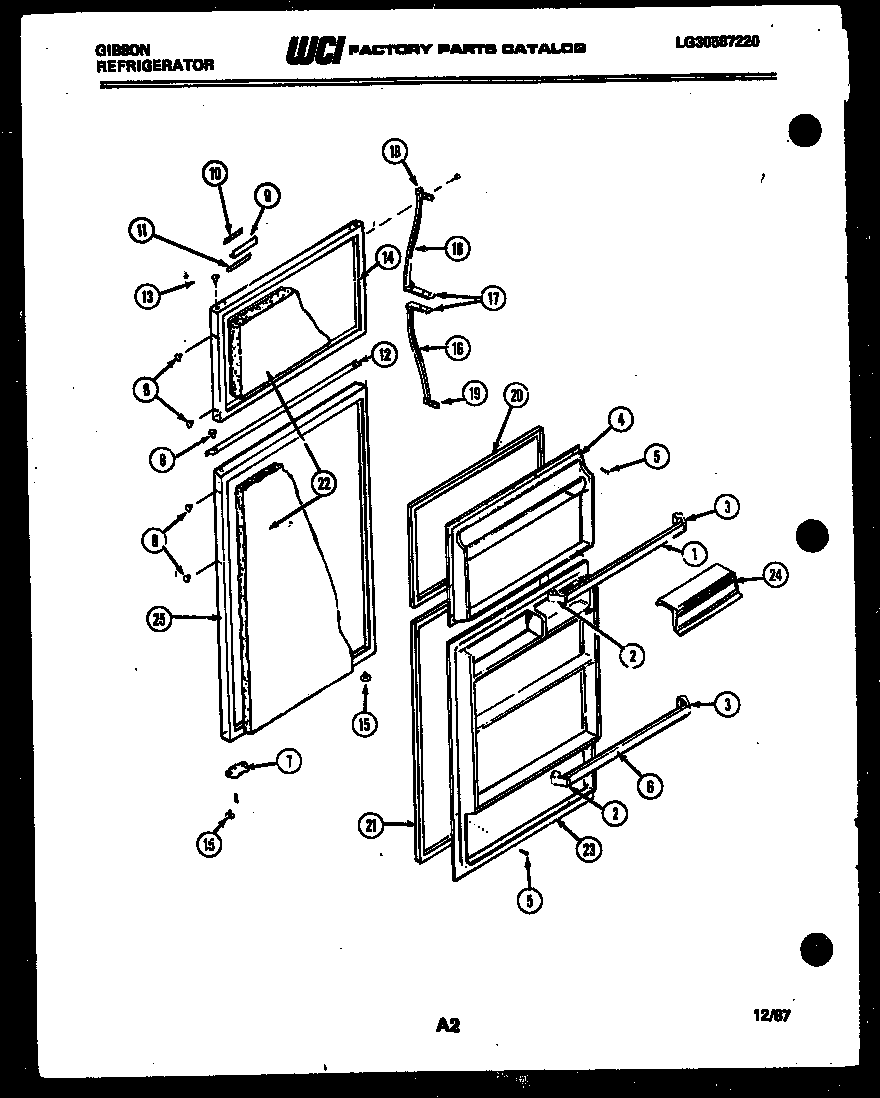

RD19F7WU3B 02 – DOOR PARTSadmin2025-04-26T08:42:26+00:00RD19F7WU3B 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | WCI G162887-18 |
| 2 | SUPPORT LS (4) |
| 3 | SUPPORT RS (4) |
| 4 | WCI G184903-01 |
| 5 | 218843801 Frigidaire Refrigerator Screw |
| 6 | WCI G162887-21 |
| 7A | STOP, DOOR. PC & FC (2) |
| 8 | 240494001 Frigidaire Refrigerator Plug Button |
| 8 | WCI G162977-09 |
| 8 | WCI G162977-10 |
| 8 | WCI G162977-08 |
| 8 | WCI G162977-11 |
| 9 | NAMEPLATE |
| 9A | TAPE-FRAME MOUNTING (NON-ILLUSTRATED) |
| 10 | LABEL, UPPER |
| 11 | LABEL, LOWER |
| 12 | TRIM-REFRIG DOOR |
| 13 | WCI G169332-11 |
| 13 | WCI G169332-10 |
| 13 | WCI G169332-09 |
| 13 | WCI G169332-01 |
| 13 | WCI G169332-08 |
| 14 | PANEL, OUTER, ALMOND |
| 14 | WCI G178690-10 |
| 14 | PANEL, OUTER, WHEAT |
| 14 | PANEL, OUTER, AVOCADO |
| 14 | PANEL, OUTER, WHITE |
| 15 | BEARING, HINGE (3) |
| 16 | WCI G170495-24 |
| 17 | WCI G187329-01 |
| 18 | WCI G179800 |
| 19 | WCI G179801 |
| 19A | WCI G185566 |
| 20 | GASKET |
| 21 | GASKET |
| 22 | WCI G89643 |
| 23 | PANEL-INNER |
| 24 | DAIRY DOOR (2) |
| 25 | REFRIGERATOR DOOR-AVOCADO |
| 25 | REFRIGERATOR DOOR-ALMOND |
| 25 | REFRIGERATOR DOOR-WHEAT |
| 25 | REFRIGERATOR DOOR-WHITE |
| 25 | REFRIGERATOR DOOR-COFFEE |
