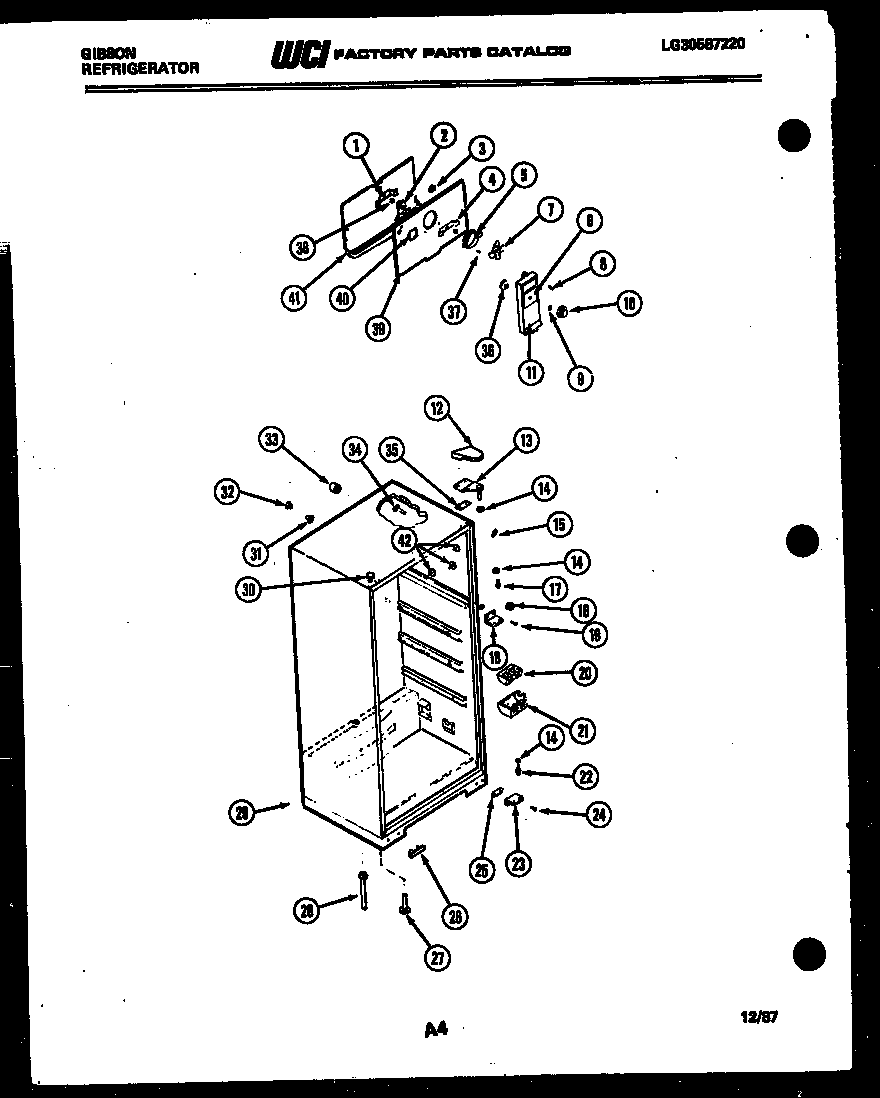

RD19F7WU3B 03 – CABINET PARTS

Products

PositionProduct
*36866BUTTON, PLUG, LINER (2)
*368645304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*36866BUTTON, LINER
1WCI G185303
25300158289 Frigidaire Evaporator Fan Motor
3A5304455651 Frigidaire Refrigerator Screw
3WCI G164571
4WCI G185302
5RING, FAN ORIFICE
6LABEL, COVER
75308000010 Frigidaire Refrigerator Evaporator Fan Blade
85304455650 Frigidaire Refrigerator Screw
9NUT, DAMPER MOUNTING
10KNOB
11WCI G163061-76
12COVER, TOP HINGE, AVOCADO
12COVER HINGE, WHEAT
12COVER HINGE, COFFEE
12COVER HINGE, WHITE
12COVER, TOP HINGE, ALMOND
13A241710601 Frigidaire Refrigerator Screw
13BRACKET, TOP HINGE
14WCI G103903
15WCI G179684-01
15TRIM CORNER (4), AVOCADO
15WCI G179684-10
15TRIM-CORNER, ALMOND (4)
15WCI G179684-09
16WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
17WCI G142220
18BRACKET, HINGE CENTER
19SCREW, BRACKET MOUNTING (4)
19AWASHER (2)
20DEFLECTOR AIR
21WCI G162178
225303001321 Frigidaire Refrigerator Lower Hinge Pin
23BRACKET-HINGE
24ATAPPING, PLATE (2)
25SHIM, HINGE
26WCI G166912
27ANUT, ANCHOR (2)
27LEG-LEVELING (2)
28CRING, SEAL (NON-ILLUSTRATED)
28ASPOUT DRAIN TUBE
28TUBE, DRAIN
28BPIN PUSH SPOUT (2)
29WCI G490004-02
30WCI G174747-10
30WCI G174747-08
30WCI G174747-11
30WCI G174747-09
30WCI G174747–01
31WCI G174733
32WCI G174734
33TUBE, INSULATION (2)
34WCI G163669
35WCI G183861
36DAMPER FAN COVER
37218843801 Frigidaire Refrigerator Screw
38G187559 Frigidaire Refrigerator Bushing
39WCI G177529
40BUTTON-DECORATIVE
41WCI G177534
425304509705 Frigidaire Refrigerator Grommet
