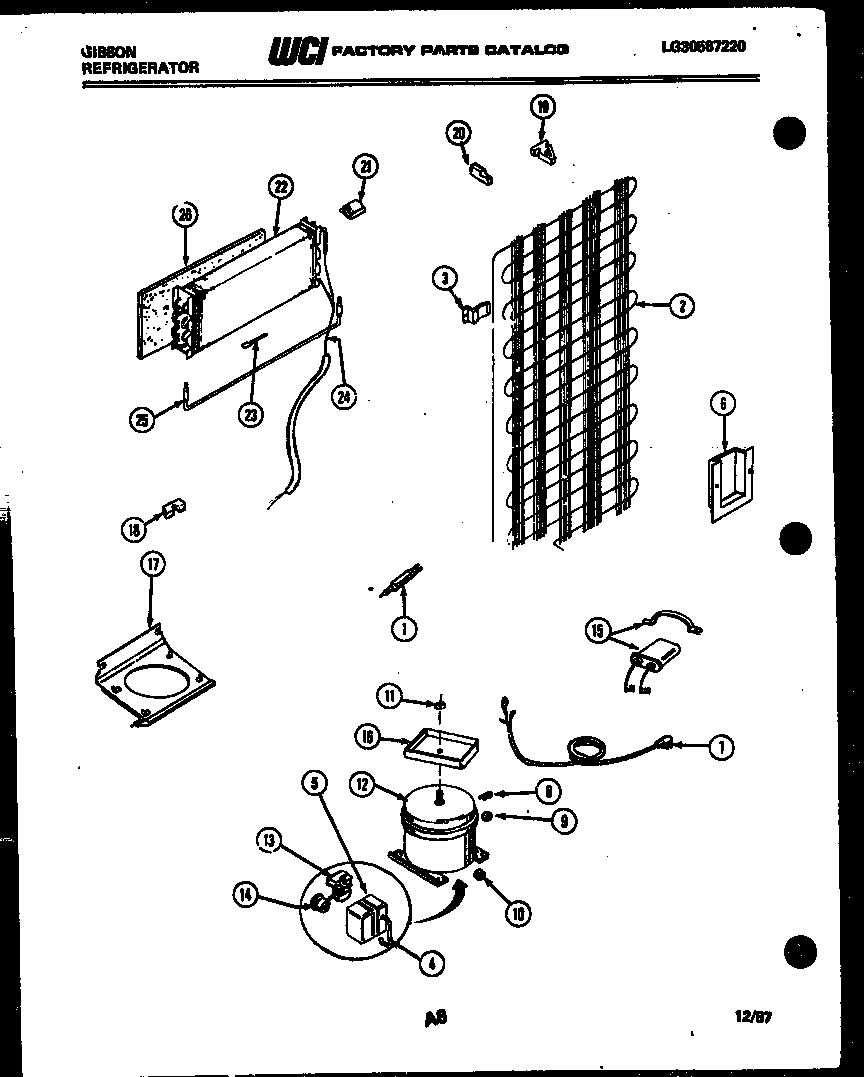

RD19F7WU3B 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*37008WCI G167234
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI G162739
3BRACKET-CONDENSER MOUNTING (4)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6WCI G183584
7CORD, SERVICE
8CLIP, COMPRESSOR MOUNTING (4)
9WASHER, COMPRESSOR MOUNTING (4)
10218513300 Frigidaire Refrigerator Compressor Mount Grommet
11NUT, LOCK
12COMPRESSOR
13WCI G182225-18
14WCI G188877
15CAPACITOR
15ASTRAP-CAPACITOR
16DEFROST PAN & NUT
17PLATE
18BLOCK, LEFT SIDE
19BLOCK, EVAPORATOR, RH
20PLUG, EVAPORATOR INSULATION BLOCK, R H
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22EVAPORATOR
235308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
24HEAT-EXCH
255317842502 Frigidaire Defrost Heater
26BHOT TUBE REPAIR KIT
26AHARNESS-COMPRESSOR
26INSULATOR
26C5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
