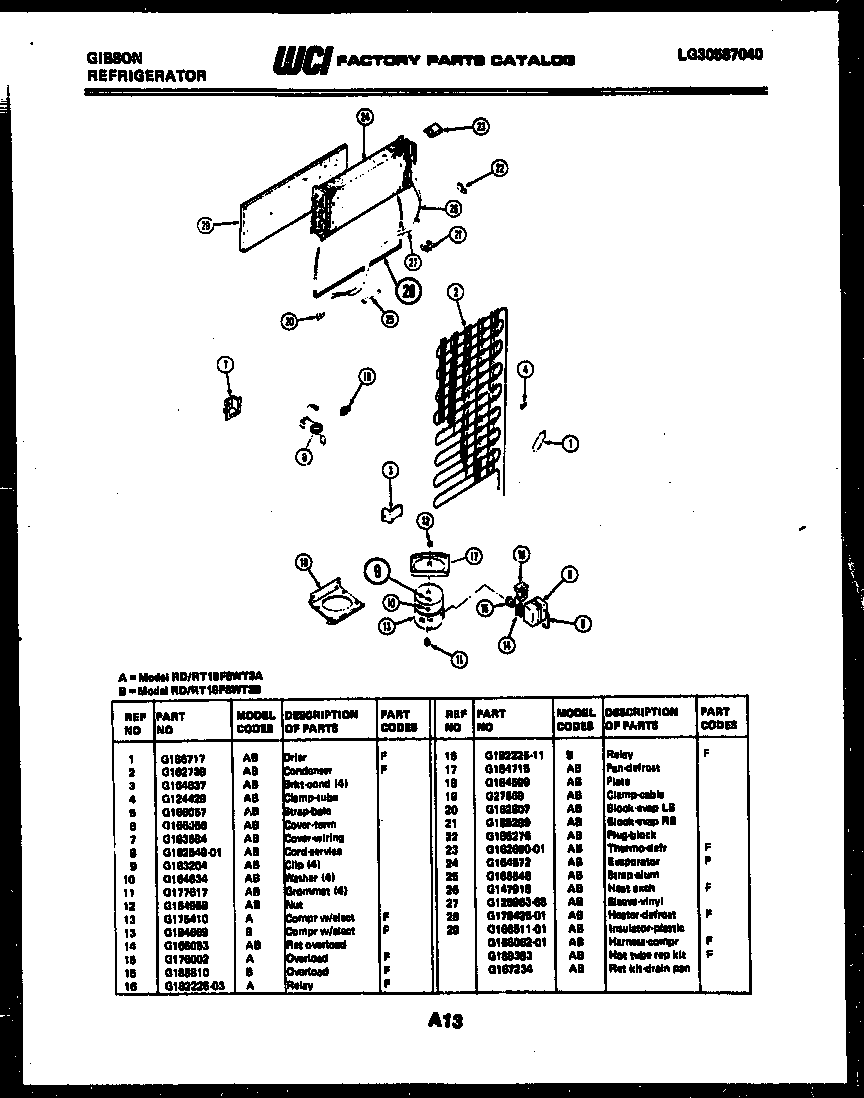

RD19F8WT3A 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	5303305677 Frigidaire Replacement Filter Dryer Filters
2	WCI G162739
3	BRACKET-CONDENSER MOUNTING (4)
4	5303001193 Frigidaire Refrigerator Clamp
5	5303006412 Frigidaire Refrigerator Cover Mounting Strap
7	WCI G183584
8	CORD, SERVICE
9	CLIP, COMPRESSOR MOUNTING (4)
10	WASHER, COMPRESSOR MOUNTING (4)
11	218513300 Frigidaire Refrigerator Compressor Mount Grommet
12	NUT, LOCK
13	COMPRESSOR WITH ELECTRICALS
14	CLIP, OVERLOAD
15	WCI G176002
16	WCI G182225-03
17	DEFROST PAN & NUT
18	PLATE
19	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
20	BLOCK, EVAPORATOR, LH
21	BLOCK, EVAPORATOR, RH
22	PLUG, EVAPORATOR INSULATION BLOCK, R H
23	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24	EVAPORATOR
25	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26	HEAT, EXCHANGE
27	WCI G125963-68
28	5317842502 Frigidaire Defrost Heater
29A	HARNESS-COMPRESSOR
29B	HOT TUBE REPAIR KIT
29C	WCI G167234
29	INSULATOR
