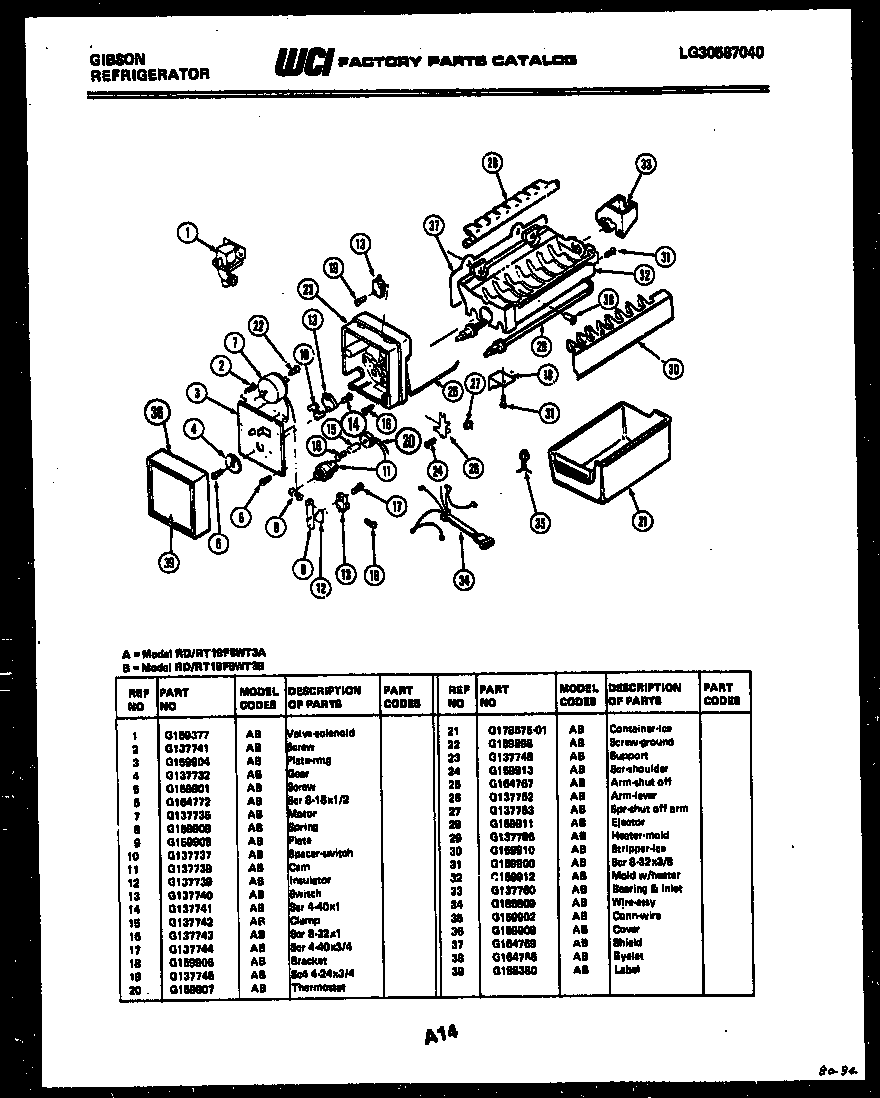

RD19F8WT3A 05 – ICE MAKER PARTS

Products

Position	Product
1	WCI G159377
3	WCI G159904
4	5304469403 Frigidaire Gear
5	SCREW
6	WCI G164772
7	WCI G137735
8	WCI G159909
9	WCI G159905
10	SPACER, HOLDING SWITCH
11	WCI G137738
12	WCI G137739
13	WCI G137740
14	SCREW 4, 40 X 1
15	WCI G137742
16	SCREW 8, 32 X 1
17	SCREW 4, 40 X 3/4
18	WCI G159906
19	WCI G137745
20	WCI G159907
21	5303212918 Frigidaire Refrigerator Cont
22	WCI G159898
23	WCI G137748
24	SCREW, SHOULDER
25	ARM, SHUT OFF
26	5304456675 Frigidaire Refrigerator Lever Arm
27	WCI G137753
28	WCI G159911
29	WCI G137756
30	STRIPPER-ICE
31	WCI G159900
32	MOLD AND HEATER ASSEMBLY (INCLUDES ILLUSTRATION 29)
33	WCI G137760
34	WIRE ASSEMBLY
35	WCI G159902
36	WCI G159908
37	SHIELD
38	WCI G164766
39	WCI G188380
