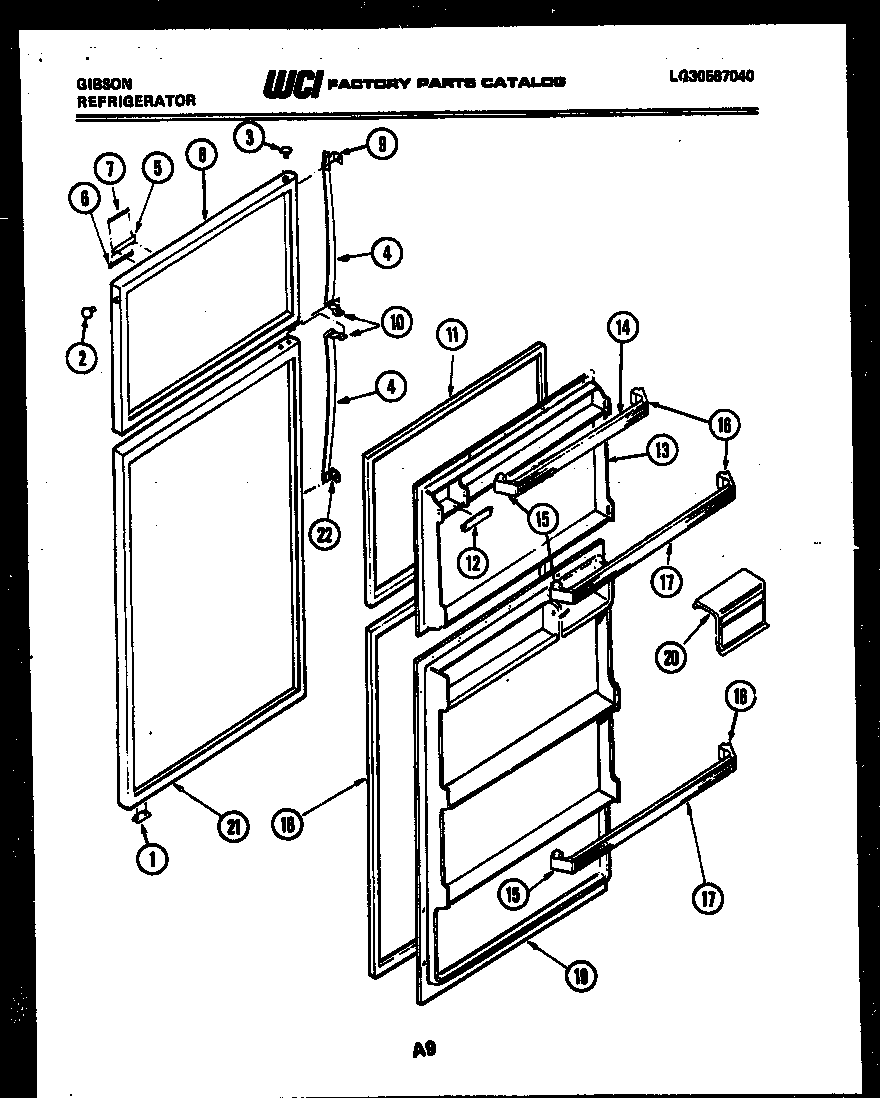

RD19F8WT3B 02 – DOOR PARTS

Products

Position	Product
*68015	WCI 168981-11
*67976	WCI G168981-01
*68014	WCI G168981-09
*68015	WCI G168981-10
*67977	KIT-DOOR CONV, AVOCADO
1	STOP, DOOR. PC & FC (2)
2	240494001 Frigidaire Refrigerator Plug Button
2	WCI G162977-10
2	WCI G162977-09
2	WCI G162977-11
2	WCI G162977-08
3	WCI G169332-01
3	WCI G169332-09
3	WCI G169332-08
3	WCI G169332-10
3	WCI G169332-11
4	WCI G170495-24
5	NAMEPLATE
6	LABEL, LOWER
7	WCI G186378-02
8	PANEL, OUTER, ALMOND
8	WCI G178690-10
8	PANEL, OUTER, WHEAT
8	PANEL, OUTER, AVOCADO
8	PANEL, OUTER, WHITE
9	WCI G179800
9A	WCI G185566
10	WCI G187329-01
11	GASKET
12	RACK-JUICE CAN
13	PANEL, INNER
14	RACK-FRZR-UPPER
15	SUPPORT, RACK, LH (PC) (2)
16	SUPPORT, RACK, RH, (PC) (2)
17	RACK-DOOR (3)
18	GASKET
19	WCI G187452-02
19A	5304455651 Frigidaire Refrigerator Screw
20	WCI G187460-01
21A	BEARING, HINGE (3)
21	REFRIGERATOR DOOR-ALMOND
21	REFRIGERATOR DOOR-WHITE
21	REFRIGERATOR DOOR-AVOCADO
21	REFRIGERATOR DOOR-WHEAT
21	REFRIGERATOR DOOR-COFFEE
22	WCI G179801
