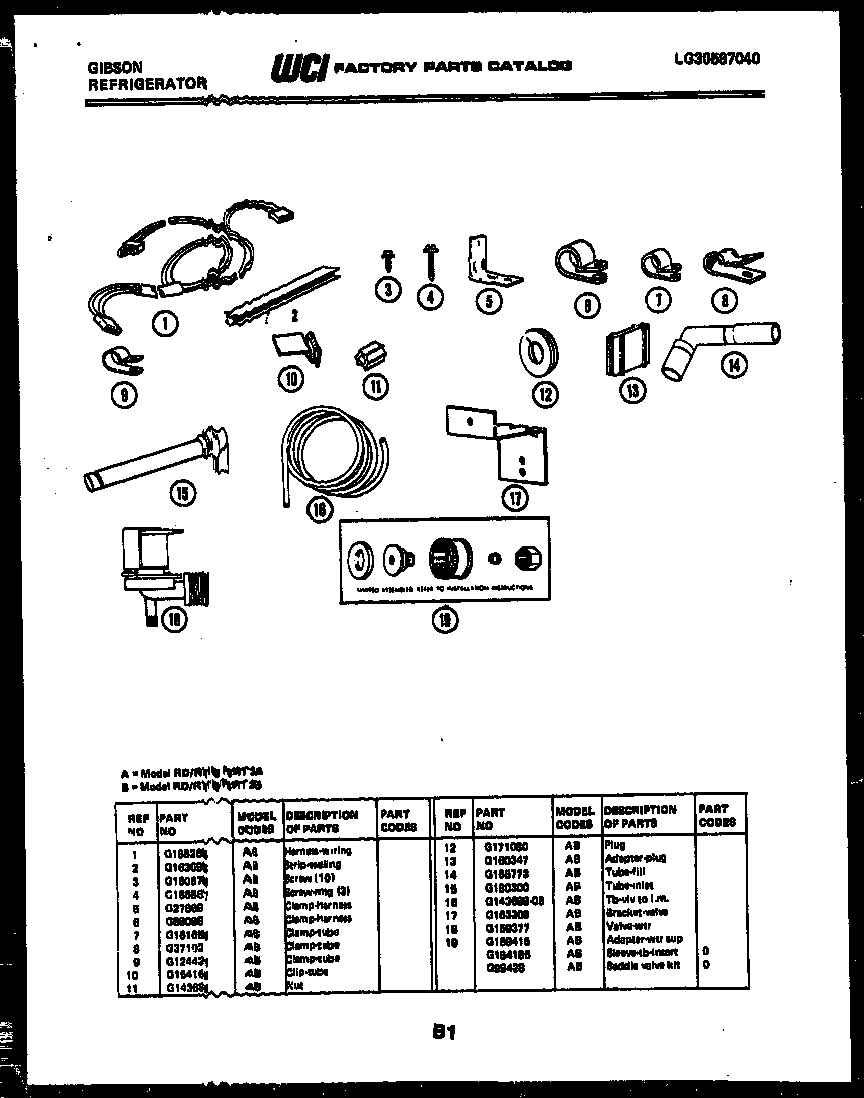

RD19F8WT3B 06 – ICE MAKER INSTALLATION PARTS

RD19F8WT3B 06 – ICE MAKER INSTALLATION PARTS

Written by

in

RD19F8WT3B 06 – ICE MAKER INSTALLATION PARTS

Products

PositionProduct
*68207WCI G154156
*68208WCI G99428
1WCI G185266
25305877995 Frigidaire Refrigerator P-1 Sealing Strip
35308000039 Frigidaire Refrigerator Screw
45304455852 Frigidaire Refrigerator Screw
55303001199 Frigidaire Refrigerator Wiring Harness Clamp
6240396801 Frigidaire Refrigerator Tube Clamp
7CLAMP-TUBE (NON-ILLUSTRATED)
85304455846 Frigidaire Refrigerator Clamp
95303001193 Frigidaire Refrigerator Clamp
10WCI G154167
11NUT, INLET TO SOLENOID VALVE
125303001147 Frigidaire Refrigerator Plug-Harness Hole
13WCI G160347
14WCI G165773
15215456100 Frigidaire Refrigerator Water Inlet Tube
165308010366 Frigidaire Refrigerator P1-Water Inlet Tube
17BRACKET, VALVE TO REAR PANEL
18WCI G159377
19WCI G159415
