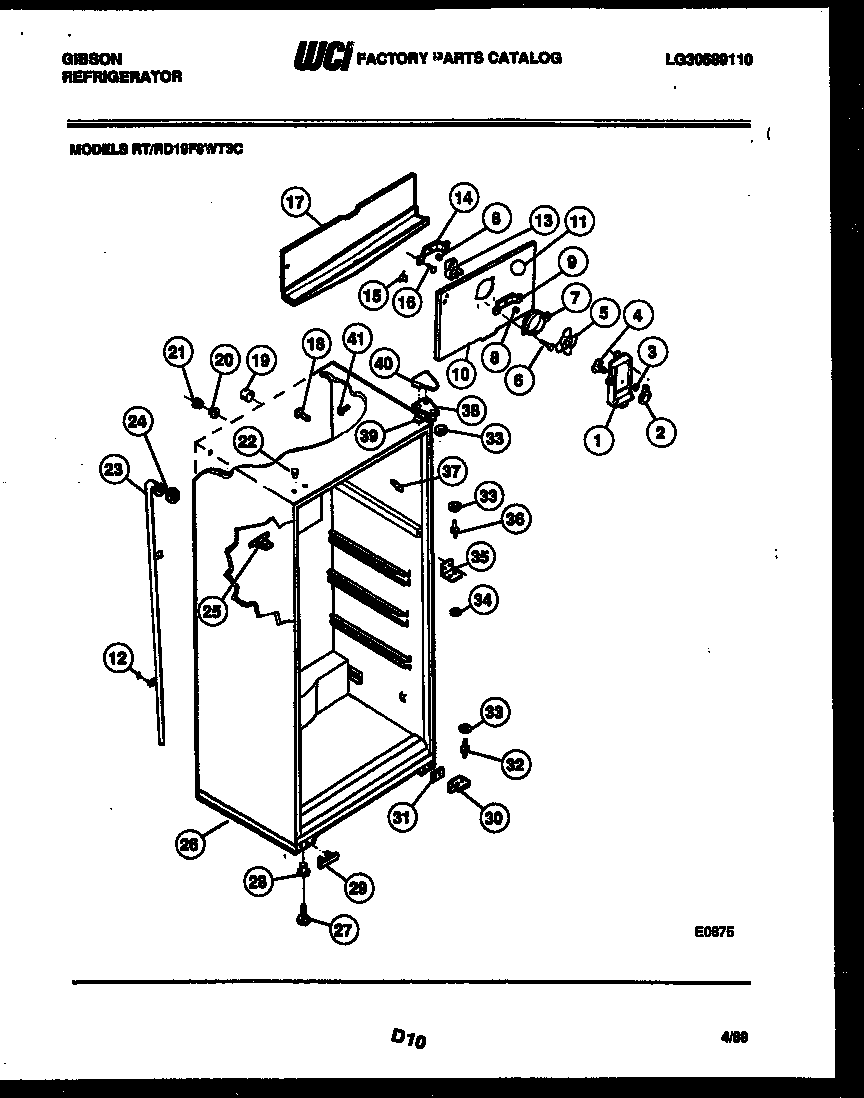

RD19F8WT3C 03 – CABINET PARTS

Products

Position	Product
*14875	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
1	WCI G163061-81
2	KNOB-DAMPER
3	NUT, DAMPER MOUNTING
4	DAMPER FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING, FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI G185302
10	WCI G177529
10B	240396801 Frigidaire Refrigerator Tube Clamp
10C	5304455650 Frigidaire Refrigerator Screw
10A	NUT, ORIFICE (2)
11	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI G185303
15	WCI G164571
16	5304455651 Frigidaire Refrigerator Screw
17	WCI G177534
18	WCI G163669
19	TUBE, INSULATION (2)
20	WCI G174733
21	WCI G174734
22	WCI G174747-11
22	WCI G174747-10
22	WCI G174747-09
22	WCI G174747–01
22	WCI G174747-08
23	TUBE, DRAIN
24	RING, SEAL (NON-ILLUSTRATED)
25A	PIN PUSH SPOUT (2)
25	SPOUT DRAIN TUBE
26	WCI G490004-02
27	LEG-LEVELING (2)
28	NUT, ANCHOR (2)
29	WCI G166912
30	HINGE-BRACKET-BOTTOM
31	SHIM, HINGE
31A	TAPPING, PLATE (2)
32	5303001321 Frigidaire Refrigerator Lower Hinge Pin
33	WCI G103903
34	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
35	BRACKET, HINGE CENTER
35A	SCREW, BRACKET MOUNTING (4)
35B	WASHER (2)
36	WCI G142220
37	CORNER TRIM-AVOCADO
37	WCI 3202340
37	WCI 3202339
37	WCI 3202338
37	WCI 3202336
38A	241710601 Frigidaire Refrigerator Screw
38	BRACKET, TOP HINGE
39	WCI G183861
40	COVER, TOP HINGE, ALMOND
40	COVER, TOP HINGE, AVOCADO
40	COVER HINGE, COFFEE
40	COVER HINGE, WHEAT
40	COVER HINGE, WHITE
41	5304509705 Frigidaire Refrigerator Grommet
