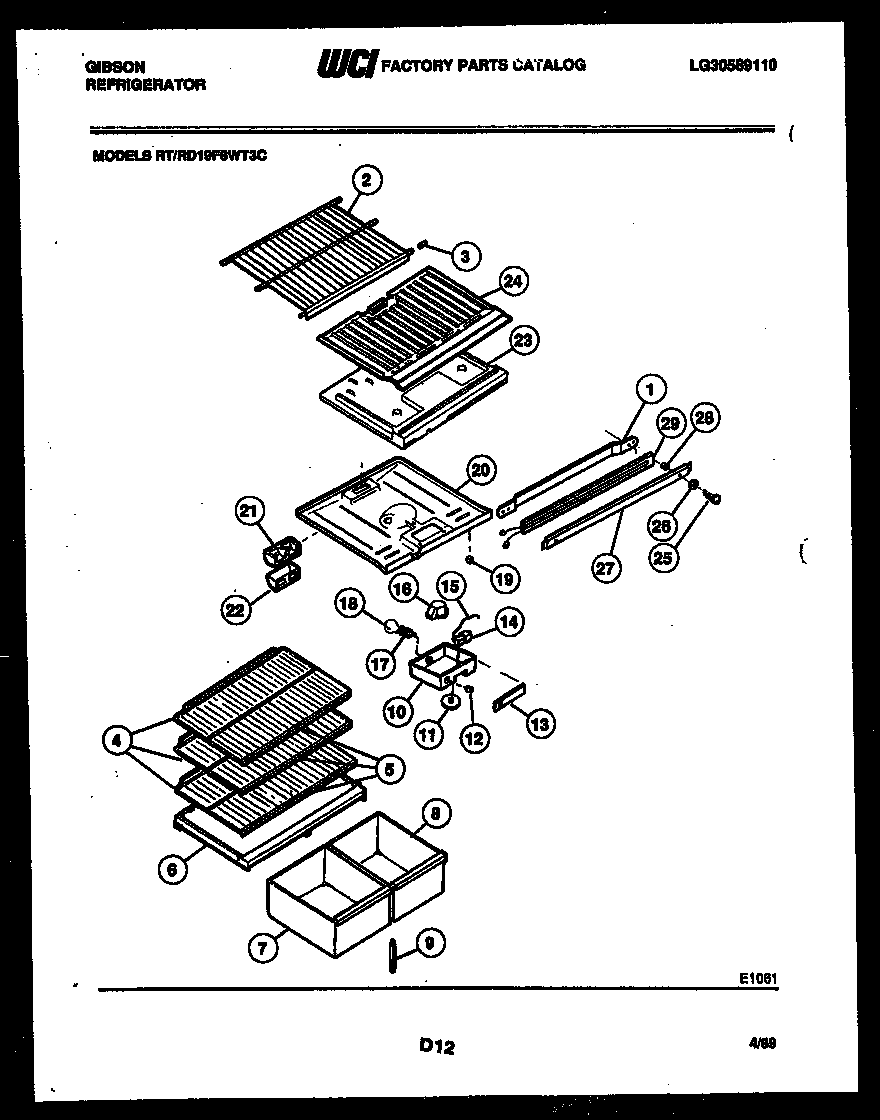

RD19F8WT3C 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	STRAP, MULLION MOUNTING
2	WCI G184572-04
3	END CAP-SHELF,PROTECTOR
4	WCI G181153-06
5	WCI G172410-06
6	COVER, CRISPER
7	PAN-SMALL LS
8	WCI G176639-23
9	SUPPORT, CRISPER COVER
10A	5304455650 Frigidaire Refrigerator Screw
10	WCI G176722-03
11	KNOB
12	WCI G178402-02
13	WCI G188379-01
14	WCI 3200810
14A	WCI G107080
15	TUBE
16A	5304455649 Frigidaire Refrigerator Screw
16	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17	SOCKET LIGHT
18	316538904 Frigidaire Oven Lamp Light
19	5309918806 Frigidaire Refrigerator Light Switch Door
20A	SCREW (5)
20	TOP-REFRIGERATOR
21	DEFLECTOR AIR
22	WCI G162178
23A	HARNESS, WIRING
23	DIVIDER, CENTER
24A	PAD, FOAM (2)
24	BOTTOM, FC
25	SCREW, BRACKET MOUNTING (4)
26	WASHER (2)
27	WCI 3200370
27	WCI 3200369
27	WCI 3200368
27	MULLION-AVOC
27	WCI 3200366
28	SPACER (NON-ILLUSTRATED)
29	WCI 3018916
