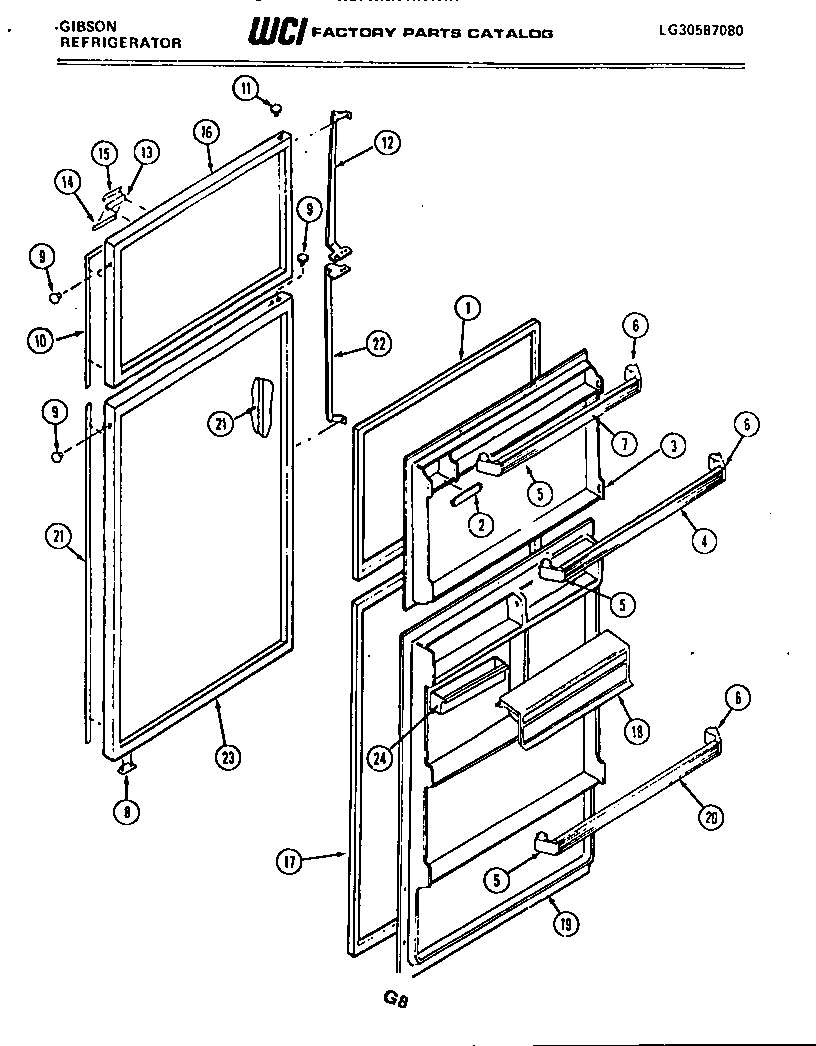

RD19F9DU3A 02 – DOOR PARTSadmin2025-04-26T08:42:24+00:00RD19F9DU3A 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *02444 | WCI G168981-11 |
| 1 | GASKET |
| 2 | RACK, JUICE CAN |
| 3 | PANEL, INNER |
| 5 | SUPPORT, RACK, LH (PC) (2) |
| 6 | SUPPORT, RACK, RH, (PC) (2) |
| 7 | WCI G161019-61 |
| 8 | STOP, DOOR. PC & FC (2) |
| 9 | WCI G162977-11 |
| 10 | WCI G167404-12 |
| 11 | WCI G169332-11 |
| 12 | HANDLE ASSEMBLY |
| 13 | NAMEPLATE |
| 14 | LABEL, LOWER |
| 15 | LABEL, UPPER |
| 16 | PANEL-FREEZER-ALMOND |
| 17 | GASKET |
| 18 | DOOR, DAIRY (2) |
| 19A | 5304455651 Frigidaire Refrigerator Screw |
| 19 | WCI G187537-02 |
| 20 | RACK, DOOR (2) |
| 20A | WCI G187179-01 |
| 21 | TRIM (2) |
| 22 | HANDLE ASSEMBLY |
| 22A | WCI G185566 |
| 23 | WCI G188239-11 |
| 23A | BEARING, HINGE (3) |
| 24 | TRAY, UTILITY |
