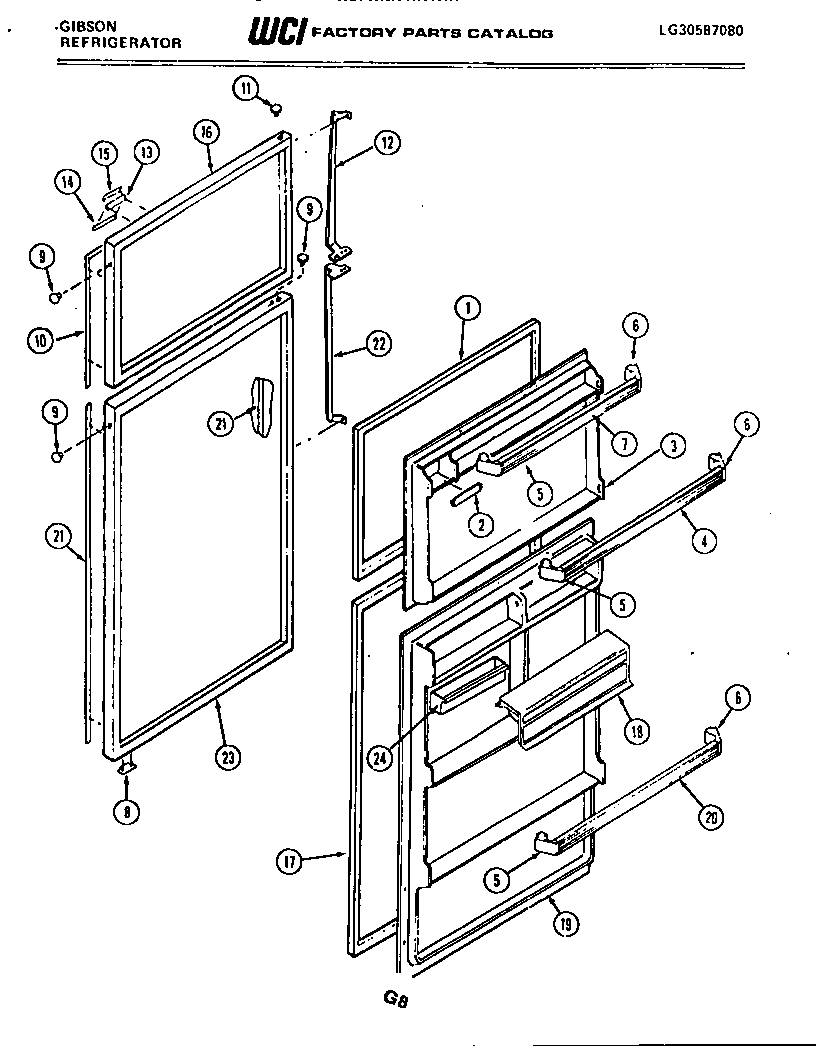

RD19F9EU3A 02 – DOOR PARTS

Products

Position	Product
*02443	WCI G168981-10
1	GASKET
2	RACK, JUICE CAN
3	PANEL, INNER
5	SUPPORT, RACK, LH (PC) (2)
6	SUPPORT, RACK, RH, (PC) (2)
7	WCI G161019-61
8	STOP, DOOR. PC & FC (2)
9	WCI G162977-10
10	WCI G167404-12
11	WCI G169332-10
12	HANDLE ASSEMBLY
13	NAMEPLATE
14	LABEL, LOWER
15	LABEL, UPPER
16	WCI G189031-10
17	GASKET
18	DOOR, DAIRY (2)
19A	5304455651 Frigidaire Refrigerator Screw
19	WCI G187537-02
20	RACK, DOOR (2)
20A	WCI G187179-01
21	TRIM (2)
22A	WCI G185566
22	HANDLE ASSEMBLY
23	WCI G188239-10
23A	BEARING, HINGE (3)
24	TRAY, UTILITY
