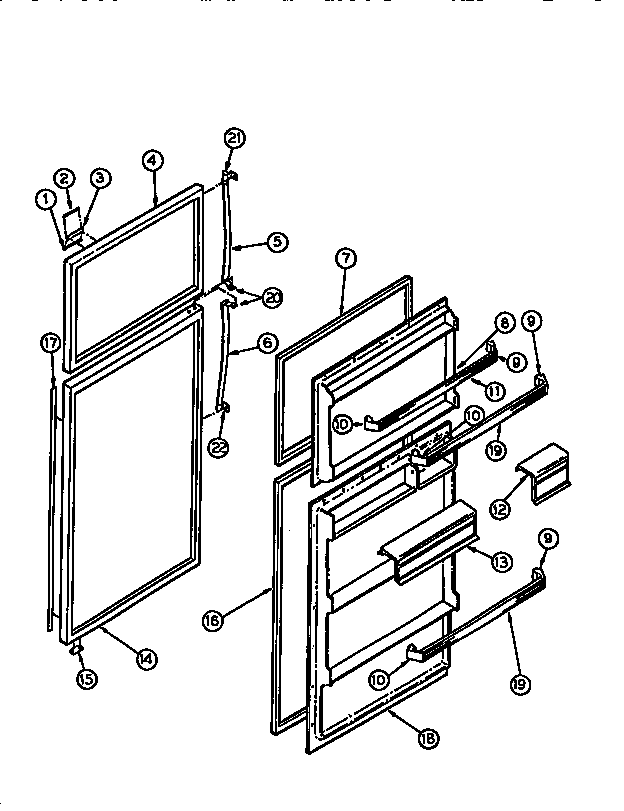

RD19F9WT3A 07 – DOOR PARTS

Products

Position	Product
*24053	240494001 Frigidaire Refrigerator Plug Button
*24052	WCI G168981-01
*24054	WCI G169332-01
1	LABEL, LOWER
2	WCI G175118-02
3A	TAPE – FRAME
3	NAMEPLATE
4	PANEL, OUTER, WHITE
6	WCI G170495-24
6A	WCI G185566
7	GASKET
8	WCI G184903-01
9	SUPPORT RS (4)
10	SUPPORT LS (4)
11	WCI G162887-23
13	DAIRY DOOR (2)
14	REFRIGERATOR DOOR-WHITE
14A	BEARING, HINGE (3)
15	STOP, DOOR. PC & FC (2)
16	GASKET
17	TRIM-REFRIG DOOR
18A	5304455651 Frigidaire Refrigerator Screw
18	PANEL-INNER
19	RACK-DOOR (2)
20	WCI G170507-01
21	WCI G179800
22	WCI G179801
