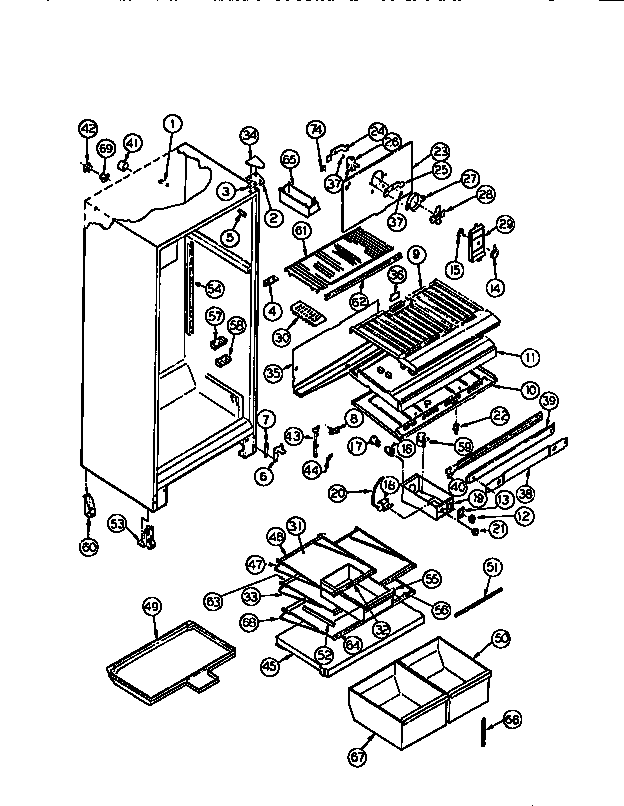

RD19F9WT3A 10 – CABINET PARTS
Written by
in
RD19F9WT3A 10 – CABINET PARTS
Products
| Position | Product |
|---|---|
| *24047 | WCI G183100-54 |
| *24046 | BOOK, INSTRUCTION |
| *24044 | WCI G174813 |
| *24043 | BUTTON-DECORATIVE |
| *24040 | WCI G183584 |
| *24048 | WCI G490004-02 |
| *24042 | BUTTON, PLUG, ICE MAKER AND FREEZER SHELF MOUNTING HOLES |
| *24045 | BUTTON, PLUG, LINER (2) |
| *24041 | SERVICE DATA SHEET |
| 61A | WCI G166495-01 |
| 61 | SHELF |
| 63A | TRIM-REAR |
| 63 | TRIM, SHELF, REAR (3) |
| 64 | TRIM |
| 65 | WCI G163022-03 |
| 66 | SUPPORT, CRISPER COVER |
| 67 | PAN-CRISPER LH |
| 68 | FRAME-FULL SHELF |
| 69 | WCI G174733 |
| 74 | WCI G164571 |
| 74A | 5304455651 Frigidaire Refrigerator Screw |
