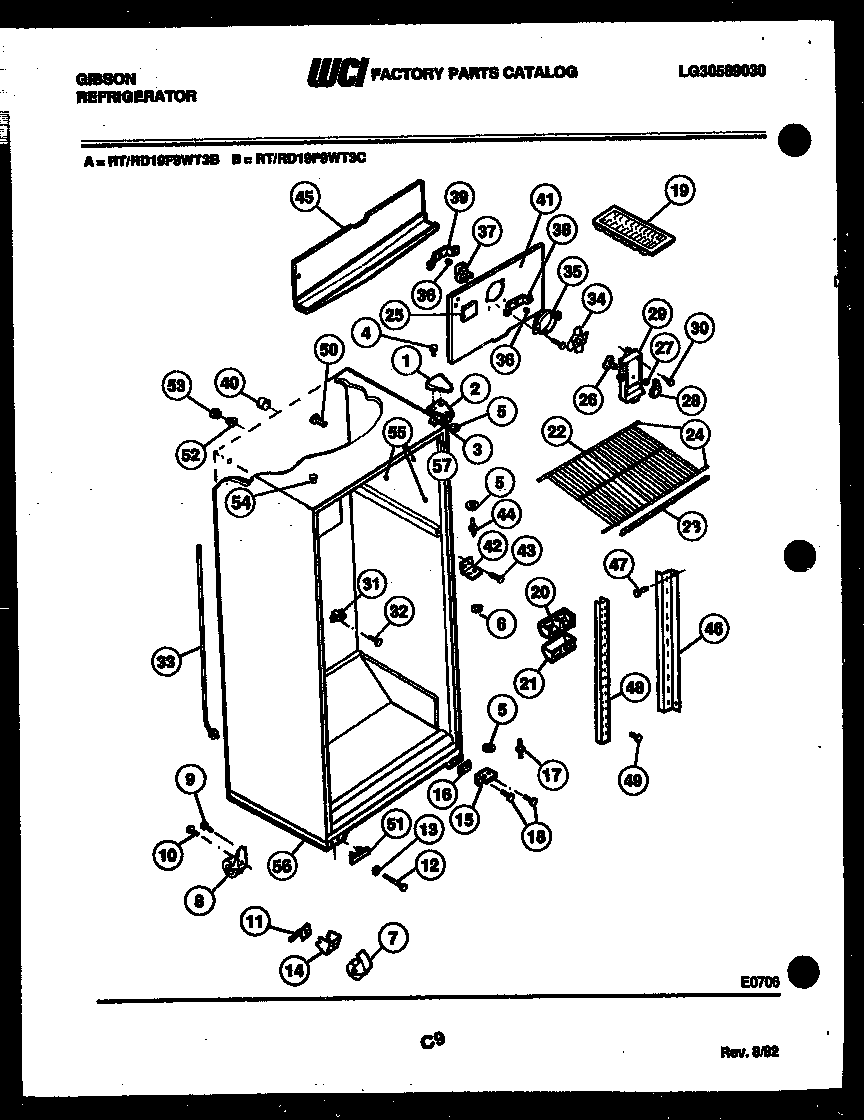

RD19F9WT3B 03 – CABINET PARTS

Products

PositionProduct
*17597TAPPING, PLATE (2)
*17597BUTTON, LINER
*17597BUTTON, PLUG, LINER (2)
*17597NUT, ANCHOR (2)
1COVER HINGE, COFFEE
1WCI G183558-1
1COVER HINGE, WHEAT
1COVER HINGE, WHITE
1COVER, TOP HINGE, AVOCADO
2BRACKET, TOP HINGE
3WCI G183861
4241710601 Frigidaire Refrigerator Screw
5WCI G103903
6WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
7ROLLER FRONT, ADJUSTABLE (2)
8ROLLER, REAR (2)
95304455651 Frigidaire Refrigerator Screw
10BOLT ROLLER (2)
11SPRING-ROLLER (2)
12BOLT-ROLLER (2)
13WASHER
14SUPPORT, ROLLER (2)
15BRACKET-HINGE
16SHIM, HINGE
175303001321 Frigidaire Refrigerator Lower Hinge Pin
19215667501 Frigidaire Refrigerator Ice Tray Primary
20DEFLECTOR AIR
21WCI G162178
22SHELF
23TRIM
24WCI G166495-01
25PLUG, DECORATIVE
26DAMPER FAN COVER
27NUT, DAMPER MOUNTING
28KNOB
29WCI G163061-76
305304455650 Frigidaire Refrigerator Screw
31SPOUT DRAIN TUBE
32PIN PUSH SPOUT (2)
33TUBE, DRAIN
33ARING, SEAL (NON-ILLUSTRATED)
345308000010 Frigidaire Refrigerator Evaporator Fan Blade
35RING, FAN ORIFICE
36G187559 Frigidaire Refrigerator Bushing
375300158289 Frigidaire Evaporator Fan Motor
38WCI G185302
39WCI G185303
40TUBE, INSULATION (2)
41ANUT, ORIFICE (2)
41WCI G177529
42BRACKET, HINGE CENTER
42AWASHER (2)
43SCREW, BRACKET MOUNTING (4)
44WCI G142220
45WCI G177534
46CHANNEL, SHELF (2)
475304455852 Frigidaire Refrigerator Screw
48WCI G189341
49SCREW (3) (NON-ILLUSTRATED)
50WCI G163669
51WCI G166912
52WCI G174733
53WCI G174734
54WCI G174747-09
54WCI G174747-10
54WCI G174747-11
54WCI G174747-08
54WCI G174747–01
55A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
555304509705 Frigidaire Refrigerator Grommet
56WCI G490004-02
57TRIM-CORNER, ALMOND (4)
57WCI G179684-01
57WCI G179684-09
57WCI G179684-10
57TRIM CORNER (4), AVOCADO
