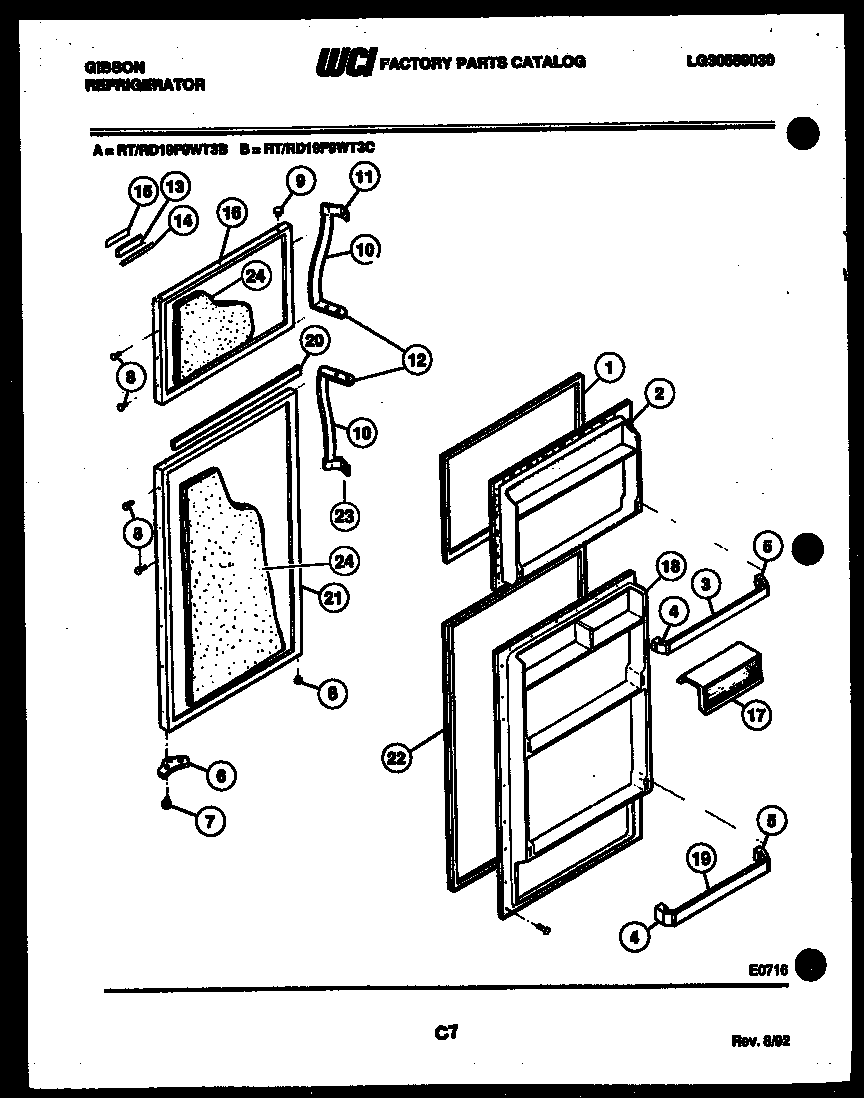

RD19F9WT3C 02 – DOOR PARTS

Products

Position	Product
1	GASKET-FREEZER
2A	5304455651 Frigidaire Refrigerator Screw
2	WCI G185626-01
4	SUPPORT LS (4)
5	SUPPORT RS (4)
6	STOP, DOOR. PC & FC (2)
8A	LEG-LEVELING (2)
8	WCI G162977-10
8	WCI G162977-09
8	WCI G162977-08
8	240494001 Frigidaire Refrigerator Plug Button
8	WCI G162977-11
9	WCI G169332-09
9	WCI G169332-10
9	WCI G169332-08
9	WCI G169332-01
9	WCI G160332-11
10	WCI 3200545
11	WCI G179800
12A	WCI G185566
12	WCI G187329-01
13	NAMEPLATE
14	LABEL-LOWER
15	LABEL, UPPER
16	PANEL, OUTER, AVOCADO
16	PANEL, OUTER, WHITE
16	PANEL, OUTER, WHEAT
16	WCI G178690-10
16	PANEL, OUTER, ALMOND
17	DAIRY DOOR (2)
18	PANEL-INNER
19	RACK-DOOR (2)
20	TRIM-REFRIG DOOR
21A	BEARING, HINGE (3)
21	REFRIGERATOR DOOR-ALMOND
21	REFRIGERATOR DOOR-COFFEE
21	REFRIGERATOR DOOR-AVOCADO
21	REFRIGERATOR DOOR-WHEAT
21	REFRIGERATOR DOOR-WHITE
22	GASKET
22	KIT-DOOR CONV, AVOCADO
22	WCI G168981-10
22	WCI G168981-09
22A	WCI G168981-01
22	WCI G168981-11
23	WCI G179801
24	INSULATION-BULK
