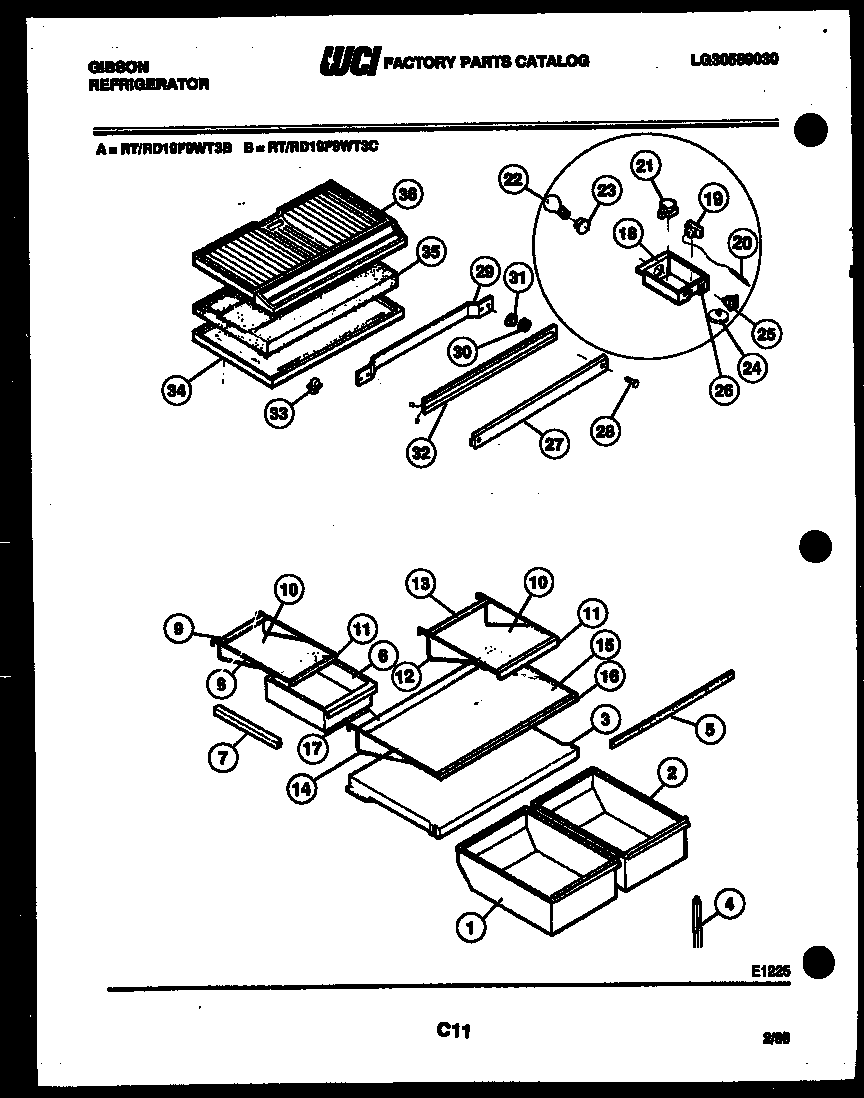

RD19F9WT3C 04 – SHELVES AND SUPPORTSadmin2025-04-26T08:46:35+00:00RD19F9WT3C 04 – SHELVES AND SUPPORTS
Products
| Position | Product |
|---|
| *17604 | HARNESS, WIRING |
| 1 | PAN-CRISPER LH |
| 2 | PAN-CRISPER RH |
| 3 | COVER, CRISPER |
| 4 | SUPPORT, CRISPER COVER |
| 5 | GASKET, COVER |
| 6 | MEAT PAN |
| 7 | HANGAR, LEFT SIDE |
| 7A | HANGAR, RIGHT SIDE |
| 7B | SCREW-HANGER (2) (NON-ILLUSTRATED) |
| 8 | WCI G187218-05 |
| 9 | TRIM, SHELF, REAR, MEAT KEEPER |
| 10 | WCI G171654-51 |
| 11 | TRIM (3) |
| 12 | WCI G171608-14 |
| 13 | TRIM, SHELF, REAR (3) |
| 14 | FRAME-FULL SHELF |
| 15 | SHELF GLASS-FULL |
| 16A | CLIP, SHELF (8) |
| 16 | TRIM |
| 17 | TRIM-REAR |
| 18 | WCI G174765-03 |
| 18 | 5304455650 Frigidaire Refrigerator Screw |
| 19A | WCI G107080 |
| 19 | WCI 3200810 |
| 20 | TUBE |
| 21A | 5304455649 Frigidaire Refrigerator Screw |
| 21 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 22 | 316538904 Frigidaire Oven Lamp Light |
| 23 | SOCKET LIGHT |
| 24 | KNOB-TEMP CONTROL |
| 25 | SWITCH SLIDE |
| 26 | LABEL - CONTROL BOX |
| 27 | WCI G180373-10 |
| 27 | WCI G180373-08 |
| 27 | WCI G180373-11 |
| 27 | MULLION, WHITE |
| 27 | WCI G180373-09 |
| 28 | SCREW, BRACKET MOUNTING (4) |
| 29 | STRAP, MULLION MOUNTING |
| 30 | WASHER (2) |
| 31 | SPACER, MULLION (2) |
| 32 | WCI G177254 |
| 33 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 34A | SCREW (5) |
| 34 | TOP-REFRIGERATOR |
| 35 | DIVIDER, CENTER |
| 36 | BOTTOM, FC |
