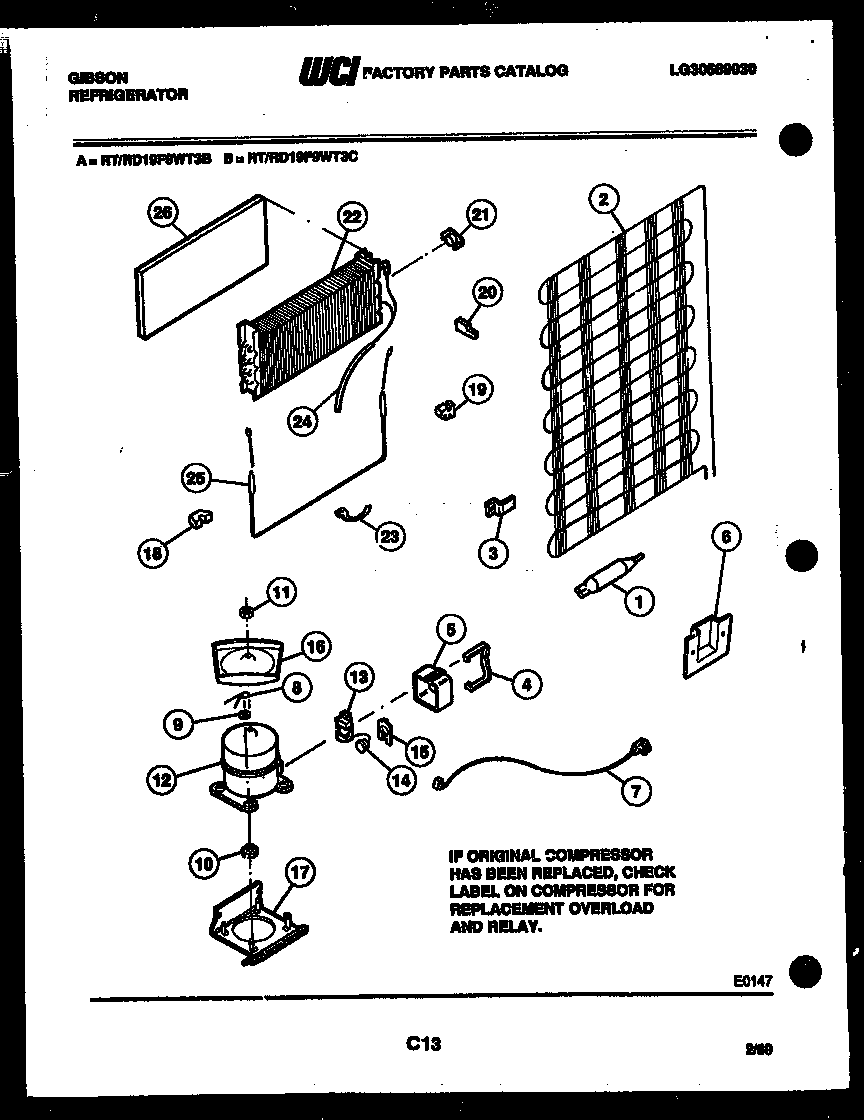

RD19F9WT3C 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*17611	HARNESS-COMPRESSOR
*17611	HOT TUBE REPAIR KIT
*17611	PAN RETAINER KIT-SERVICE
1	5303305677 Frigidaire Replacement Filter Dryer Filters
2	WCI G163133
3	BRACKET-CONDENSER MOUNTING (4)
4	STRAP-BALE
5	WCI 08016583
6	WCI G183584
7	CORD, SERVICE
8	CLIP, COMPRESSOR MOUNTING (4)
9	WCI G168120
10	218513300 Frigidaire Refrigerator Compressor Mount Grommet
11	NUT, LOCK
12	COMPRESSOR
13A	RELAY-ORIGINAL
14	WCI 3201563
16	DEFROST PAN-ORIGINAL COMPRESSOR
16A	DEFROST PAN & NUT
17	PLATE
18	BLOCK, LEFT SIDE
19	BLOCK, EVAPORATOR, RH
20	PLUG, EVAPORATOR INSULATION BLOCK, R H
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	EVAPORATOR
23	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
24	HEAT, EXCHANGE
25	5317842502 Frigidaire Defrost Heater
26	INSULATOR
