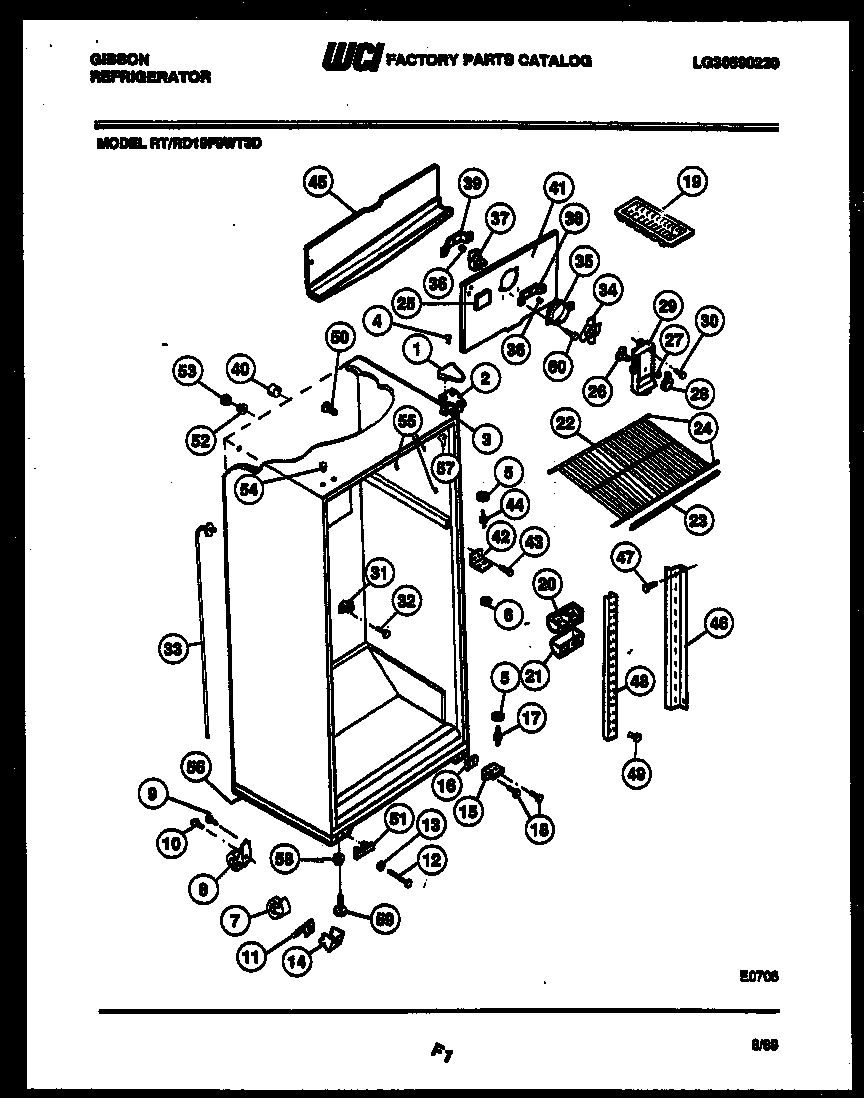

RD19F9WT3D 03 – CABINET PARTSadmin2025-04-26T08:46:54+00:00RD19F9WT3D 03 – CABINET PARTS
Products
| Position | Product |
|---|
| *32543 | PLUG, BUTTON, CABINET LINER (NI) |
| *32543 | TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED) |
| 1 | WCI 5303001666 |
| 1 | COVER-UPPER HINGE, WHITE |
| 1 | COVER-HINGE-AVOCADO |
| 1 | COVER - HINGE-WHEAT |
| 1 | BRACKET-UPPER HINGE |
| 2 | WCI 5308012743 |
| 3 | SHIM - UPPER HINGE |
| 4 | WCI 5303001379 |
| 5 | WASHER, .34 X .62 X .05, NYLON |
| 6 | WCI 5308000186 |
| 7 | WCI 5308009760 |
| 8 | WCI 5308009773 |
| 9 | 5304455651 Frigidaire Refrigerator Screw |
| 10 | BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2) |
| 11 | WCI 5308009790 |
| 12 | BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED) |
| 13 | WCI 5308011326 |
| 14 | SUPPORT, BASE (2) |
| 15 | HINGE BRACKET - BOTTOM |
| 16 | SHIM-LOWER HINGE |
| 17 | 5303001321 Frigidaire Refrigerator Lower Hinge Pin |
| 18 | 241710601 Frigidaire Refrigerator Screw |
| 19 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 20 | DEFLECTOR-AIR |
| 21 | COVER - AIR DEFLECTOR |
| 22 | WCI 5303211425 |
| 23 | WCI 5303211426 |
| 24 | END CAP-SHELF,PROTECTOR |
| 25 | BUTTON - DECORATIVE PLUG |
| 26 | DAMPER-FAN COVER |
| 27 | Nut,push-on |
| 28 | WCI 5308011763 |
| 29A | WCI 5300186232 |
| 29 | WCI 5316306176 |
| 30 | 5304455650 Frigidaire Refrigerator Screw |
| 31 | WCI 5308000056 |
| 32 | WCI 5303001361 |
| 33A | WCI 5303207353 |
| 33 | WCI 5303210377 |
| 34 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 35 | RING-FAN ORIFICE |
| 36 | G187559 Frigidaire Refrigerator Bushing |
| 37 | 5300158289 Frigidaire Evaporator Fan Motor |
| 38 | WCI 5303001226 |
| 39B | WCI 5308000107 |
| 39 | WCI 5303001227 |
| 40 | TUBE-RUBBER |
| 41 | WCI 5308009771 |
| 41B | 5303208309 Frigidaire Refrigerator Plug Hole |
| 41A | NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED) |
| 42 | BRACKET-CTR HINGE |
| 43 | WCI 5308012258 |
| 44 | WCI 5308000184 |
| 45 | WCI 5303001370 |
| 46 | CHANNEL, RH & LH |
| 47 | 5304455852 Frigidaire Refrigerator Screw |
| 48 | WCI 5303015409 |
| 49 | WCI 5308016568 |
| 50 | SUPPORT-COIL COVER |
| 51 | COVER-HOLE, LOWER HINGE |
| 52 | WCI 5303001286 |
| 53 | WCI 5303001287 |
| 54 | BUTTON-HINGE-WHEAT |
| 54 | BUTTON-HINGE-AVOCADO |
| 54 | PLUG, COFFEE |
| 54 | PLUG-BUTTON, ALMOND, UPR HINGE HOLES |
| 54 | PLUG-BUTTON, WHITE |
| 55A | 5304500407 Frigidaire Refrigerator Shelf Mounting Grommet |
| 55 | 5304509705 Frigidaire Refrigerator Grommet |
| 56 | CABINET BASE |
| 57 | WCI 5303202339 |
| 57 | WCI 5303202338 |
| 57 | TRIM-CABINET CORNER, ALMOND |
| 57 | CORNER |
| 57 | TRIM-CABINET CORNER, WHITE |
| 58 | WCI 5308003584 |
| 59 | WCI 5303200554 |
| 60 | 218843801 Frigidaire Refrigerator Screw |
