RD19F9WT3D 04 – SHELVES AND SUPPORTS

RD19F9WT3D 04 – SHELVES AND SUPPORTS

Written by

in

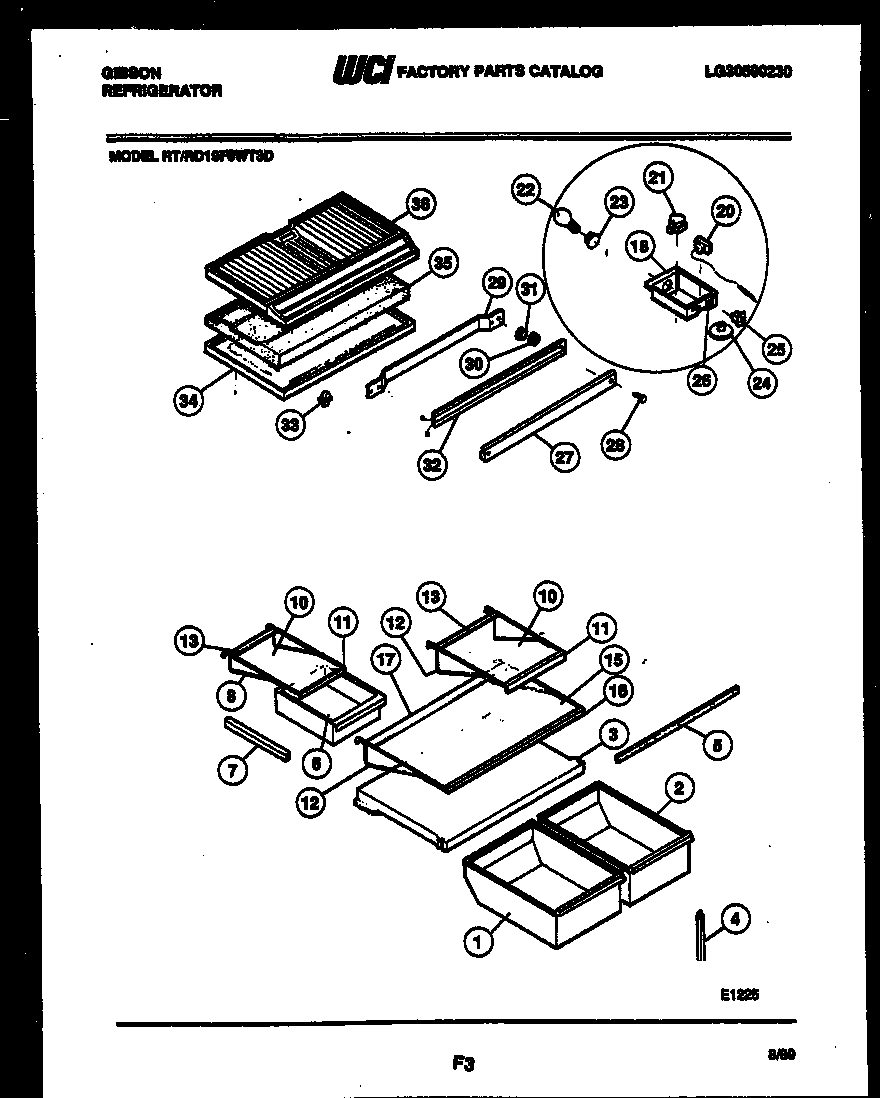

RD19F9WT3D 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*32552HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
1WCI 5349001537
2PAN-CRISPER RH
3WCI 5303001493
4SUPPORT-CRISPER CVR, ADJUSTABLE
5GASKET-COVER
6MEAT PAN
7BWCI 08014528
7AHANGER-PAN RH (NON-ILLUSTRATED)
7HANGER-PAN LH
8WCI 5303210754
10WCI 5303211424
10ARETAINER-GLASS, (3) (NON-ILLUSTRATED)
11WCI 5303211423
12FRAME-SHELF (2)
13WCI 5303211422
14FRAME-FULL SHELF
15AWCI 5303209274
15WCI 5303210989
16WCI 5303210991
17WCI 5303210988
18WCI 5308009730
185304455650 Frigidaire Refrigerator Screw
19WCI 5303200810
20TUBE
21A5304455649 Frigidaire Refrigerator Screw
21215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
22316538904 Frigidaire Oven Lamp Light
23SOCKET-LIGHT/LAMP
24WCI 08006978
25SWITCH-SLIDE
26LABEL – CONTROL BOX
27WCI 5303200367
27WCI 5303200369
27WCI 5303200368
27WCI 5303200370
27WCI 5303200366
28WCI 5308012258
29WCI 5308010008
30WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
31SPACER-MULLION MTG, STEEL
32WCI 5303210351
335309918806 Frigidaire Refrigerator Light Switch Door
34TOP PANEL-REFR, W/SNAP BUSHING
35DIVIDER, STYROFOAM
36WCI 5303211427
