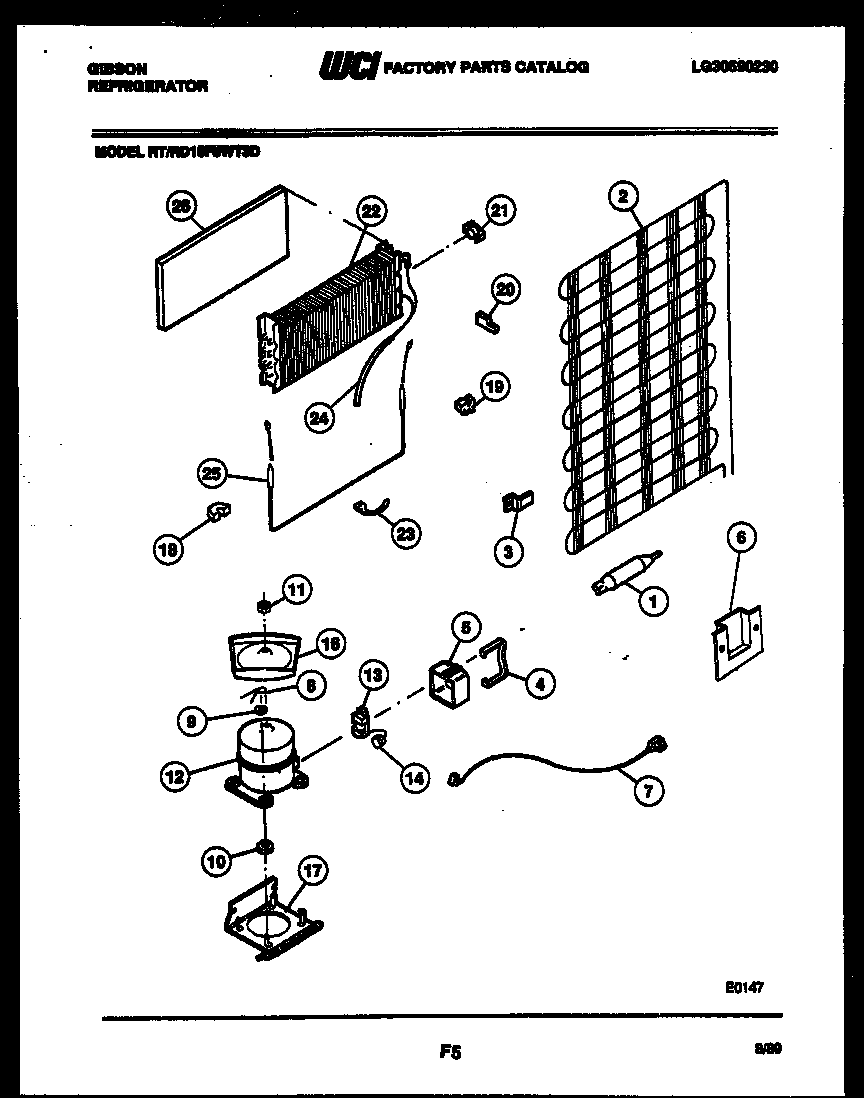

RD19F9WT3D 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*32558SLEEVE-CONNECTOR
*32558HOT TUBE REPAIR KIT-SERVICE
*325585303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*32557WIRING HARNESS, COMPRESSOR,
*325585303001199 Frigidaire Refrigerator Wiring Harness Clamp
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI 5300163133
3BRACKET-MTG (4)
3B5308000039 Frigidaire Refrigerator Screw
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6WCI 5303001197
7CORD-ELECTRIC POWER
8CLIP – COMPRESSOR MTG
9WASHER-COMPR MTG
10218513300 Frigidaire Refrigerator Compressor Mount Grommet
11Nut,lock `1/4-20 ,drain pan mtg
12COMPRESSOR W/ ELECTRICALS-SERVICE
13216594300 Frigidaire Refrigerator Starter
16PAN-DEFROST DRAIN, ORIG/SVCE COMPR
17WCI 5308013663
18INSULATION BLOCK, LH
19INSULATION BLOCK, RH
20INSULATION PLUG, RH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 5300162506
235308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
24B5304455651 Frigidaire Refrigerator Screw
24WCI 5308000728
24A5308000133 Frigidaire Refrigerator Clamp
255317842502 Frigidaire Defrost Heater
26INSULATOR-EVAP, PLASTIC
