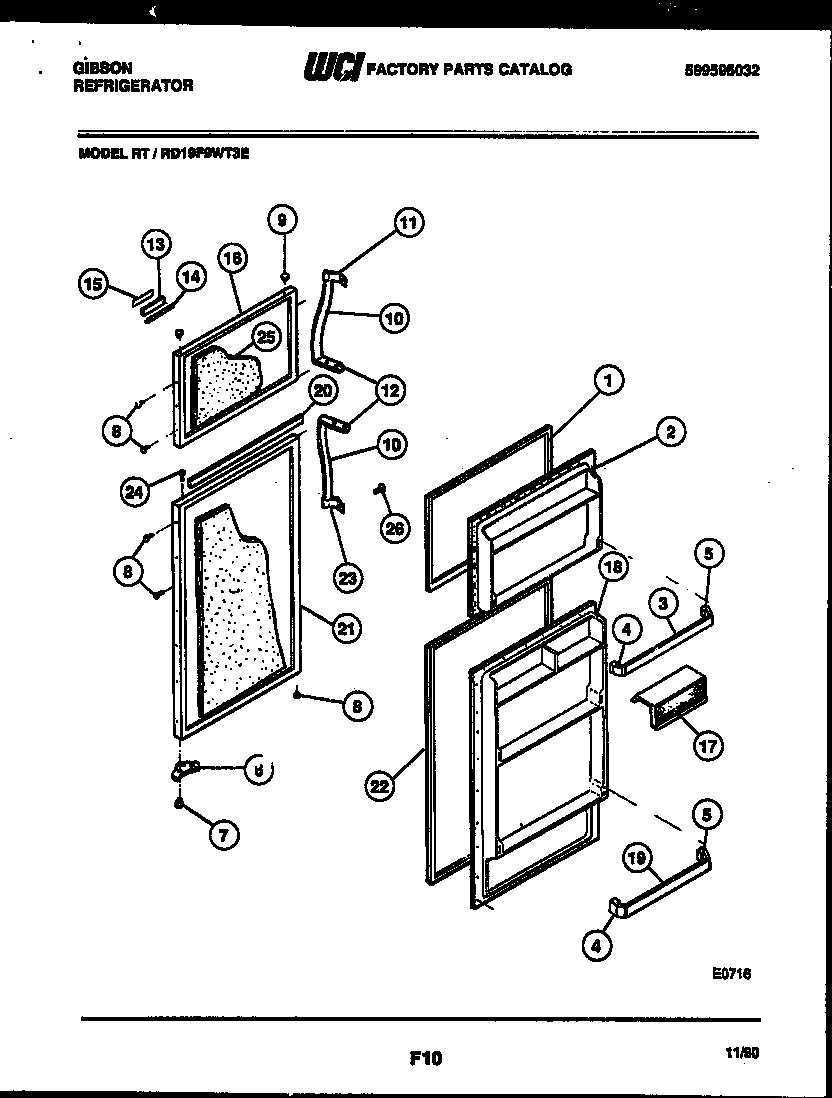

RD19F9WT3E 02 – DOOR PARTS

Products

Position	Product
1	WCI 5303001486
2	WCI 5318490301
3	WCI 5303001493
4	SUPPORT LH (4)
5	SUPPORT RH (4)
6	WCI 5308000255
6A	DOOR STOP, REFR SECTION
8	240494001 Frigidaire Refrigerator Plug Button
8	BUTTON-WHEAT
8	BUTTON PLUG-COFFEE
8	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
8	BUTTON-AVOCADO
9	BUTTON PLUG-COFFEE
9	BUTTON-AVOCADO
9	PLUG-BUTTON, WHITE, HINGE BRG HOLE
9	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
9	BUTTON-WHEAT
10	WCI 5317049526
11	WCI 5303001297
12	WCI 5303001296
13	NAMEPLATE
14	LABEL-LOWER
15	LABEL UPPER
16	PANEL-FRZR-OUTER-COFFEE
16	PANEL-FRZR-OUTER-ALMOND
16	PANEL-FRZR-OUTER-WHEAT
16	PANEL-FRZR-OUTER-AVOCADO
16	PANEL-FRZR-OUTER-WHITE
17	DAIRY DOOR (2)
18	WCI 5318539701
18	218843801 Frigidaire Refrigerator Screw
19	RACK-DOOR (2)
20	TRIM-REFRIG DOOR
21	WCI 5317869408
21	PANEL-OUTER-WHITE
21	WCI 5317869411
21	PANEL-OUTER-COFFEE
21	WCI 5317869409
22	GASKET-REFRIG DOOR
23	BOTTOM HANDLE END CAP
24	BEARING-HINGE
25	INSULATION-BULK (NON-ILLUSTRATED)
26	WCI 5308011745
