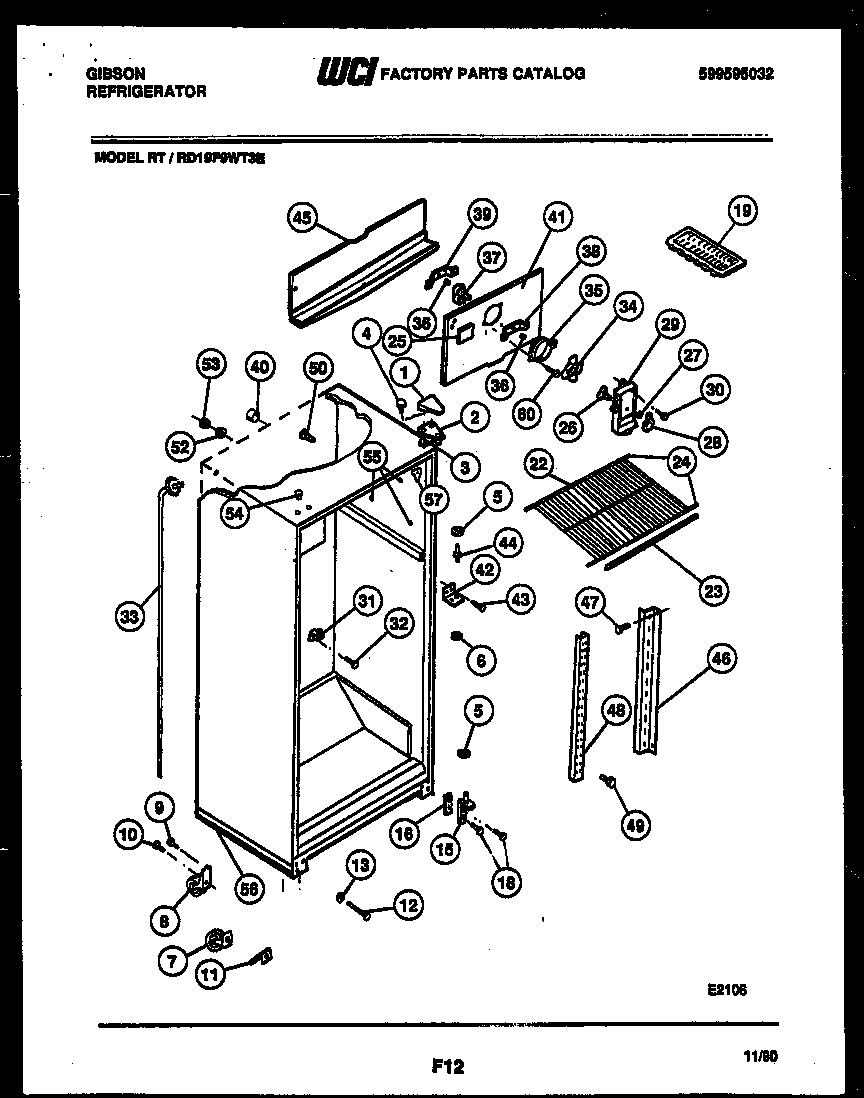

RD19F9WT3E 03 – CABINET PARTS

Products

PositionProduct
*34463PLUG, BUTTON, CABINET LINER (NI)
1COVER-HINGE-AVOCADO
1WCI 5303001666
1COVER – HINGE-WHEAT
1COVER-UPPER HINGE, WHITE
1COVER-UPPER HINGE, ALMOND
2ATAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
2BRACKET-UPPER HINGE
3SHIM – UPPER HINGE
5WASHER, .34 X .62 X .05, NYLON
6WCI 5308000186
7WCI 5303212490
8WCI 5308009773
95304455651 Frigidaire Refrigerator Screw
11WCI 5308009790
12BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
13WCI 5308011326
15BRACKET-LOWER HINGE, W/ HINGE PIN
15ATAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
15BTAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
16WCI 5303212488
18241710601 Frigidaire Refrigerator Screw
19215667501 Frigidaire Refrigerator Ice Tray Primary
22WCI 5303211425
23WCI 5303211426
24END CAP-SHELF,PROTECTOR
25BUTTON – DECORATIVE PLUG
26DAMPER-FAN COVER
27Nut,push-on
28WCI 5308011763
29WCI 5316306176
29AWCI 5300186232
305304455650 Frigidaire Refrigerator Screw
31WCI 5308000056
32WCI 5303001361
33WCI 5303210377
33AWCI 5303207353
345308000010 Frigidaire Refrigerator Evaporator Fan Blade
35RING-FAN ORIFICE
36G187559 Frigidaire Refrigerator Bushing
375300158289 Frigidaire Evaporator Fan Motor
38WCI 5303205118
39BRACKET-MOTOR MTG, REAR
39BWCI 5308000107
40TUBE-RUBBER
41B5303208309 Frigidaire Refrigerator Plug Hole
41ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
41WCI 5308009771
42BRACKET-CTR HINGE
43WCI 5308012258
44WCI 5308000184
45WCI 5303001470
46CHANNEL, RH & LH
475304455852 Frigidaire Refrigerator Screw
48WCI 5303015409
49WCI 5308016568
50SUPPORT-COIL COVER
52WCI 5303001286
53WCI 5303001287
54PLUG-BUTTON, ALMOND, UPR HINGE HOLES
54BUTTON-HINGE-WHEAT
54BUTTON-HINGE-AVOCADO
54PLUG-BUTTON, WHITE
54PLUG, COFFEE
555304509705 Frigidaire Refrigerator Grommet
55A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
56WCI 5303212487
57TRIM-CABINET CORNER, WHITE
57WCI 5303202339
57WCI 5303202338
57CORNER
57TRIM-CABINET CORNER, ALMOND
60218843801 Frigidaire Refrigerator Screw
