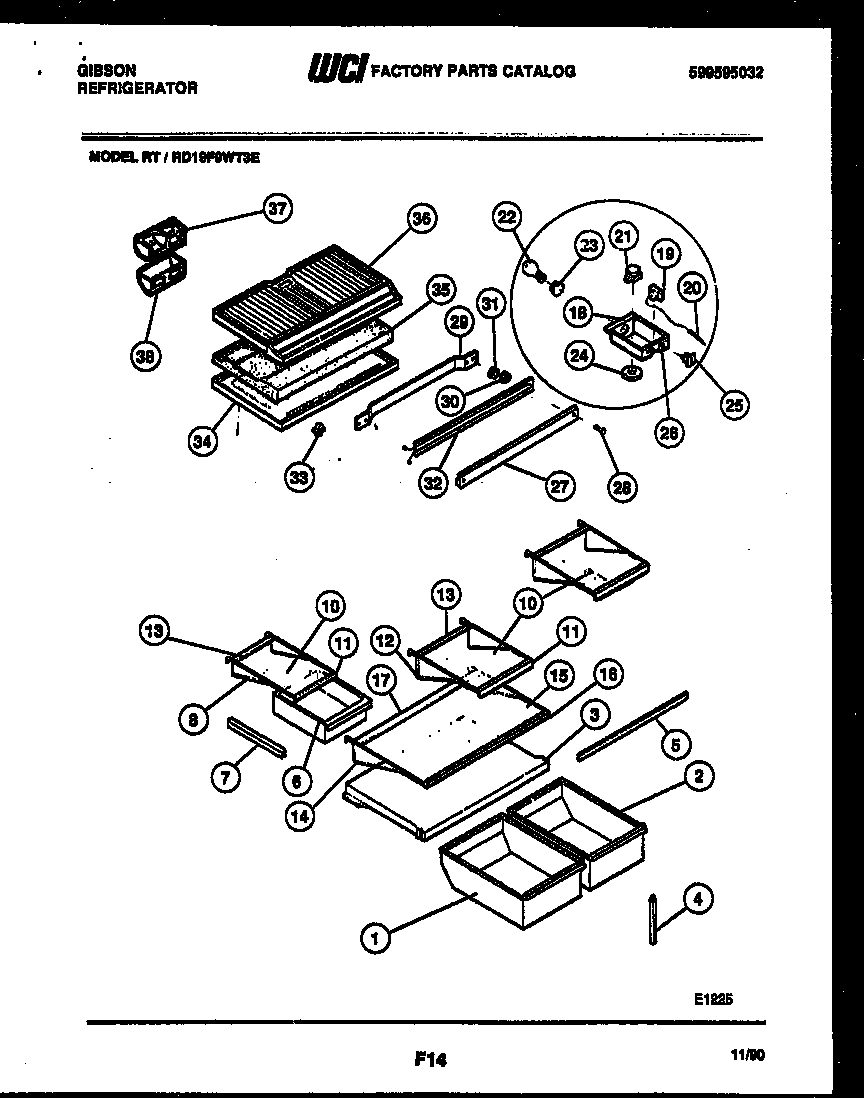

RD19F9WT3E 04 – SHELVES AND SUPPORTS

Products

Position	Product
*34473	HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
*34473	LOCK-SHELF TRIM, REAR
1	WCI 5349001537
2	PAN-CRISPER RH
4	SUPPORT-CRISPER CVR, ADJUSTABLE
5	GASKET-COVER
6	MEAT PAN
7A	HANGER-PAN RH (NON-ILLUSTRATED)
7B	WCI 08014528
7	HANGER-PAN LH
8	WCI 5303210754
10A	RETAINER-GLASS, (3) (NON-ILLUSTRATED)
10	WCI 5303211424
11	WCI 5303211423
12	FRAME-SHELF (2)
13	WCI 5303211422
14	FRAME-FULL SHELF
15	WCI 5303210989
15A	WCI 5303209274
16	WCI 5303210991
17	WCI 5303210988
18	WCI 5308009730
18A	5304455650 Frigidaire Refrigerator Screw
19	WCI 5303200810
20	TUBE
21A	5304455649 Frigidaire Refrigerator Screw
21	215846604 Frigidaire Refrigerator Defrost Timer
22	WCI 530300179
23	SOCKET-LIGHT/LAMP
24	WCI 08006978
25	SWITCH-SLIDE
26	LABEL – CONTROL BOX
27	WCI 5303200370
27	WCI 5303200367
27	WCI 5303200368
27	WCI 5303200369
27	WCI 5303200366
28	WCI 5308012258
29	WCI 5308010008
30	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
31	SPACER-MULLION MTG, STEEL
32	WCI 5303210351
33	5309918806 Frigidaire Refrigerator Light Switch Door
34B	WCI 5303001380
34A	BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
34	TOP PANEL-REFR, W/SNAP BUSHING
35	DIVIDER, STYROFOAM
36	WCI 5303211427
37	DEFLECTOR-AIR
38	COVER – AIR DEFLECTOR
