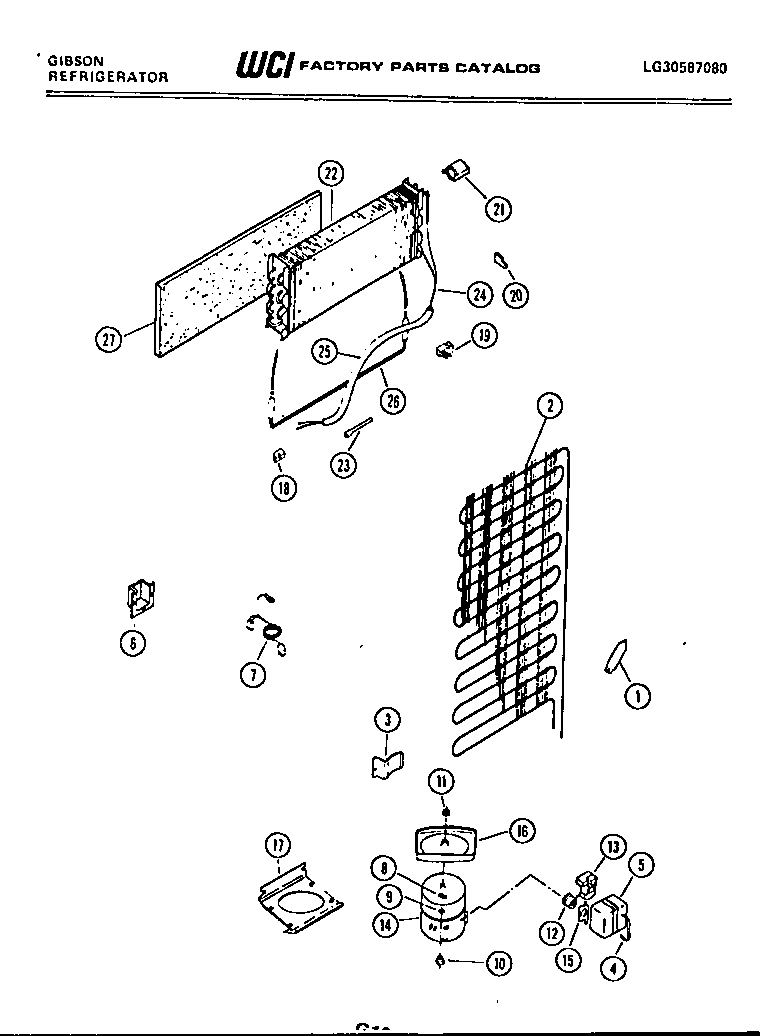

RD19F9WU3B 04 – SYSTEM PARTS

Products

Position	Product
*02448	HARNESS-COMPRESSOR
*02450	WCI G189229-07
*02449	HOT TUBE REPAIR KIT
1	5303305677 Frigidaire Replacement Filter Dryer Filters
2	WCI G162739
3	BRACKET-CONDENSER MOUNTING (4)
4	5303006412 Frigidaire Refrigerator Cover Mounting Strap
6	WCI G183584
7	WCI G162547-01
8	CLIP (4)
9	WASHER, COMPRESSOR MOUNTING (4)
10	218513300 Frigidaire Refrigerator Compressor Mount Grommet
11	NUT, LOCK
12	WCI G185810
13	WCI G182225-11
14	COMPRESSOR WITH ELECTRICALS
15	WCI G186957
16	DEFROST PAN & NUT
17	PLATE
18	BLOCK, LEFT SIDE
19	BLOCK, EVAPORATOR, RH
20	PLUG, EVAPORATOR INSULATION BLOCK, R H
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	EVAPORATOR
23	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
24	HEAT, EXCHANGE
25	WCI G125963-68
26	5317842502 Frigidaire Defrost Heater
27	INSULATOR
