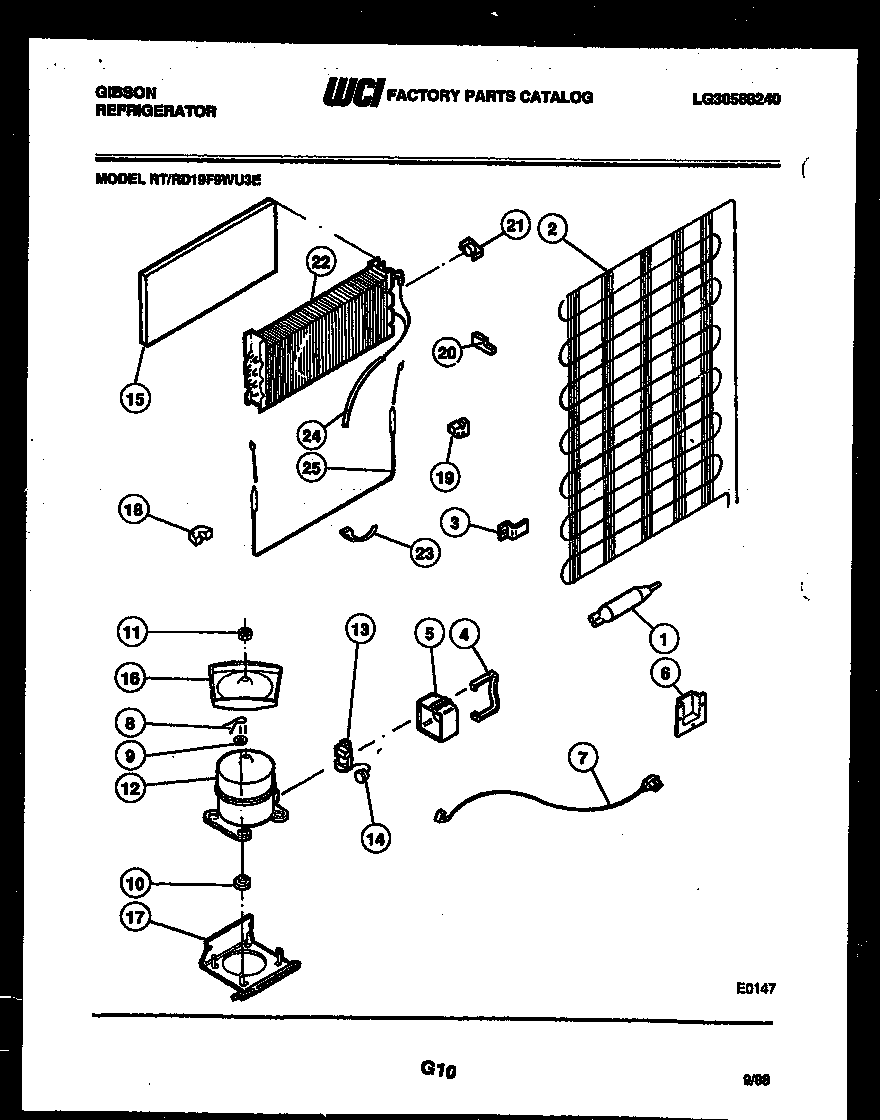

RD19F9WU3E 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*83681HARNESS, WIRING
*83679WCI G167234
*83676HARNESS-COMPRESSOR
*83677HOT TUBE REPAIR KIT
*836785303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI G163133
3BRACKET-CONDENSER MOUNTING (4)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6WCI G183584
7CORD, SERVICE
8CLIP, COMPRESSOR MOUNTING (4)
9WASHER, COMPRESSOR MOUNTING (4)
10218513300 Frigidaire Refrigerator Compressor Mount Grommet
11NUT, LOCK
12COMPRESSOR-SERVICE
13WCI 3007171
14WCI 3007416
15INSULATOR
16DEFROST PAN & NUT
17PLATE
18BLOCK, LEFT SIDE
19BLOCK, EVAPORATOR, RH
20PLUG, EVAPORATOR INSULATION BLOCK, R H
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22EVAPORATOR
235308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
24HEAT, EXCHANGE
255317842502 Frigidaire Defrost Heater
