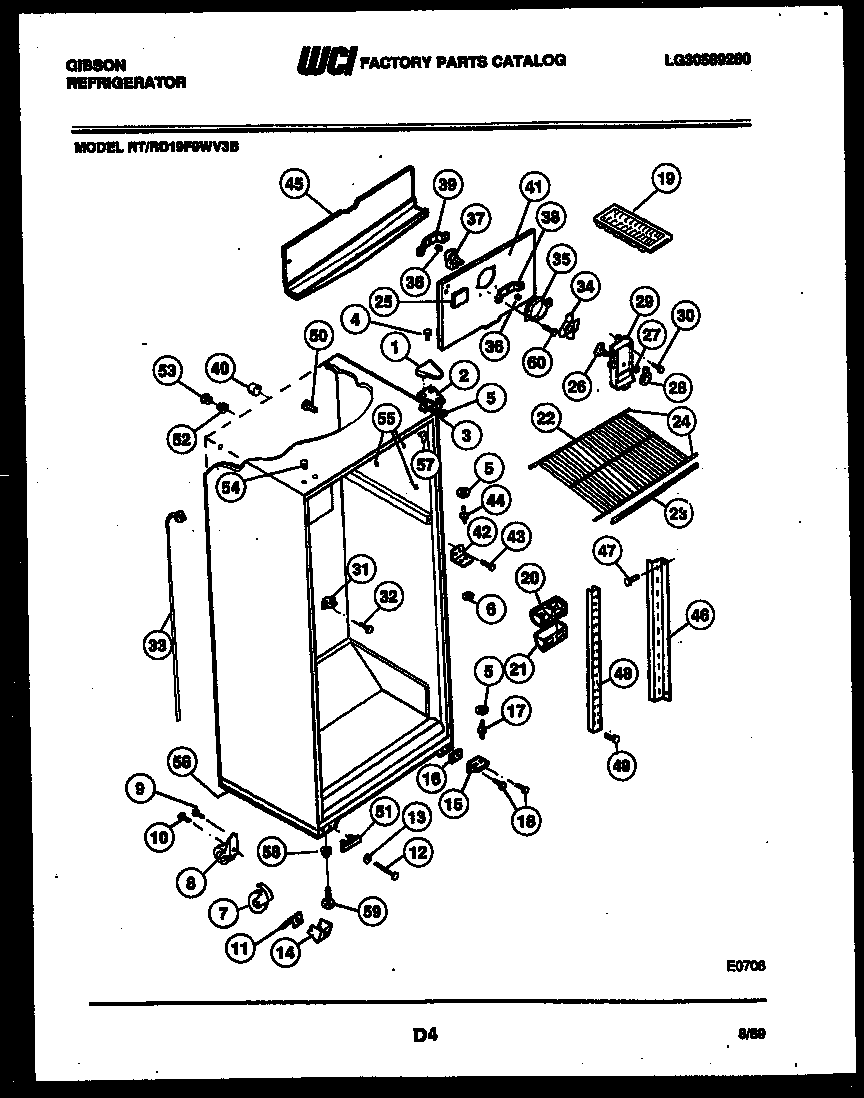

RD19F9WV3B 03 – CABINET PARTS

Products

PositionProduct
*17680BUTTON, LINER
*17681TAPPING, PLATE (2)
1COVER, TOP HINGE, ALMOND
1COVER HINGE, COFFEE
1COVER HINGE, WHITE
1COVER, TOP HINGE, AVOCADO
1COVER HINGE, WHEAT
2BRACKET, TOP HINGE
3WCI G183861
4241710601 Frigidaire Refrigerator Screw
5WCI G103903
6WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
7ROLLER FRONT, ADJUSTABLE (2)
8ROLLER, REAR (2)
10BOLT ROLLER (2)
11SPRING-ROLLER (2)
12BOLT-ROLLER (2)
13WASHER
14SUPPORT, ROLLER (2)
15HINGE-BRACKET-BOTTOM
16SHIM, HINGE
175303001321 Frigidaire Refrigerator Lower Hinge Pin
19215667501 Frigidaire Refrigerator Ice Tray Primary
20DEFLECTOR AIR
21WCI G162178
22SHELF
23TRIM
24END CAP-SHELF,PROTECTOR
25PLUG, DECORATIVE
26DAMPER FAN COVER
27NUT, DAMPER MOUNTING
28KNOB
29ALABEL, COVER
29WCI G163061-76
305304455650 Frigidaire Refrigerator Screw
31SPOUT DRAIN TUBE
32PIN PUSH SPOUT (2)
33TUBE, DRAIN
33ARING, SEAL (NON-ILLUSTRATED)
345308000010 Frigidaire Refrigerator Evaporator Fan Blade
35RING, FAN ORIFICE
36G187559 Frigidaire Refrigerator Bushing
375300158289 Frigidaire Evaporator Fan Motor
38WCI 3205118
39BWCI G164571
39WCI 3205119
40TUBE, INSULATION (2)
41WCI G177529
41ANUT, ORIFICE (2)
41BPLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
42BRACKET, HINGE CENTER
43BSPACER (NON-ILLUSTRATED)
43AWASHER (2)
43SCREW, BRACKET MOUNTING (4)
44WCI G142220
45WCI G177534
46CHANNEL, SHELF (2)
475304455852 Frigidaire Refrigerator Screw
48WCI G189341
49SCREW (3) (NON-ILLUSTRATED)
50WCI G163669
51WCI G166912
52WCI G174733
53WCI G174734
54WCI G174747–01
54WCI G174747-11
54WCI G174747-08
54WCI G174747-09
54WCI G174747-10
555304509705 Frigidaire Refrigerator Grommet
55A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
56WCI G490004-02
57WCI 3202340
57WCI 3202339
57WCI 3202338
57CORNER TRIM-AVOCADO
57WCI 3202336
58NUT, ANCHOR (2)
59LEG-LEVELING (2)
605304455651 Frigidaire Refrigerator Screw
