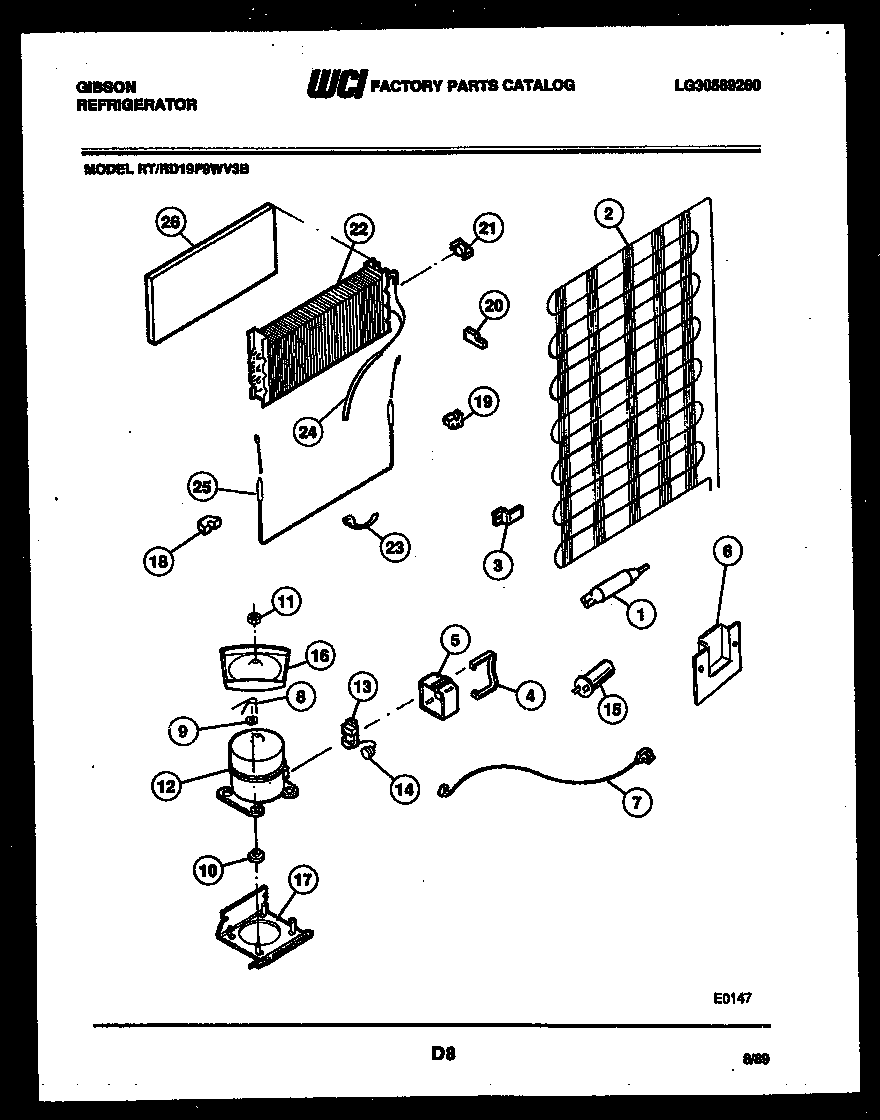

RD19F9WV3B 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*176915303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*17692SLEEVE-CONNECTOR
*17691HARNESS-COMPRESSOR
*176915303001199 Frigidaire Refrigerator Wiring Harness Clamp
*17691HOT TUBE REPAIR KIT
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI G163133
3B5308000039 Frigidaire Refrigerator Screw
3BRACKET-CONDENSER MOUNTING (4)
3AWASHER
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6WCI G183584
7CORD, SERVICE
8CLIP, COMPRESSOR MOUNTING (4)
9WASHER, COMPRESSOR MOUNTING (4)
10218513300 Frigidaire Refrigerator Compressor Mount Grommet
11NUT, LOCK
12WCI 3916004
13WCI 3007173
14WCI 3001713
15CAPACITOR-RUN
16DEFROST PAN & NUT
17PLATE
18BLOCK, LEFT SIDE
19BLOCK, EVAPORATOR, RH
20PLUG, EVAPORATOR INSULATION BLOCK, R H
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22EVAPORATOR
235308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
24A240396801 Frigidaire Refrigerator Tube Clamp
24B5304455651 Frigidaire Refrigerator Screw
24HEAT EXCHANGER
255317842502 Frigidaire Defrost Heater
26INSULATOR
