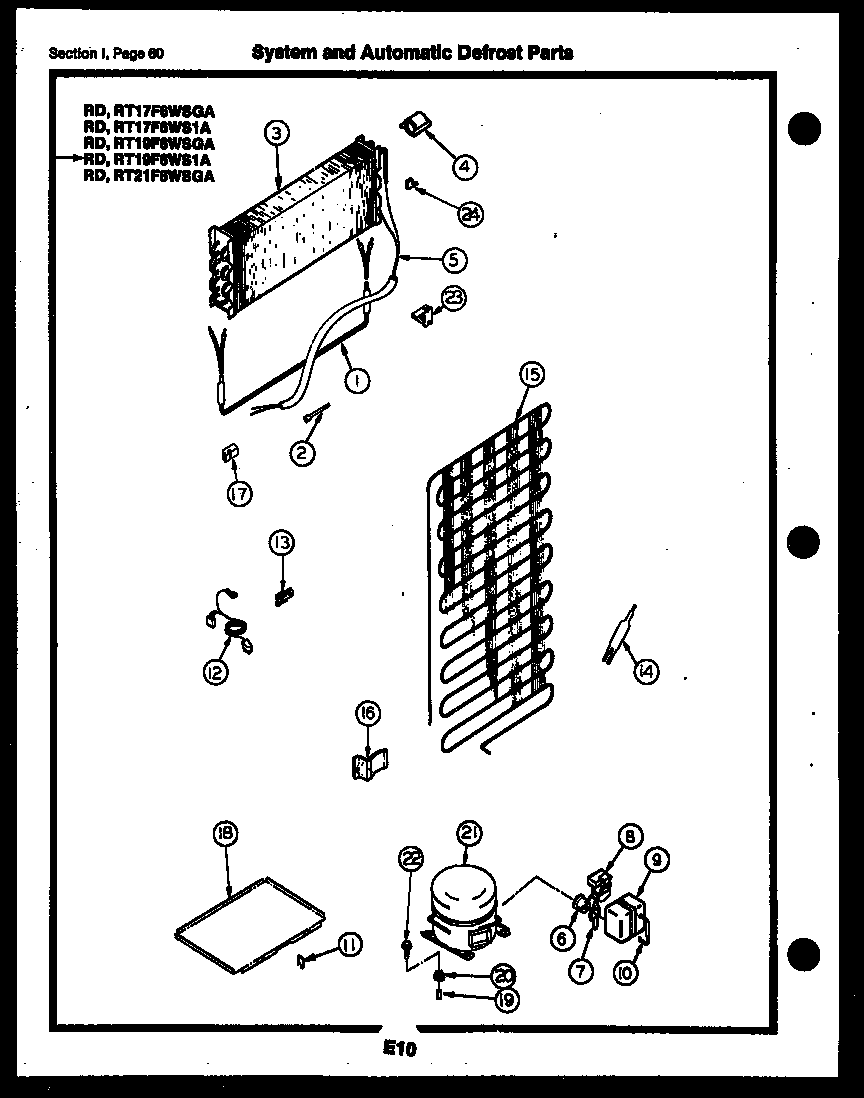

RD21F6WSGA 30 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*22361WCI G176210
15317842502 Frigidaire Defrost Heater
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
3EVAPORATOR
45303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
5WCI G176593
6WCI G166052
7CLIP, OVERLOAD
8RELAY (NON-ILLUSTRATED)
105303006412 Frigidaire Refrigerator Cover Mounting Strap
11BRACKET, DRAIN TUBE
12CORD, SERVICE
13A5304455651 Frigidaire Refrigerator Screw
135303001199 Frigidaire Refrigerator Wiring Harness Clamp
145303305677 Frigidaire Replacement Filter Dryer Filters
15WCI G175408
15WCI G183612
16A5308000039 Frigidaire Refrigerator Screw
16BRACKET, COND. MTG (4)
17WCI G163099
18DEFROST PLATE (NON-ILLUSTRATED)
19SLEEVE COMP MTG (3)
20218513300 Frigidaire Refrigerator Compressor Mount Grommet
21WCI G183613
22SCREW – 1/4-20 (3) COMP. MTG.
23BLOCK, EVAPORATOR, LH
24PLUG – EVAP. INS. L.H.
