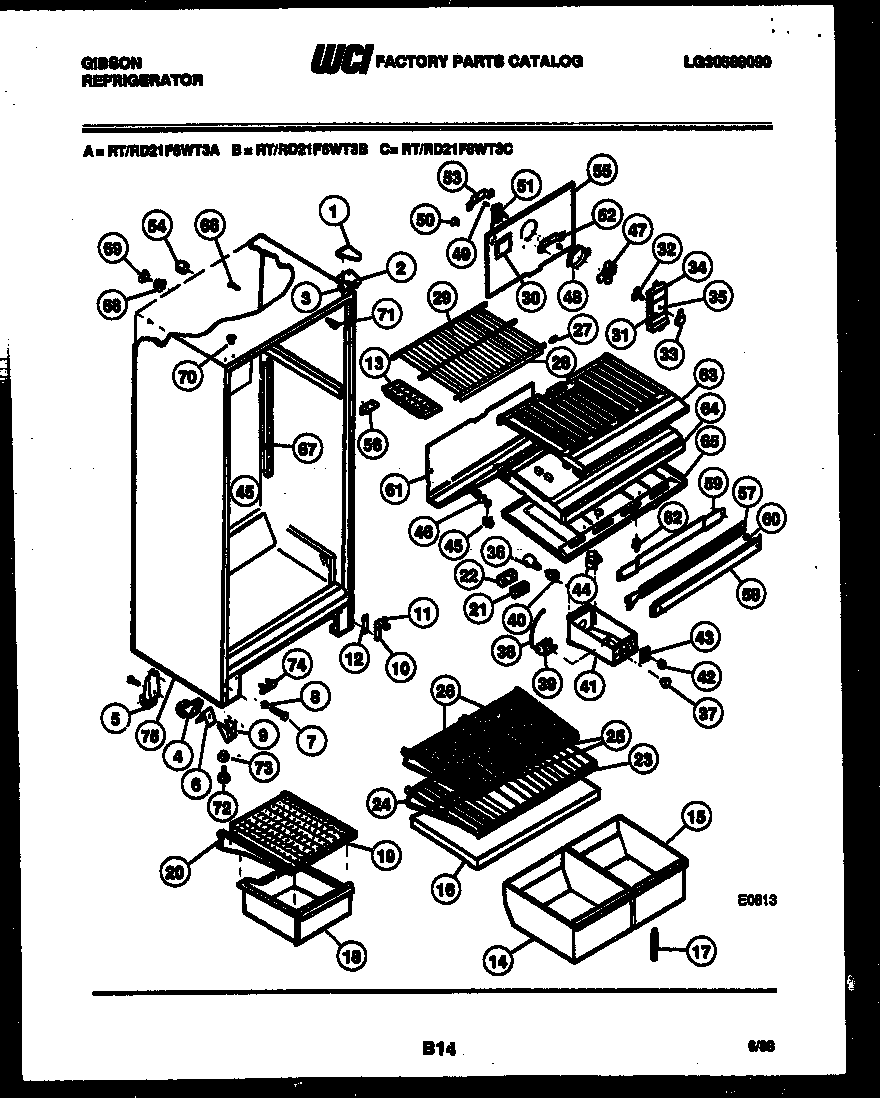

RD21F6WT3C 03 – CABINET PARTS

Products

Position	Product
1	COVER, TOP HINGE, AVOCADO
1	COVER HINGE, WHEAT
1	COVER HINGE, WHITE
1	COVER, TOP HINGE, ALMOND
1	COVER HINGE, COFFEE
2	BRACKET, TOP HINGE
3	WCI G183861
3B	WCI G103903
3A	241710601 Frigidaire Refrigerator Screw
4	ROLLER FRONT, ADJUSTABLE (2)
5A	5304455651 Frigidaire Refrigerator Screw
5	ROLLER, REAR (2)
5B	BOLT ROLLER (2)
6	SPRING-ROLLER (2)
7	BOLT-ROLLER (2)
8	WASHER
9	SUPPORT, ROLLER (2)
10A	BRACKET-HINGE
11	5303001321 Frigidaire Refrigerator Lower Hinge Pin
12	SHIM, HINGE
13	215667501 Frigidaire Refrigerator Ice Tray Primary
14	PAN-CRISPER-LS
15	PAN-CRISPER-RS
16A	GASKET, COVER
16	WCI G490064-08
17	SUPPORT, CRISPER COVER
18	WCI G187181-01
19	WCI G187195-01
20	WCI G187213-03
20B	WCI G115932
20A	RAIL-STRAIGHT (NON-ILLUSTRATED)
21	WCI G162178
22	DEFLECTOR AIR
23	TRIM
24	WCI G177390-18
25	TRIM (2)
26	WCI G177390-17
27	WCI G166495-01
28	TRIM-SHELF
29	SHELF-FREEZER
30	PLUG, DECORATIVE
31	WCI G162512-08
32A	NUT, DAMPER MOUNTING
32	DAMPER FAN COVER
33	KNOB
34	LABEL - UPPER
35	LABEL - LOWER
36	316538904 Frigidaire Oven Lamp Light
37	KNOB
38	TUBE
39	CONTROL
39A	WCI G107080
40	SOCKET LIGHT
41	WCI G176722-03
42	WCI G178402-02
43	WCI G188379-02
44	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
44A	5304455649 Frigidaire Refrigerator Screw
45A	PIN PUSH SPOUT (2)
45	SPOUT DRAIN TUBE
46	TUBE, DRAIN
46A	RING, SEAL (NON-ILLUSTRATED)
47	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
48	RING, FAN ORIFICE
49	G187559 Frigidaire Refrigerator Bushing
50	WCI G164571
51	5300158289 Frigidaire Evaporator Fan Motor
52	WCI G185302
53	WCI G185303
54	TUBE, INSULATION (2)
55A	NUT, ORIFICE (2)
55	WCI G184609
56A	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
56B	WASHER (2)
56C	WCI G142220
56	BRACKET, HINGE CENTER
56D	SCREW, BRACKET MOUNTING (4)
57	WCI G177254
58	WCI G180373-09
58	WCI G180373-11
58	MULLION, WHITE
58	WCI G180373-08
58	WCI G180373-10
59	STRAP, MULLION MOUNTING
