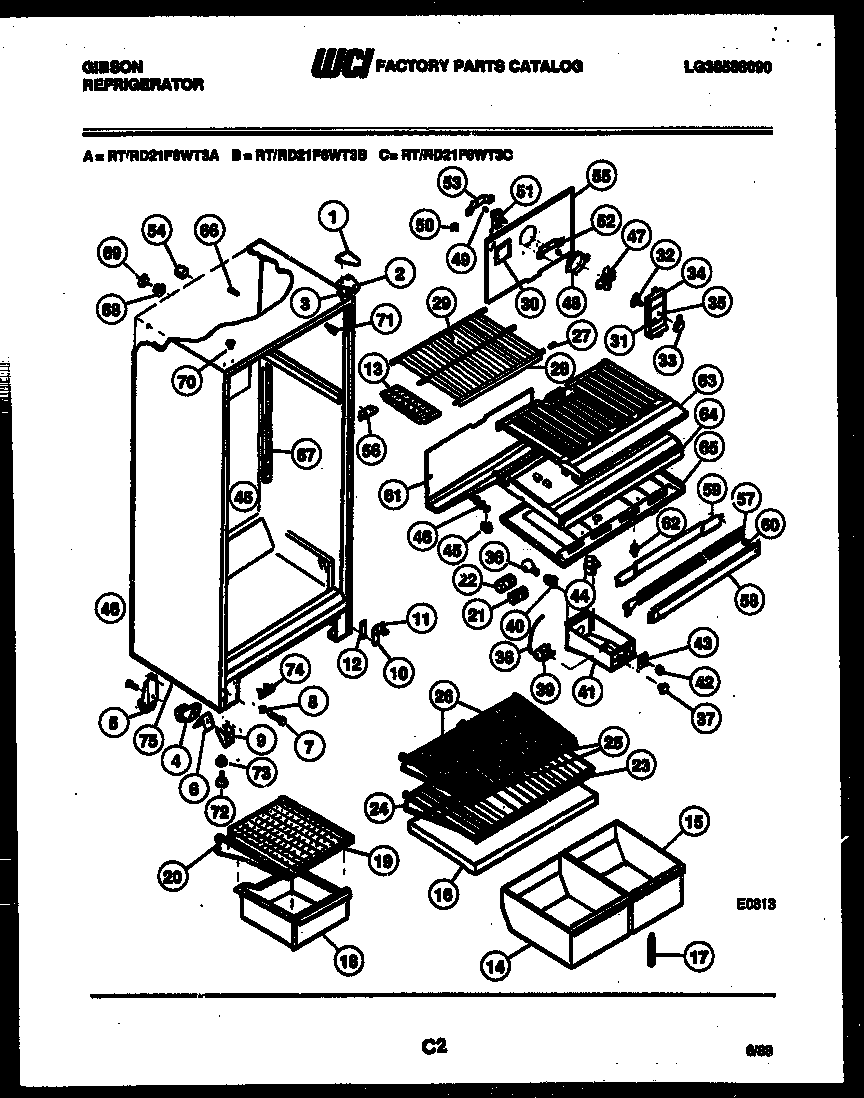

RD21F6WT3C 04 – CABINET PARTS

RD21F6WT3C 04 – CABINET PARTS

Written by

in

RD21F6WT3C 04 – CABINET PARTS

Products

PositionProduct
*865495304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*86550BUTTON, LINER
*865495304509705 Frigidaire Refrigerator Grommet
*86544HARNESS-DIVIDER (NON-ILLUSTRATED)
*86554BUTTON, PLUG, LINER (2)
60SPACER, MULLION (2)
61WCI G177534
625309918806 Frigidaire Refrigerator Light Switch Door
63WCI G184604
64WCI G184683
65ASCREW (5)
65TOP-REFRIGERATOR
66WCI G163669
67BCHANNEL-CENTER (NON-ILLUSTRATED)
67CHANNEL, SHELF (2)
67DSCREW (3) (NON-ILLUSTRATED)
67A5304455852 Frigidaire Refrigerator Screw
68WCI G174733
69WCI G174734
70WCI G174747-09
70WCI G174747-10
70WCI G174747–01
70WCI G174747-08
70WCI G174747-11
71TRIM CORNER (4), AVOCADO
71WCI G179684-10
71WCI G179684-09
71WCI G179684-01
71TRIM-CORNER, ALMOND (4)
72LEG-LEVELING (2)
73NUT, ANCHOR (2)
74WCI G166912
75WCI G490004-02
