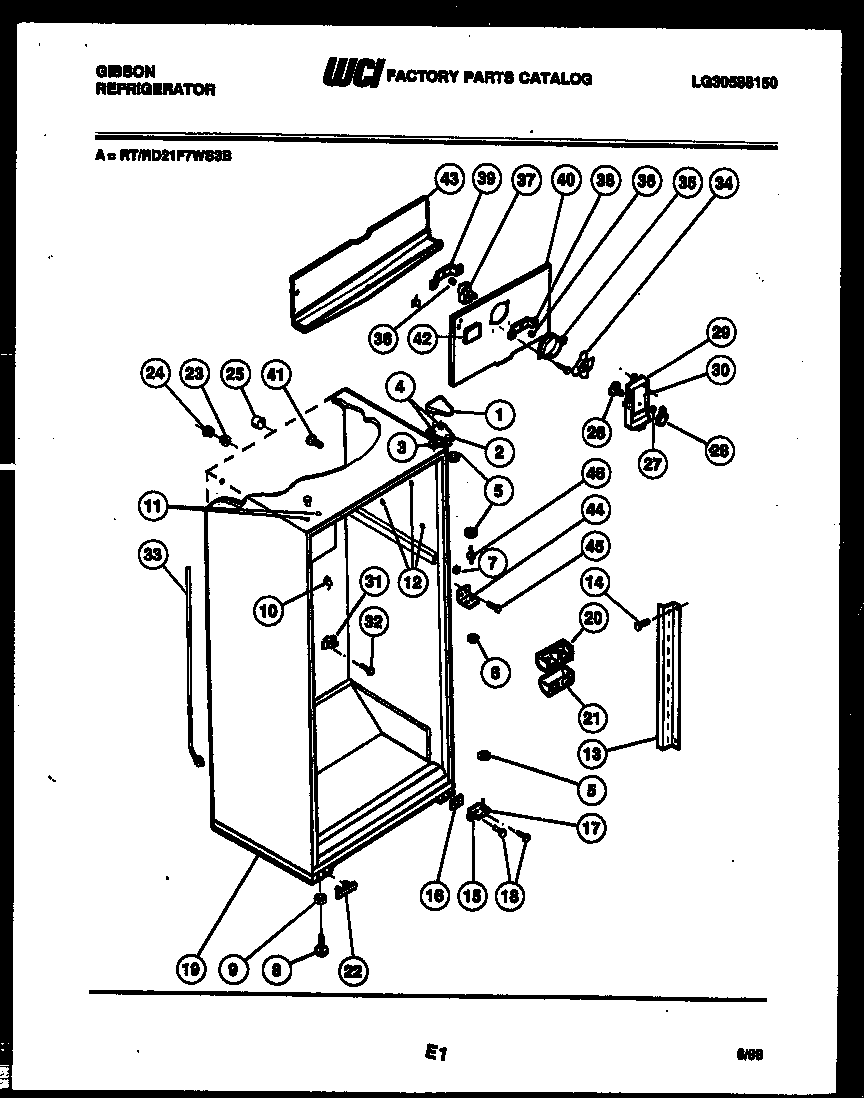

RD21F7WS3B 03 – CABINET PARTS

RD21F7WS3B 03 – CABINET PARTS

Products

PositionProduct
*10705BUTTON, LINER
*10705BUTTON, PLUG, LINER (2)
1COVER HINGE, COFFEE
1COVER, TOP HINGE, AVOCADO
1COVER HINGE, WHITE
1COVER, TOP HINGE, ALMOND
1COVER HINGE, WHEAT
2BRACKET, TOP HINGE
3WCI G183861
4241710601 Frigidaire Refrigerator Screw
5WCI G103903
6WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
7SPACER, MULLION (2)
8LEG-LEVELING (2)
9NUT, ANCHOR (2)
10TRIM CORNER (4), AVOCADO
10TRIM-CORNER, ALMOND (4)
10WCI G179684-01
10WCI G179684-09
10WCI G179684-10
11WCI G174747-08
11WCI G174747-11
11WCI G174747--01
11WCI G174747-09
11WCI G174747-10
12A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
125304509705 Frigidaire Refrigerator Grommet
13CHANNEL, SHELF (2)
145304455852 Frigidaire Refrigerator Screw
15ATAPPING, PLATE (2)
15BRACKET-HINGE
16SHIM, HINGE
175303001321 Frigidaire Refrigerator Lower Hinge Pin
19WCI G490004-02
20DEFLECTOR AIR
21WCI G162178
22WCI G166912
23WCI G174733
24WCI G174734
25TUBE, INSULATION (2)
26DAMPER FAN COVER
27NUT, DAMPER MOUNTING
28KNOB
29A5304455650 Frigidaire Refrigerator Screw
29WCI G162512-08
30LABEL - LOWER
30LABEL - UPPER
31SPOUT DRAIN TUBE
32PIN PUSH SPOUT (2)
33ARING, SEAL (NON-ILLUSTRATED)
33TUBE, DRAIN
345308000010 Frigidaire Refrigerator Evaporator Fan Blade
35RING, FAN ORIFICE
36G187559 Frigidaire Refrigerator Bushing
375300158289 Frigidaire Evaporator Fan Motor
38WCI G185302
39WCI G185303
39AWCI G164571
39B5304455651 Frigidaire Refrigerator Screw
40ANUT, ORIFICE (2)
40WCI G184609
41WCI G163669
42AWCI G191558
42BUTTON-DECORATIVE
43WCI G177534
44BRACKET, HINGE CENTER
45SCREW, BRACKET MOUNTING (4)
45AWASHER (2)
46WCI G142220
