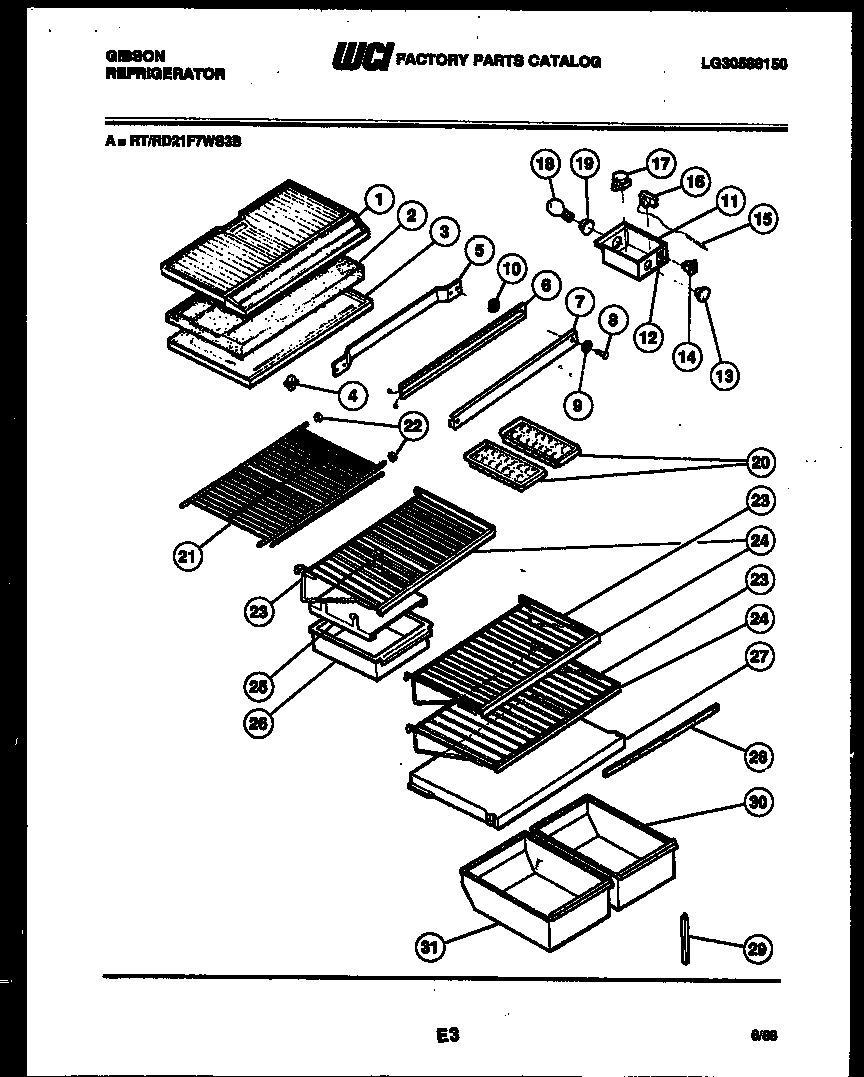

RD21F7WS3B 04 – SHELVES AND SUPPORTS

RD21F7WS3B 04 – SHELVES AND SUPPORTS

Written by

in

RD21F7WS3B 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI G184604
2WCI G184683
3BHARNESS-DIVIDER (NON-ILLUSTRATED)
3ASCREW (5)
3TOP-REFRIGERATOR
45309918806 Frigidaire Refrigerator Light Switch Door
5STRAP, MULLION MOUNTING
6WCI G177254
7WCI G180373-08
7WCI G180373-10
7WCI G180373-09
7WCI G180373-11
7MULLION, WHITE
8SCREW, BRACKET MOUNTING (4)
9WASHER (2)
10SPACER, MULLION (2)
11WCI G174765-03
12LABEL – CONTROL BOX
13KNOB-TEMP CONTROL
14WCI G178402-05
15TUBE
16AWCI G107080
16COLD CONTROL
17215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17A5304455649 Frigidaire Refrigerator Screw
18316538904 Frigidaire Oven Lamp Light
19SOCKET LIGHT
20215667501 Frigidaire Refrigerator Ice Tray Primary
21SHELF-FREEZER
22WCI G166495-01
23WCI G177390-18
24TRIM
25WCI G177106-01
26WCI G176918-15
27WCI G490064-08
28GASKET, COVER
29SUPPORT, CRISPER COVER
30PAN-LARGE RS
31PAN-SMALL LS
