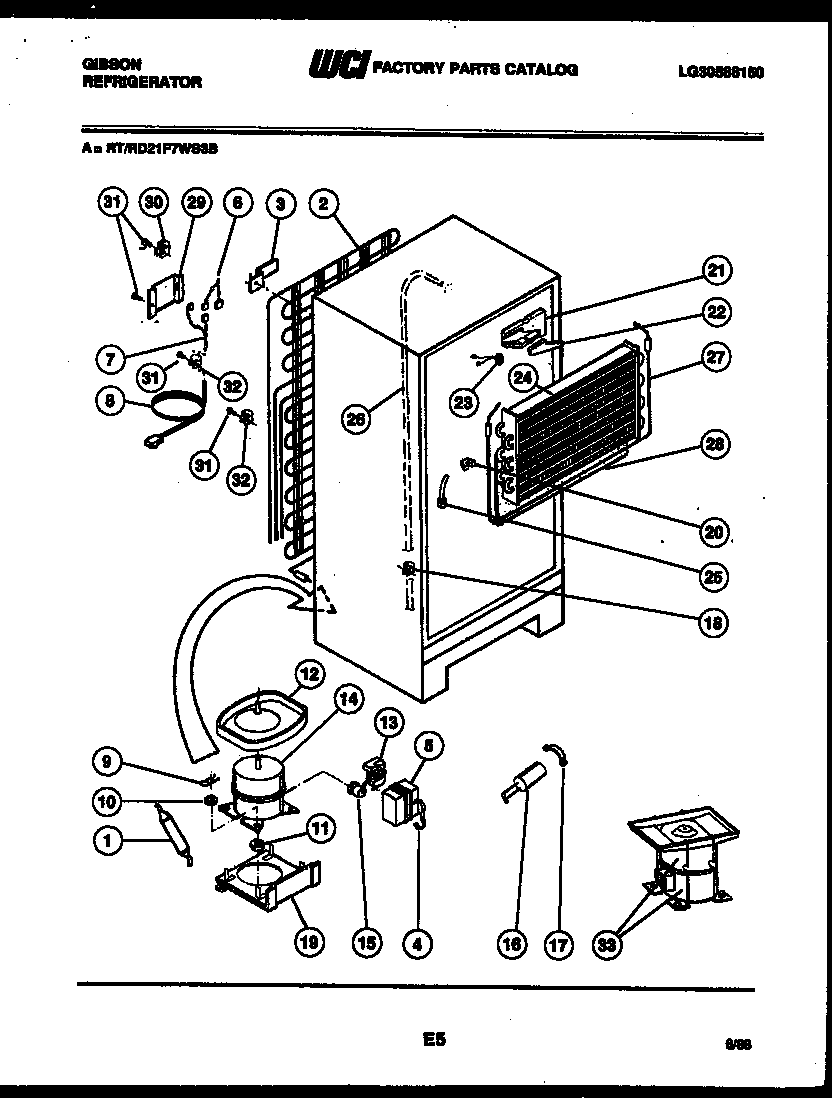

RD21F7WS3B 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI G163133
3BRACKET-CONDENSER MOUNTING (4)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6HARNESS-DIVIDER (NON-ILLUSTRATED)
7HARNESS-COMPRESSOR
8CORD, SERVICE
9CLIP, COMPRESSOR MOUNTING (4)
10WASHER, COMPRESSOR MOUNTING (4)
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12DEFROST PAN & NUT
12NUT, LOCK
13WCI G182225-18
14COMPR W/ ELECT
15WCI G189006
16CAPACITOR
17STRAP-CAPACITOR
18A5308000039 Frigidaire Refrigerator Screw
18240396801 Frigidaire Refrigerator Tube Clamp
19PLATE
20BLOCK, LEFT SIDE
21BLOCK, EVAPORATOR, RH
22PLUG, EVAPORATOR INSULATION BLOCK, R H
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24EVAPORATOR
255308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26HEAT, EXCHANGE
275317842502 Frigidaire Defrost Heater
28INSULATOR
29WCI G183584
30CLAMP-CABLE
315304455651 Frigidaire Refrigerator Screw
325303001199 Frigidaire Refrigerator Wiring Harness Clamp
33BHOT TUBE REPAIR KIT
33WCI G167234
33A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
