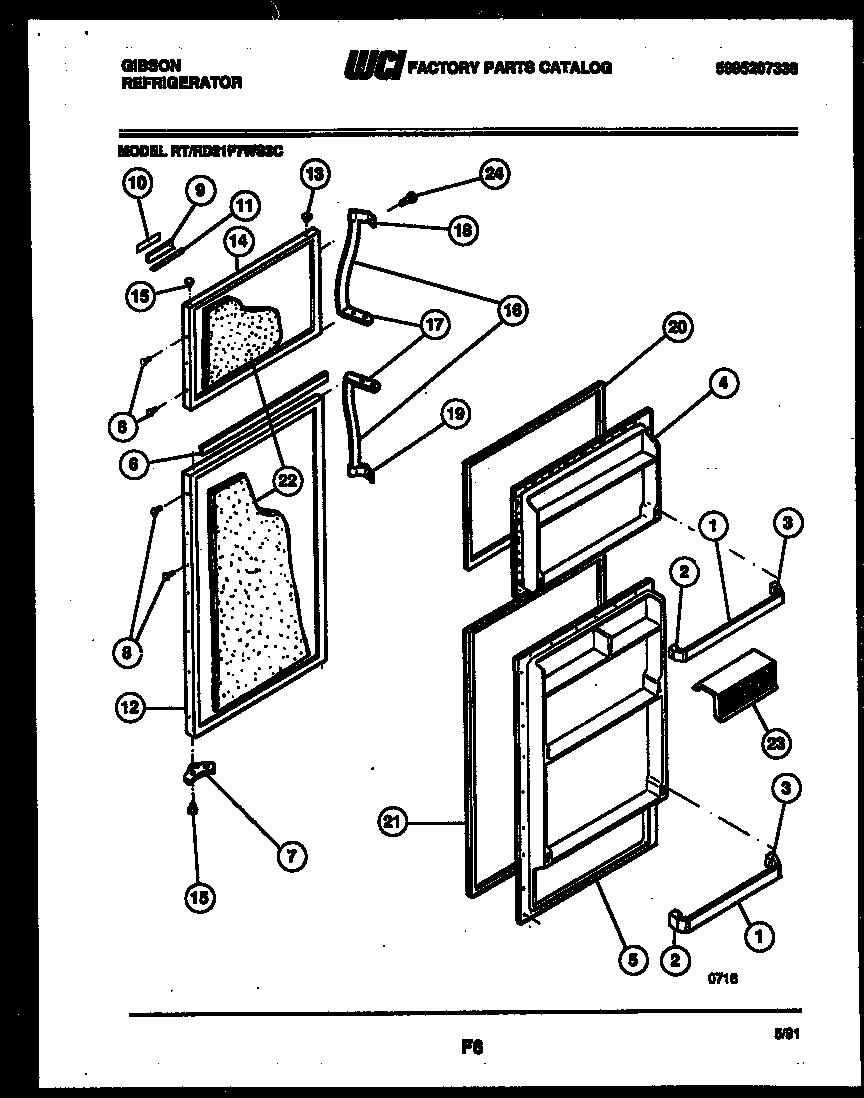

RD21F7WS3C 02 – DOOR PARTS

RD21F7WS3C 02 – DOOR PARTS

Written by

in

RD21F7WS3C 02 – DOOR PARTS

Products

PositionProduct
1DOOR RACK (4)
2SUPPORT LH (4)
3SUPPORT RH (4)
4WCI G18626701
5WCI G186266-01
5A5304455651 Frigidaire Refrigerator Screw
6WCI 5303270464
7BWCI G185566
7AWCI 5308000255
7DOOR STOP, REFR SECTION
8PLUG-BUTTON, ALMOND, HANDLE/DR STOP
8240494001 Frigidaire Refrigerator Plug Button
8BUTTON-WHEAT
8BUTTON-AVOCADO
8BUTTON PLUG-COFFEE
9NAMEPLATE
10ALABEL-LOWER
10LABEL UPPER
11TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
12WCI G186284
12WCI G186284-08
12WCI G186284-09
12WCI G186284-11
12WCI G186284-10
13PLUG-BUTTON, ALMOND, HINGE BRG HOLE
13PLUG-BUTTON, WHITE, HINGE BRG HOLE
13BUTTON-WHEAT
13BUTTON PLUG-COFFEE
13BUTTON-AVOCADO
14WCI G186279-10
14WCI G186279-08
14WCI G186279
14WCI G186279-09
14WCI G186279-11
15BEARING-HINGE
16WCI 5317049526
17WCI 5303001296
18WCI 5303001297
19BOTTOM HANDLE END CAP
20GASKET-FRZR
21GASKET-REFRIG DOOR
22INSULATION-BULK (NON-ILLUSTRATED)
23DAIRY DOOR (2)
24WCI 5308011745
