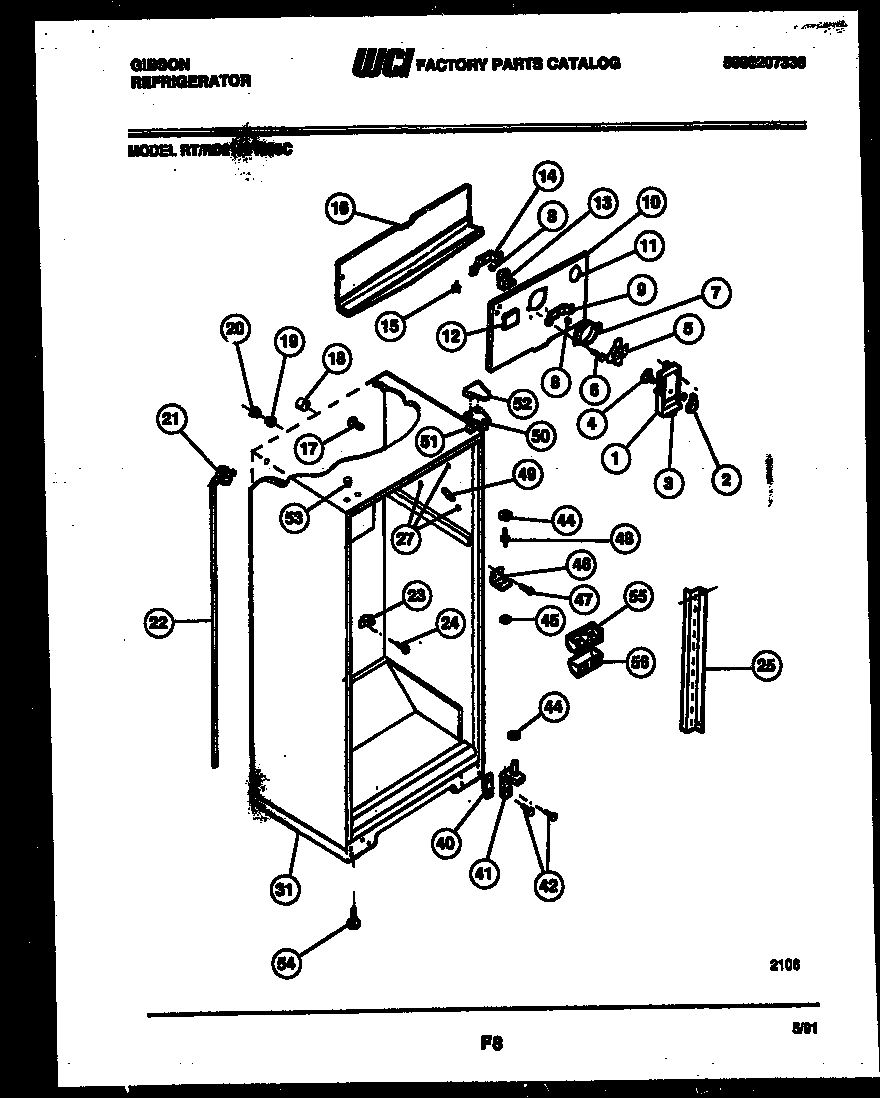

RD21F7WS3C 03 – CABINET PARTS

Products

PositionProduct
*40636PLUG, BUTTON, CABINET LINER (NI)
1WCI 5303201444
1BLABEL – LOWER
1ALABEL – UPPER
2WCI 5308011763
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303001226
10ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10B5304455650 Frigidaire Refrigerator Screw
10COVER, COIL
115303208309 Frigidaire Refrigerator Plug Hole
12BUTTON – DECORATIVE PLUG
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
15WCI 5308000107
16WCI 5303001470
17SUPPORT-COIL COVER
18TUBE-RUBBER
19WCI 5303001286
20WCI 5303001287
21WCI 5303207353
22WCI 5303210377
22A5304455651 Frigidaire Refrigerator Screw
23WCI 5308000056
24WCI 5303001301
25WCI 5308000~~~
25AWCI 530801~~~~
27WCI 5303001~~~
27A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
31WCI 5303212487
40WCI 5303212488
41BTAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
41BRACKET-LOWER HINGE, W/ HINGE PIN
41ATAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
42241710601 Frigidaire Refrigerator Screw
44WASHER, .34 X .62 X .05, NYLON
45WCI 5308000186
46BRACKET-CTR HINGE
47WCI 5308012258
48WCI 5308000184
49WCI 5303202339
49TRIM-CABINET CORNER, ALMOND
49TRIM-CABINET CORNER, WHITE
49WCI 5303202338
49CORNER
50BRACKET-UPPER HINGE
50BTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
51SHIM – UPPER HINGE
52COVER – HINGE-WHEAT
52COVER-UPPER HINGE, ALMOND
52COVER-UPPER HINGE, WHITE
52COVER-HINGE-AVOCADO
52WCI 5303001666
53PLUG, COFFEE
53PLUG-BUTTON, ALMOND, UPR HINGE HOLES
53PLUG-BUTTON, WHITE
53BUTTON-HINGE-WHEAT
53BUTTON-HINGE-AVOCADO
54Screw-leveling,(2)
55COVER – AIR DEFLECTOR
56DEFLECTOR-AIR
