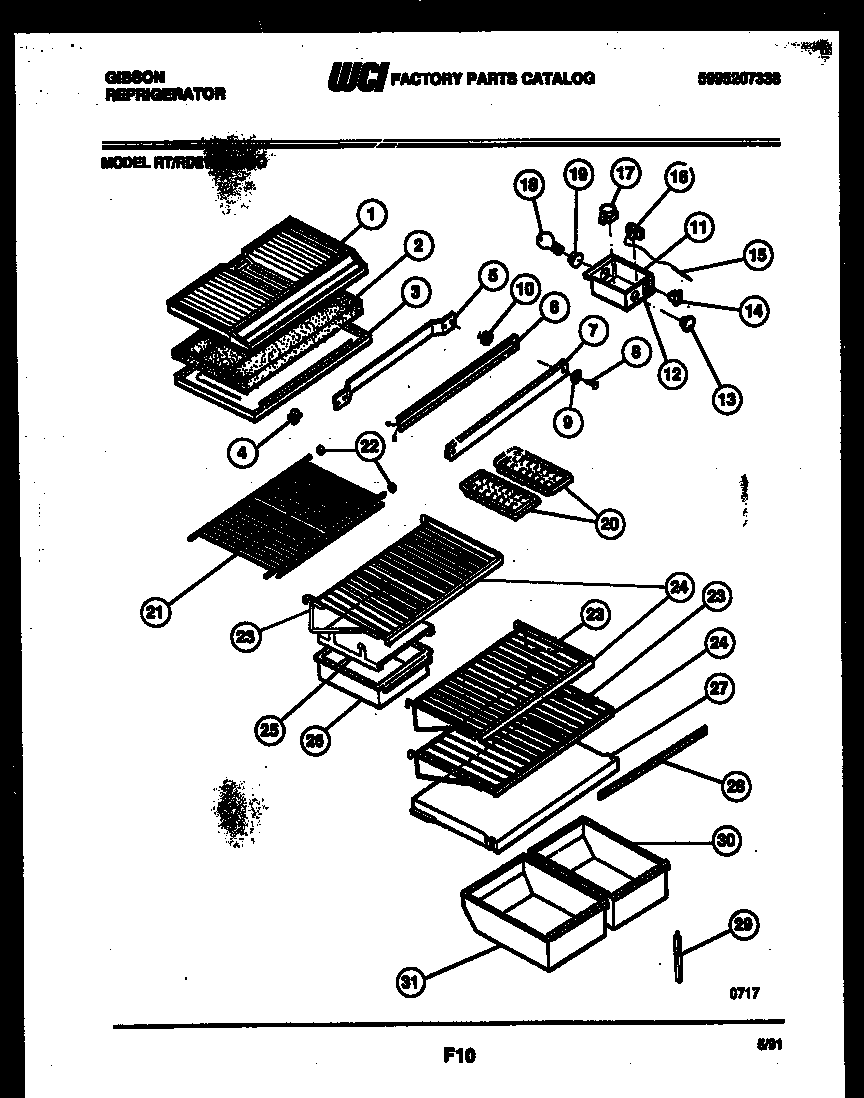

RD21F7WS3C 04 – SHELVES AND SUPPORTS

RD21F7WS3C 04 – SHELVES AND SUPPORTS

Written by

in

RD21F7WS3C 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1BOTTOM, FREEZER
2WCI 5308013674
3CBUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
3TOP-REFRIGERATOR
3AWCI 5303001380
3BHARNESS-DIVIDER (NON-ILLUSTRATED)
45309918806 Frigidaire Refrigerator Light Switch Door
5WCI 5308010008
6WCI 5303210351
7WCI 5303200370
7WCI 5303200366
7WCI 5303200368
7WCI 5303200367
7WCI 5303200369
8WCI 5308012258
9WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
10SPACER-MULLION MTG, STEEL
11WCI 5308009730
12LABEL – CONTROL BOX
13WCI 08006978
14SWITCH-SLIDE
15TUBE
16WCI 5303200810
16AWCI 5303001260
17A5304455649 Frigidaire Refrigerator Screw
17215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
18316538904 Frigidaire Oven Lamp Light
19SOCKET-LIGHT/LAMP
20215667501 Frigidaire Refrigerator Ice Tray Primary
21SHELF-FREEZER
22END CAP-SHELF,PROTECTOR
23WCI G177390-18
24TRIM-SHELF
25WCI 5308000263
26WCI G176918-15
27COVER-CRISPER
28GASKET-COVER
29SUPPORT-CRISPER CVR, ADJUSTABLE
30PAN-LARGE RS
31PAN-SMALL LS
