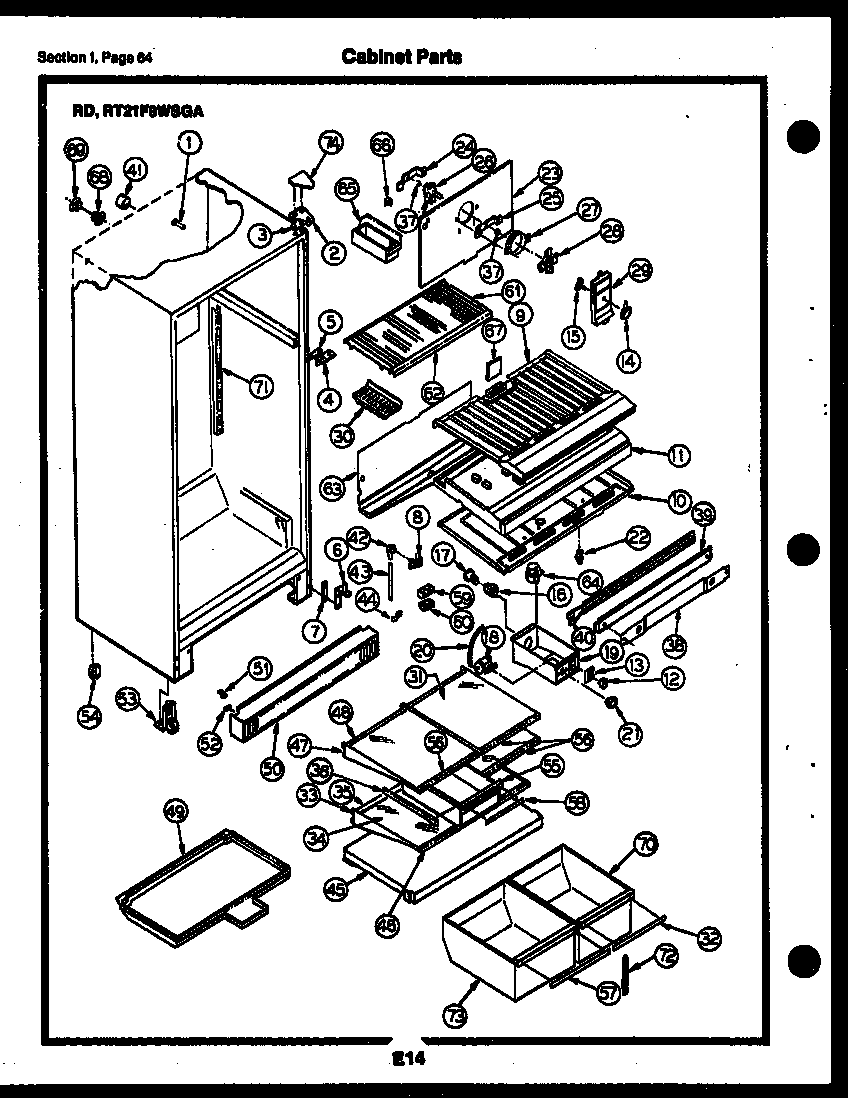

RD21F9WSGA 32 – CABINET PARTS

Products

PositionProduct
1WCI G163669
2BRACKET, TOP HINGE
2BWASHER, NYLON
2BWASHER, NYLON
2AWCI G174747–01
3WCI G183861
4BWCI G142220
4AWCI G103903
4CWASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
4WCI G162384
5SHIM, HINGE
6CNUT, SPEED (2)
6BRACKET-LOWER HINGE
6AWCI G141673
6ESCREW – 1/4 X 1 (2)
6BWCI G142361
6DTAPPING PLATE (2)
7SHIM, HINGE
8APIN PUSH SPOUT (2)
8SPOUT DRAIN TUBE
9WCI G174744
9APAD, FOAM (2)
10WCI G174757
10ASCREW (5)
11WCI G174758
12SWITCH – SLIDE (NON-ILLUSTRATED)
13LABEL – CONTROL BOX
13ALABEL – DAMPER CONTROL KNOB
14WCI G162747-06
15ANUT, DAMPER MOUNTING
15DAMPER FAN COVER
16SOCKET LIGHT
17316538904 Frigidaire Oven Lamp Light
18COLD CONTROL
18AWCI G107080
19WCI G174765-03
20TUBE
21KNOB-TEMP CONTROL
225309918806 Frigidaire Refrigerator Light Switch Door
23WCI G162050-02
24BRACKET, REAR MOTOR MOUNTING
25BRACKET, FRONT MOTOR MOUNTING
25A5304455650 Frigidaire Refrigerator Screw
