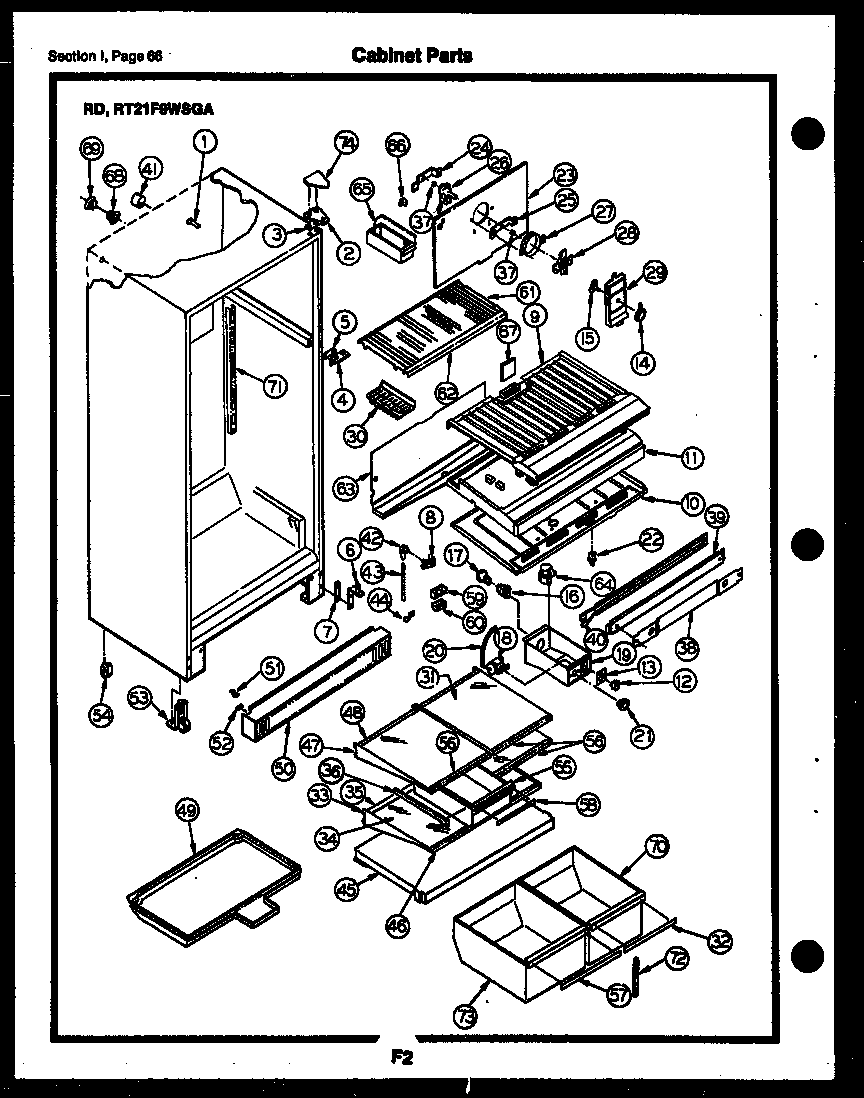

RD21F9WSGA 33 – CABINET PARTS

Products

Position	Product
26	5300158289 Frigidaire Evaporator Fan Motor
27A	NUT, ORIFICE (2)
27	RING, FAN ORIFICE
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
29	WCI G162512-08
29B	LABEL – LOWER
29A	LABEL – UPPER
29C	5304455650 Frigidaire Refrigerator Screw
30	215667501 Frigidaire Refrigerator Ice Tray Primary
31	WCI G171654-41
32	WCI G177343-09
33	WCI G186156-05
34	WCI G171654-40
35	TRIM – FULL SHELF REAR
36A	WCI G174366-02
36	WCI G174365-02
36B	216858001 Frigidaire Refrigerator Screw
37	G187559 Frigidaire Refrigerator Bushing
38	STRAP, MULLION MOUNTING
39	WCI G162051
40	WCI G177254
41	TUBE, INSULATION (2)
42	ELBOW, DRAIN
43	WCI G155529-01
44	240396801 Frigidaire Refrigerator Tube Clamp
44A	5308000039 Frigidaire Refrigerator Screw
45	WCI G161901-02
45A	WCI G180108-02
46	TRIM
47	WCI G186154-02
47A	WCI G186156-06
48	WCI G172409-15
48A	TRIM – SPLIT SHELVES – REAR (2)
49	PAN, DEFROST
50	WCI G161904-01
51	WCI G162994
52	PLUG – LOWER GRILLE
53A	BOLT, HOUSING TO FRONT RAIL (2)
53	ROLLER ASSEMBLY – FRONT (2)
54B	NUT, DAMPER MOUNTING
54A	WCI G162809
54	ROLLER (2)
55	WCI G176918-12
56	TRIM (2)
