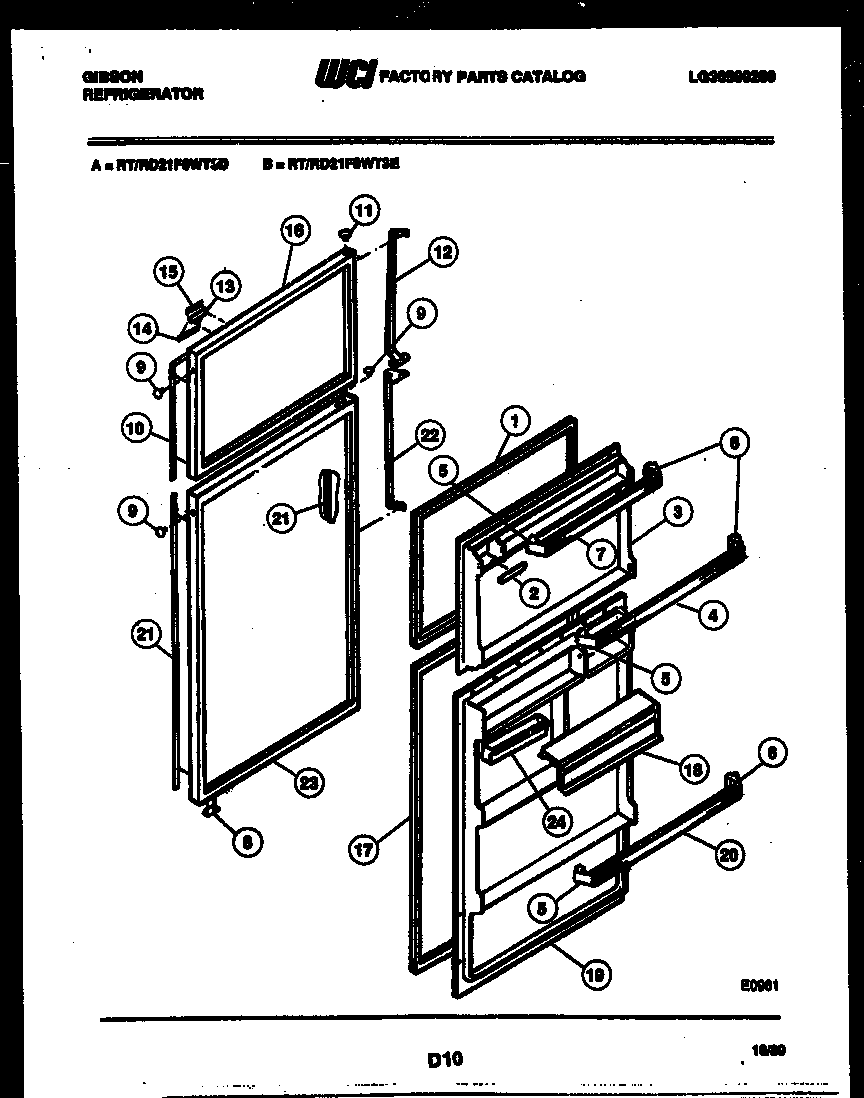

RD21F9WT3D 02 – DOOR PARTS

Products

PositionProduct
1GASKET
2RACK, JUICE CAN
3PANEL-INNER
5SUPPORT, RACK, LH (PC) (2)
6SUPPORT, RACK, RH, (PC) (2)
7WCI G161019-66
8STOP, DOOR. PC & FC (2)
9WCI G162977-10
9WCI G162977-09
9WCI G162977-08
9WCI G162977-11
9240494001 Frigidaire Refrigerator Plug Button
10TRIM-DOOR
11WCI G169332-08
11WCI G169332-01
11WCI G169332-09
11WCI G169332-10
11WCI G169332-11
12HANDLE ASSEMBLY
13NAMEPLATE
14LABEL, LOWER
15LABEL, UPPER
16PANEL-OUTER-AVOC
16PANEL-OUTER-ALMOND
16PANEL-OUTER-COFFEE
16PANEL-OUTER-WHEAT
16PANEL-OUTER-WHITE
17GASKET
18DOOR, DAIRY (2)
19WCI G187538-02
19A218843801 Frigidaire Refrigerator Screw
20WCI G161019-65
20ASNUGGER-SHELF (2) (NON-ILLUSTRATED)
21TRIM (2)
22HANDLE ASSEMBLY
22AWCI G185566
23PANEL, OUTER, WHEAT
23WCI G188239
23WCI G188239-10
23WCI G188239-11
23ABEARING, HINGE (3)
23WCI G188239-08
24TRAY, UTILITY
