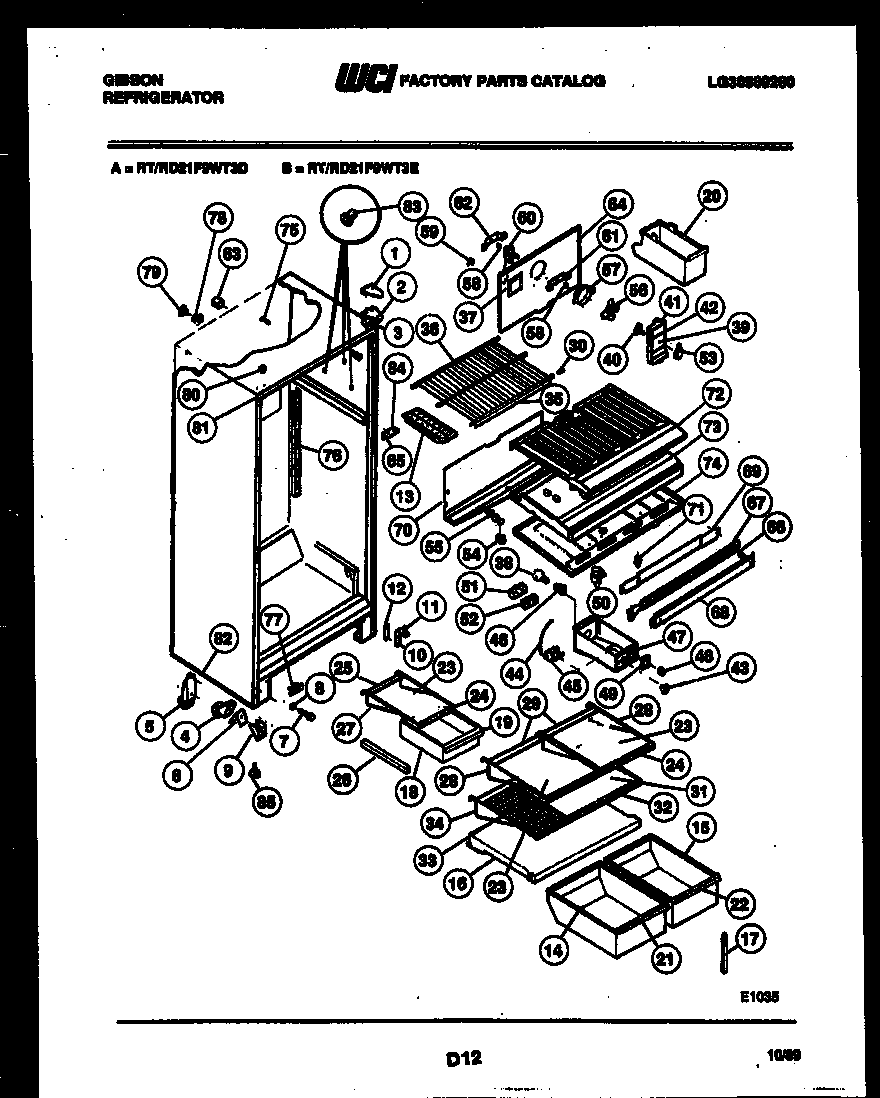

RD21F9WT3D 03 – CABINET PARTS

Products

PositionProduct
1COVER, TOP HINGE, ALMOND
1COVER, TOP HINGE, AVOCADO
1COVER HINGE, WHITE
1COVER HINGE, COFFEE
1COVER HINGE, WHEAT
2BRACKET, TOP HINGE
3A241710601 Frigidaire Refrigerator Screw
3WCI G183861
3CWASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
3BWCI G103903
4ROLLER FRONT, ADJUSTABLE (2)
5BBOLT ROLLER (2)
5ROLLER, REAR (2)
5A5308000039 Frigidaire Refrigerator Screw
6SPRING-ROLLER (2)
7BOLT-ROLLER (2)
8WASHER
9SUPPORT, ROLLER (2)
10BRACKET-HINGE
115303001321 Frigidaire Refrigerator Lower Hinge Pin
12SHIM, HINGE
13215667501 Frigidaire Refrigerator Ice Tray Primary
14WCI G490015-49
15WCI G176639-29
16AGASKET, COVER
16WCI G490064-08
17SUPPORT, CRISPER COVER
18WCI G187181-02
19WCI G177343-19
20WCI G163022-03
21TRIM
22WCI G177343-18
23SHELF-GLASS (3)
24TRIM (2)
25WCI G172436-15
26AHANGAR, RIGHT SIDE
26BSCREW-HANGER (2) (NON-ILLUSTRATED)
26HANGAR, LEFT SIDE
27FRAME-CANTILEVER
28FRAME-CANTILEVER (2)
29TRIM-REAR (2)
30WCI G166495-01
31WCI G171654-54
32AWCI G172436-19
32WCI G171410-02
33WCI G186661-02
34FRAME-CANTILEVER
35TRIM-SHELF
36SHELF-FREEZER
37BUTTON-DECORATIVE
38316538904 Frigidaire Oven Lamp Light
39WCI G162512-08
40DAMPER FAN COVER
40ANUT, DAMPER MOUNTING
41LABEL – UPPER
42LABEL – LOWER
43KNOB
44TUBE
45COLD CONTROL
46SOCKET LIGHT
47WCI G176722-03
48WCI G178402-02
49WCI G188379-02
50A5304455649 Frigidaire Refrigerator Screw
50215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
51DEFLECTOR AIR
52WCI G162178
53KNOB
54SPOUT DRAIN TUBE
54APIN PUSH SPOUT (2)
55TUBE, DRAIN
55AWCI G101747
565308000010 Frigidaire Refrigerator Evaporator Fan Blade
57RING, FAN ORIFICE
58G187559 Frigidaire Refrigerator Bushing
59WCI G164571
605300158289 Frigidaire Evaporator Fan Motor
61WCI G185302
62WCI G185303
63TUBE, INSULATION (2)
64ANUT, ORIFICE (2)
64WCI G184609
65ASCREW, BRACKET MOUNTING (4)
65BRACKET, HINGE CENTER
65BWASHER (2)
66SPACER, MULLION (2)
67WCI G168722
