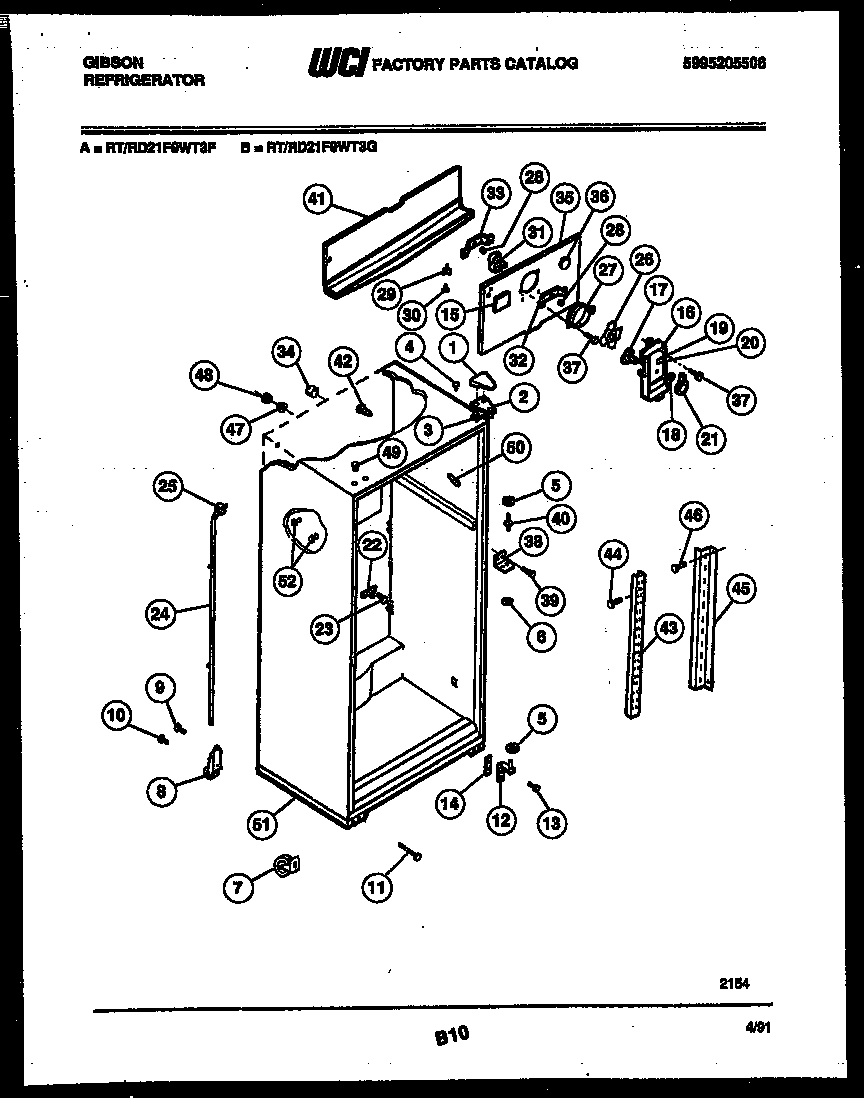

RD21F9WT3F 03 – CABINET PARTS

RD21F9WT3F 03 – CABINET PARTS

Written by

in

RD21F9WT3F 03 – CABINET PARTS

Products

PositionProduct
*435455304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*43545PLUG, BUTTON, CABINET LINER (NI)
*43545TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1COVER-UPPER HINGE, WHITE
1COVER-HINGE-AVOCADO
1COVER – HINGE-WHEAT
1WCI 5303001666
1COVER-UPPER HINGE, ALMOND
2BRACKET-UPPER HINGE
3SHIM – UPPER HINGE
5WASHER, .34 X .62 X .05, NYLON
6WCI 5308000186
7WCI 5303212490
8WCI 5308009773
95304455651 Frigidaire Refrigerator Screw
10BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
11BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
12BTAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
12BRACKET-LOWER HINGE, W/ HINGE PIN
12ATAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
13241710601 Frigidaire Refrigerator Screw
14WCI 5303212488
15BUTTON – DECORATIVE PLUG
16WCI 5303201444
17DAMPER-FAN COVER
18Nut,push-on
19LABEL – UPPER
20LABEL – LOWER
21WCI 5308011763
22WCI 5308000056
23WCI 5303001361
24WCI 5303210377
25WCI 5303207353
265308000010 Frigidaire Refrigerator Evaporator Fan Blade
27RING-FAN ORIFICE
28G187559 Frigidaire Refrigerator Bushing
29WCI 5308000107
315300158289 Frigidaire Evaporator Fan Motor
32WCI 5303205118
33BRACKET-MOTOR MTG, REAR
34TUBE-RUBBER
35COVER, COIL
35ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
365303208309 Frigidaire Refrigerator Plug Hole
375304455650 Frigidaire Refrigerator Screw
38BRACKET-CTR HINGE
39WCI 5308012258
40WCI 5308000184
41WCI 5303001470
42SUPPORT-COIL COVER
43WCI 5303015409
44WCI 5308016568
45CHANNEL, RH & LH
465304455852 Frigidaire Refrigerator Screw
47WCI 5303001286
48WCI 5303001287
49PLUG-BUTTON, WHITE
49PLUG-BUTTON, ALMOND, UPR HINGE HOLES
49BUTTON-HINGE-WHEAT
49BUTTON-HINGE-AVOCADO
49PLUG, COFFEE
50WCI 5303202338
50WCI 5303202339
50TRIM-CABINET CORNER, ALMOND
50TRIM-CABINET CORNER, WHITE
50CORNER
51WCI 5303212487
525304509705 Frigidaire Refrigerator Grommet
