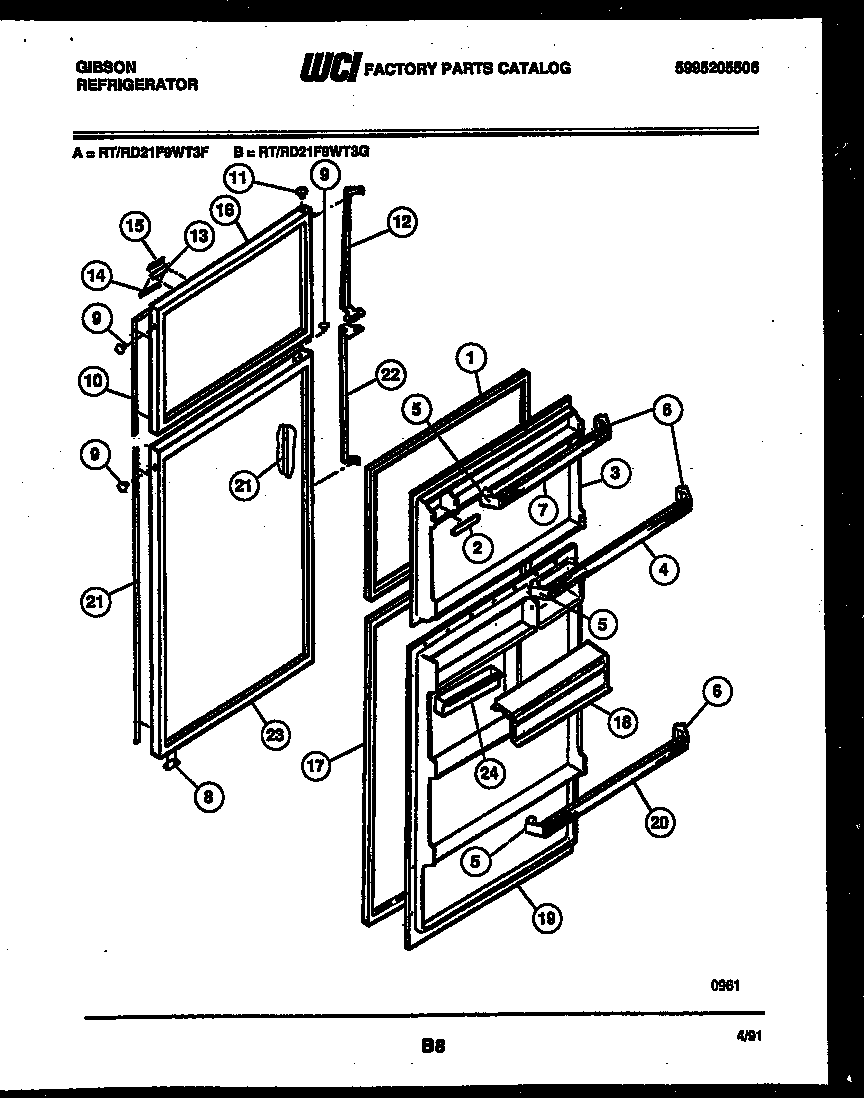

RD21F9WT3G 02 – DOOR PARTS

Products

Position	Product
1	GASKET-FRZR
2	DISPENSER-JUICE CAN
3	PANEL-INNER FRZR
6	SUPPORT RH (4)
7	WCI G161019-66
8A	WCI 5308000255
8	DOOR STOP, REFR SECTION
9	BUTTON-WHEAT
9	BUTTON-AVOCADO
9	BUTTON PLUG-COFFEE
9	240494001 Frigidaire Refrigerator Plug Button
9	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
10	TRIM-DOOR
11	BUTTON-WHEAT
11	BUTTON-AVOCADO
11	BUTTON PLUG-COFFEE
11	PLUG-BUTTON, WHITE, HINGE BRG HOLE
11	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
12	WCI 5316850601
13	NAMEPLATE
14	LABEL-LOWER
15	LABEL UPPER
16	PANEL-OUTER-COFFEE
16	PANEL-OUTER-WHITE
16	PANEL-OUTER-AVOC
16	PANEL-OUTER-WHEAT
16	PANEL-OUTER-ALMOND
17	GASKET-REFRIG DOOR
18	WCI 5303270562
19	WCI G187538-02
19A	5304455651 Frigidaire Refrigerator Screw
20	RACK-DOOR (2)
20A	SNUGGER-SHELF (2) (NON-ILLUSTRATED)
21	TRIM (2)
22	WCI 5316850501
22A	WCI 5308011745
23	WCI G188239-10
23A	BEARING-HINGE
23	WCI G188239-11
23	WCI G188239-08
23	PANEL, OUTER, WHEAT
23	WCI G188239
24	WCI 5303270563
