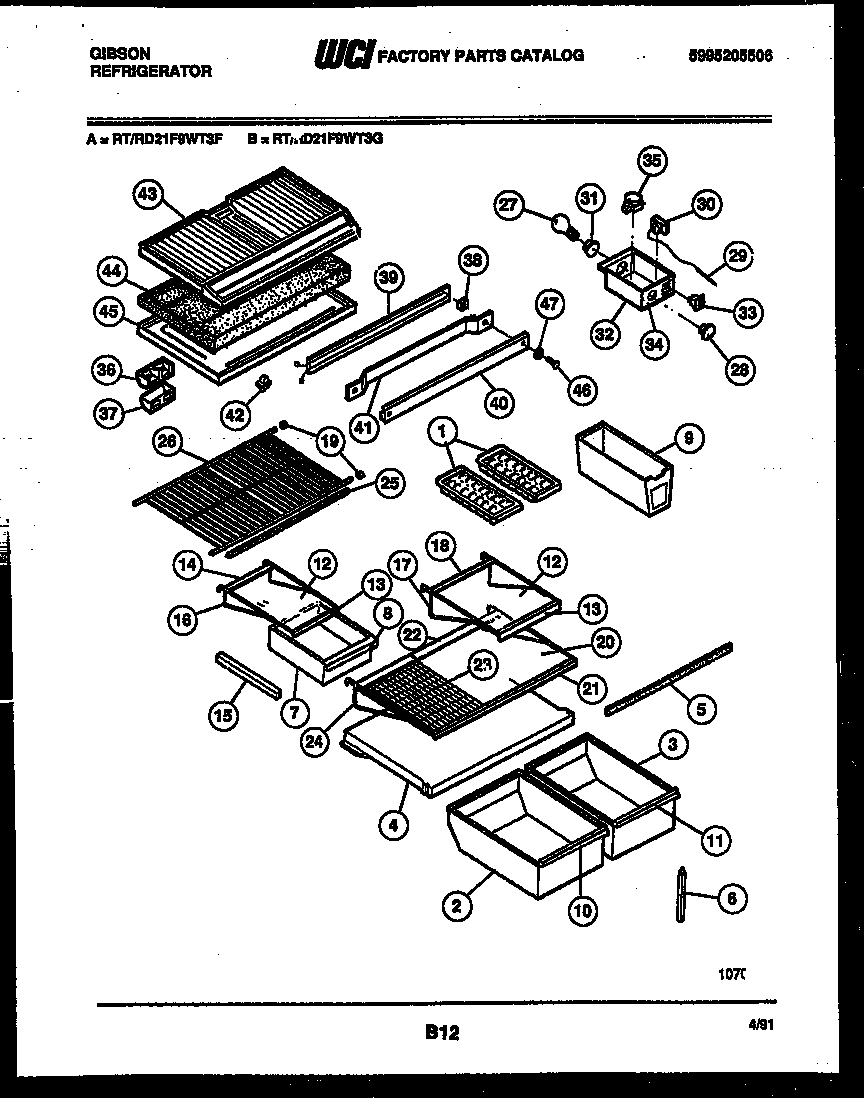

RD21F9WT3G 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	215667501 Frigidaire Refrigerator Ice Tray Primary
2	WCI 5349001549
3	WCI G176639-29
4	COVER-CRISPER
5	GASKET-CRISPER COVER (NON-ILLUSTRATED)
6	SUPPORT-CRISPER CVR, ADJUSTABLE
7	WCI G187181-02
8	WCI G177343-19
9	WCI G163022-03
10	TRIM
11	WCI G177343-18
12	SHELF-GLASS (3)
13	WCI 5317241005
14	WCI 3001427
15	HANGER-PAN LH
15A	HANGER-PAN RH (NON-ILLUSTRATED)
15B	WCI 08014528
16	FRAME-CANTILEVER
17	FRAME-CANTILEVER (2)
18	TRIM-REAR (2)
19	END CAP-SHELF,PROTECTOR
20	WCI G17654-54
22	WCI G172436-19
23	WCI G186661-02
24	FRAME-CANTILEVER
25	TRIM-SHELF
26	SHELF-FREEZER
27	316538904 Frigidaire Oven Lamp Light
28	WCI 5308010011
29	TUBE
30A	WCI 5303001260
30	WCI 5303200810
31	SOCKET-LIGHT/LAMP
32	WCI 5317672203
33	SWITCH-ENERGY SAVER, SLIDE TYPE
34	WCI 5303270583
35	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
35A	5304455649 Frigidaire Refrigerator Screw
36	DEFLECTOR-AIR
37	COVER – AIR DEFLECTOR
38	SPACER-MULLION MTG, STEEL
39	WCI 5303210351
40	WCI 5303200367
40	WCI 5303200369
40	WCI 5303200368
40	WCI 5303200370
40	WCI 5303200366
41	WCI 5308010008
42	5309918806 Frigidaire Refrigerator Light Switch Door
43	BOTTOM, FREEZER
44	WCI 5308013674
45A	WCI 5303001380
45B	HARNESS-DIVIDER (NON-ILLUSTRATED)
45	TOP-REFRIGERATOR
46	WCI 5308012258
47	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
