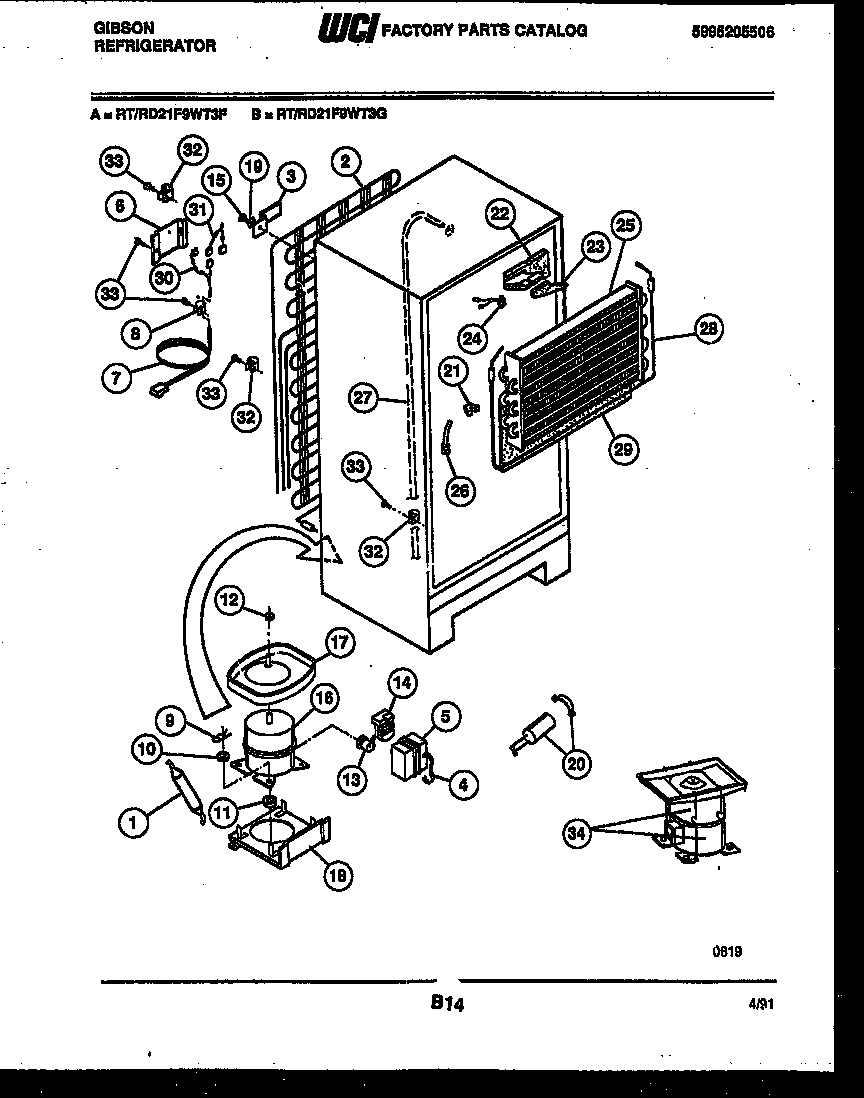

RD21F9WT3G 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

RD21F9WT3G 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

RD21F9WT3G 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*43565HOT TUBE REPAIR KIT-SERVICE
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI 5300163133
3BRACKET-MTG (4)
4WCI 5303211232
5WCI 5303209254
6WCI 5303001197
7CORD-ELECTRIC POWER
85303001199 Frigidaire Refrigerator Wiring Harness Clamp
9CLIP – COMPRESSOR MTG
10WASHER-COMPR MTG
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12Nut,lock `1/4-20 ,drain pan mtg
13WCI 5303270294
14RELAY-TL
155308000039 Frigidaire Refrigerator Screw
16COMPRESSOR W/ ELECTRICALS
17APAN-DEFROST-ORIG COMPRESSOR
17PAN-DEFROST DRAIN, ORIG/SVCE COMPR
17B5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
18WCI 5308013663
19WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
20CAPACITOR
21INSULATION BLOCK, LH
22INSULATION BLOCK, RH
23INSULATION PLUG, RH
245303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
25EVAPORATOR
265308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
27WCI 5308000728
285317842502 Frigidaire Defrost Heater
29INSULATOR-EVAP, PLASTIC
30WIRING HARNESS, COMPRESSOR,
31HARNESS-DIVIDER (NON-ILLUSTRATED)
325308000133 Frigidaire Refrigerator Clamp
335304455651 Frigidaire Refrigerator Screw
34PAN RETAINER KIT, SERVICE
