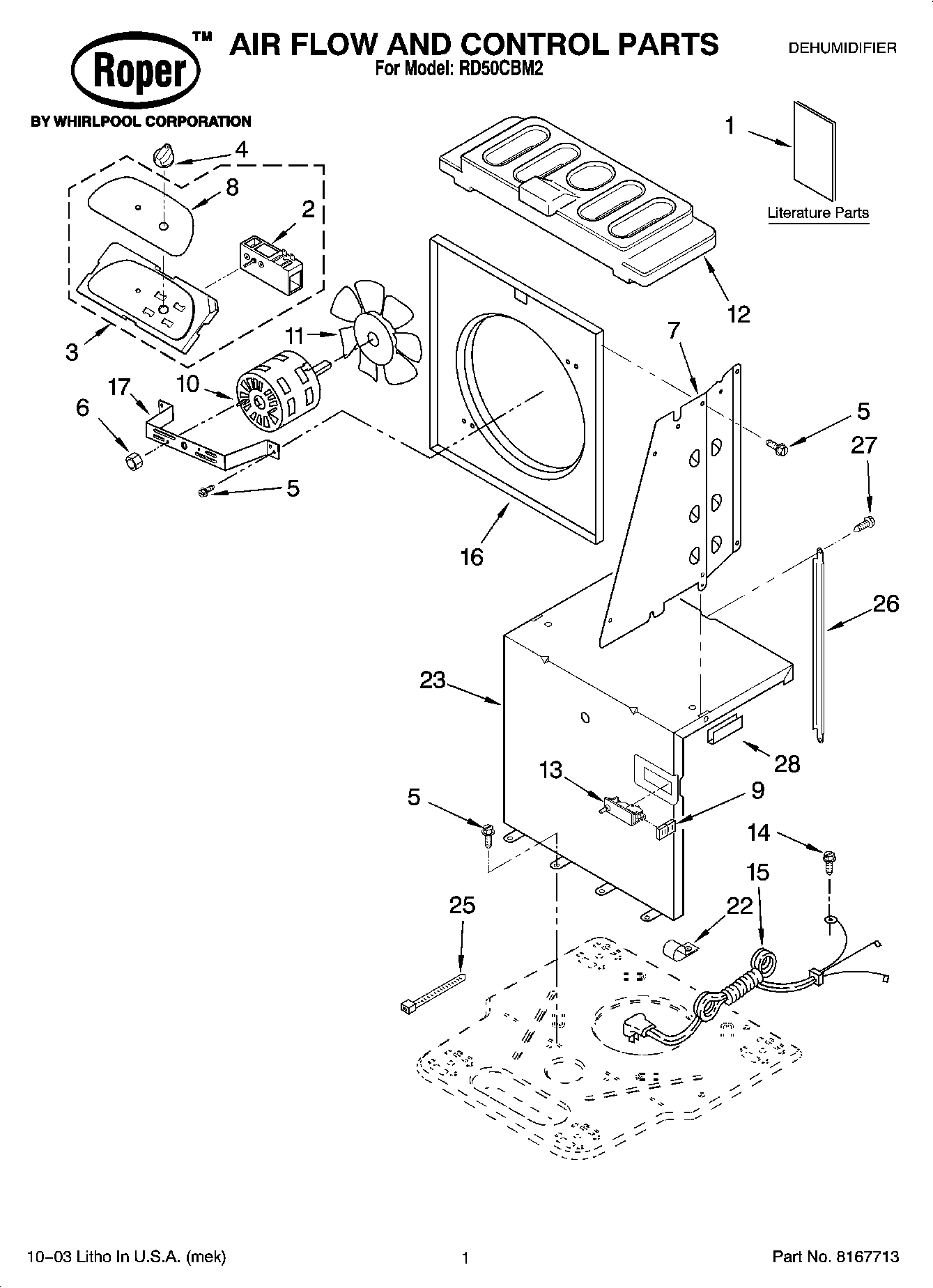

RD50CBM2 01 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
1	WPL LIT1182965
1	Literature Parts (Wiring Diagram)
2	WP1168670 Whirlpool Air Conditioner Humidistat
3	Assembly, Control Panel
4	WPL 1168687
6	WPL 1183427
7	WPL 1168759
7	WPL 1168758
8	Escutcheon
9	WPL 1168781
10	Motor, Fan
11	WPL 1168661
12	WPL 1168681
13	Switch, Bucket Fill/Check
14	Screw 8-18 x .295
15	Cord, Appliance
16	WPL 1168666
17	WP488130 Whirlpool Air Conditioner Nut
22	Clamp, Tube
23	WPL 1184946
25	WPW10339879 Whirlpool Wire Tie
26	WPL 1168752
27	WP489069 Whirlpool Compactor Screw
28	Guard, Edge
