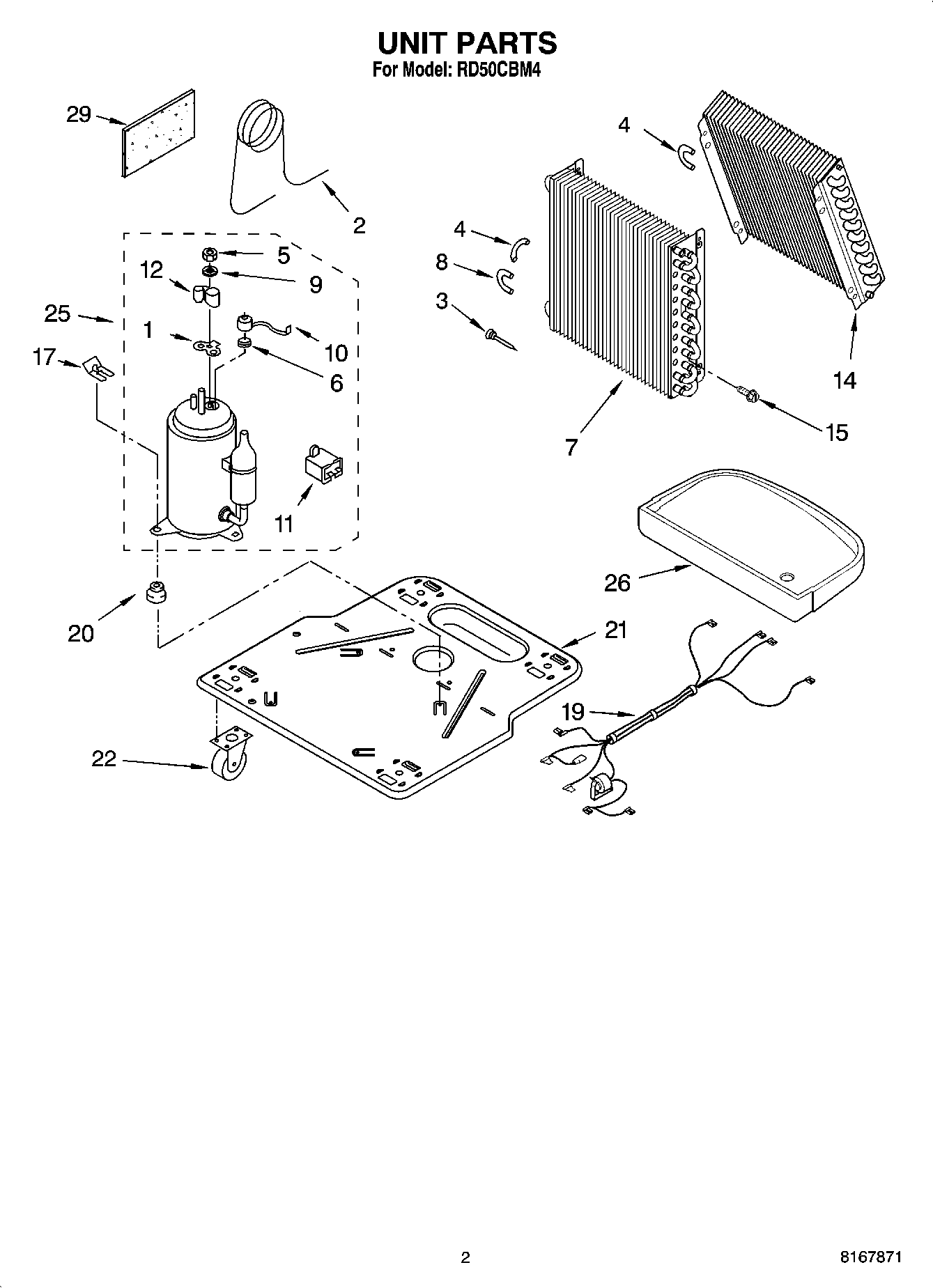

RD50CBM4 02 – UNIT PARTS

Products

Position	Product
1	Gasket, Terminal Cover
2	WPL 1168734
3	WP1162526 Whirlpool Air Conditioner Strainer
4	Bend, Return Condenser (10)
5	W10833054 Whirlpool Air Conditioner Mounting Nut
6	Spring, Overload
7	Condenser
8	Bend, Return Condenser (4)
9	Washer
10	Overload, Protector
11	Capacitor
12	Cover, Terminal
14	WPL 1185204
15	WP489069 Whirlpool Compactor Screw
17	Clip, Compressor
19	Harness, Wire
20	Grommet
21	Base
22	WPL 1164241
25	Compressor, (Complete Assembly)
26	WPL 1168761
29	Seal, Restrictor Tube
29	REFRIGERANT CHARGE 8.0 oz.
