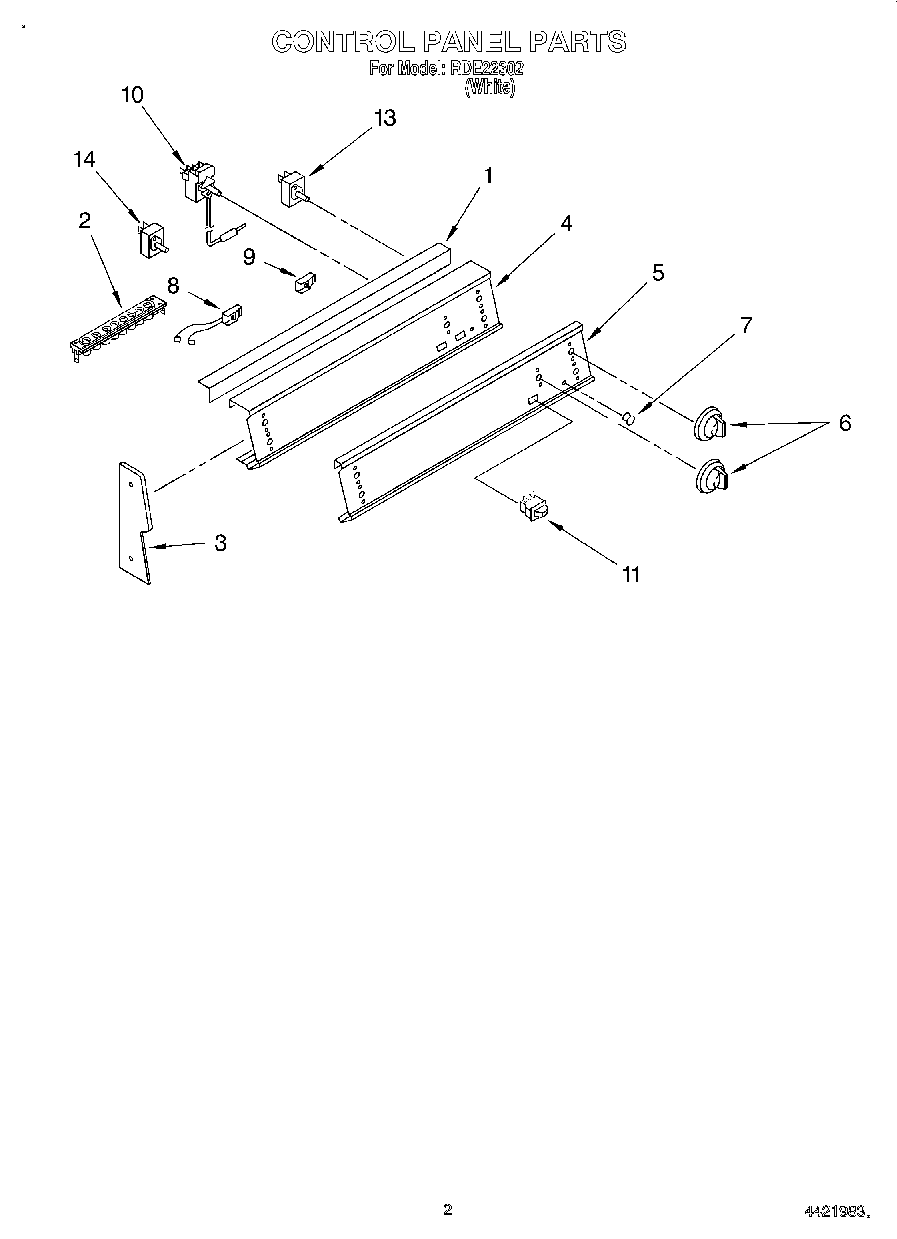

RDE22302 02 – CONTROL PANEL

Products

Position	Product
1	Lamp Cover, Black
2	WP112432 Whirlpool Nut Assembly
2	Screw, (2) 10-16 x 1
2	WP8203546 Whirlpool Terminal Block
3	End Cap R.H.
3	End Cap L.H.
4	Panel, Control
4	WP4159387 Whirlpool Compactor Screw
5	Panel, Control (Faceplate)
6	Knobs, Control (5)
7	WP9750343 Whirlpool Light Lens
8	Light, Indicator (Oven - Thermostat)
9	Light Module
10	Thermostat
11	Switch, Rocker
13	WP9750638 Whirlpool Infinite Switch
14	WP9750641 Whirlpool Infinite Switch
14	WP3400882 Whirlpool Screw
