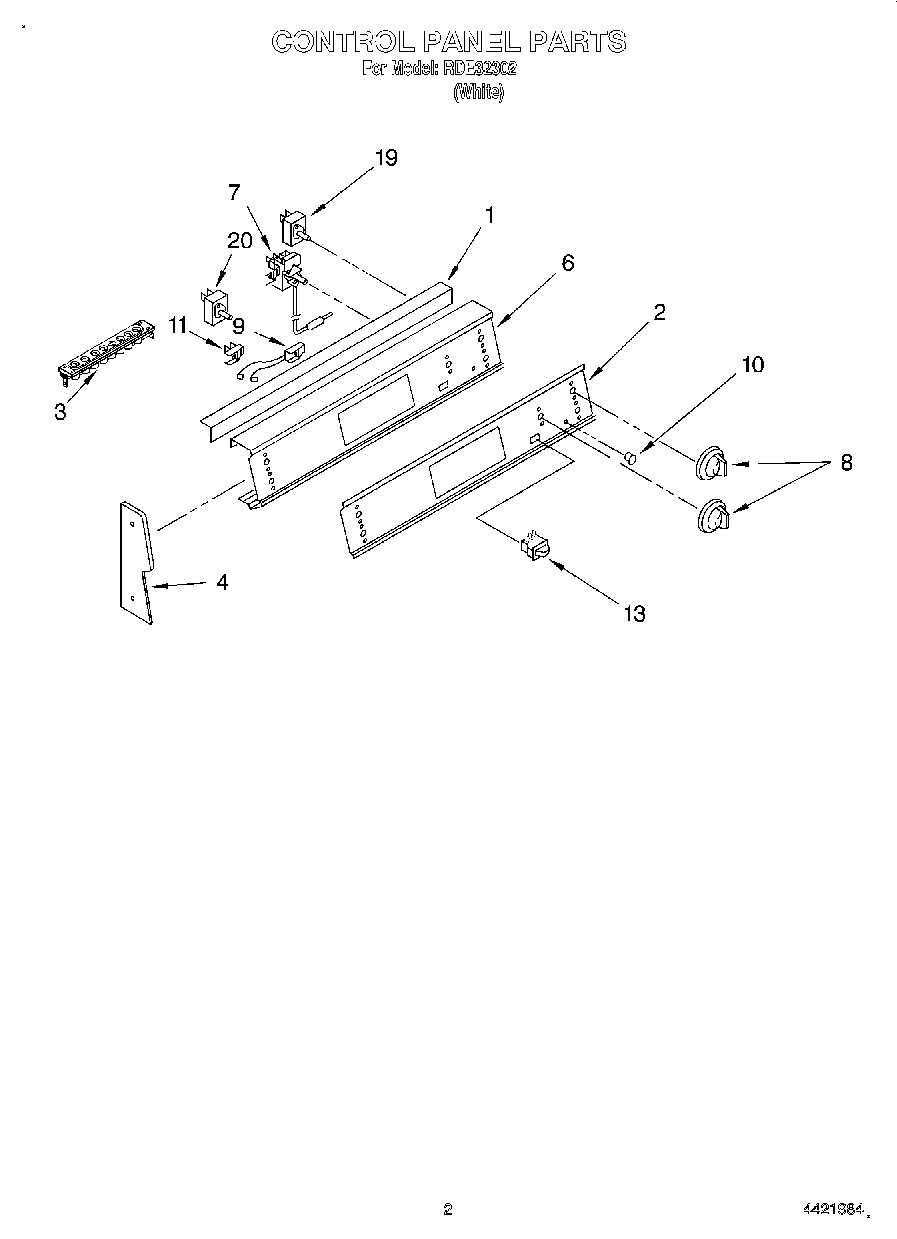

RDE32302 02 – CONTROL PANEL

Products

Position	Product
1	Cover, Lamp
2	Panel, Control (Overlay)
3	W10080180 Whirlpool Nut
3	WP8203546 Whirlpool Terminal Block
3	Screw, (2) 10-16 x 1
4	WP4159387 Whirlpool Compactor Screw
4	End Cap R.H.
4	End Cap L.H.
6	Panel, Control
6	Panel, Control (Screw, (2) 8 x 3/8)
7	Thermostat
8	Knobs, Control (5)
9	Light, Indicator (Oven – Thermostat)
10	WP9750343 Whirlpool Light Lens
11	Light Module
13	Switch, Rocker
19	WP9750638 Whirlpool Infinite Switch
20	WP3400882 Whirlpool Screw
20	WP9750641 Whirlpool Infinite Switch
