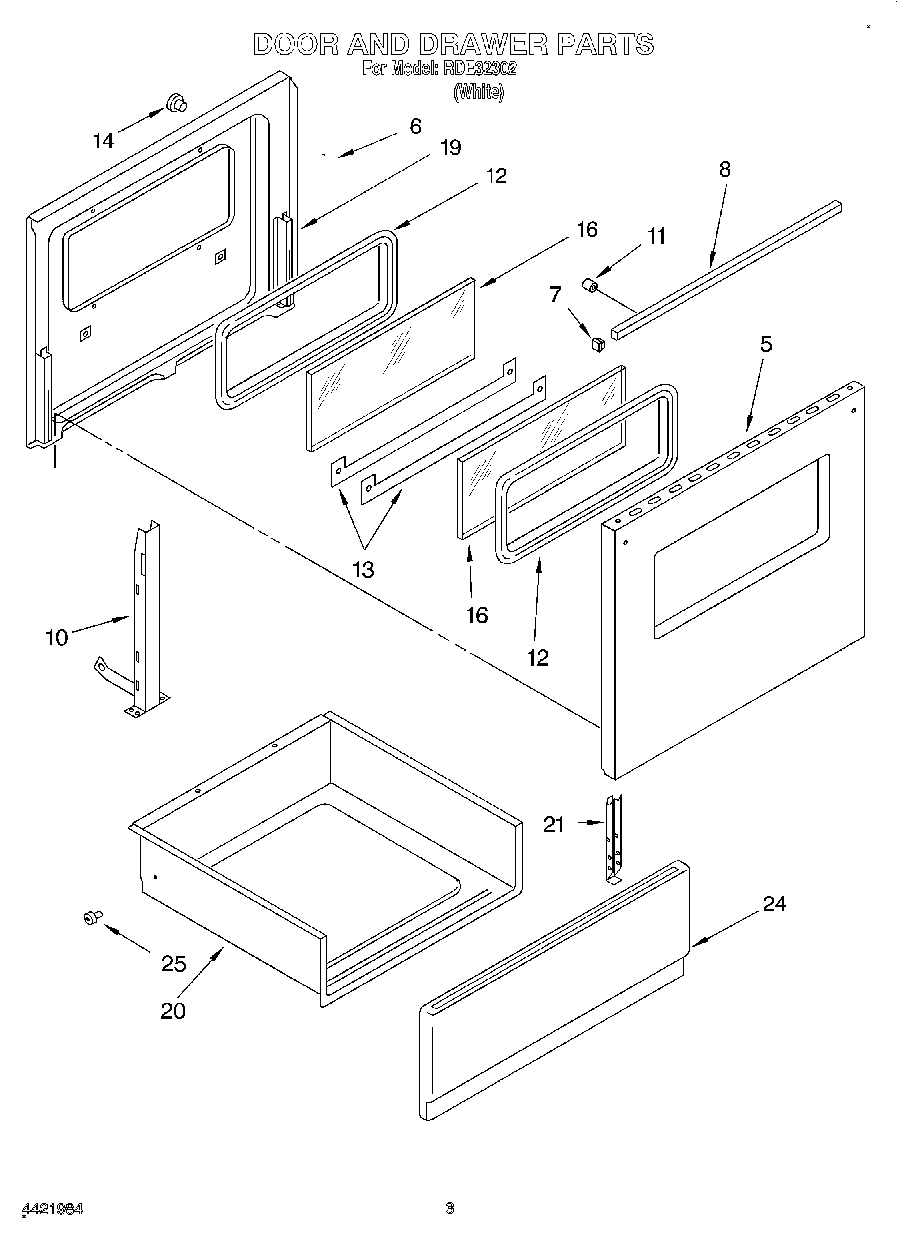

RDE32302 03 – DOOR AND DRAWERadmin2025-04-26T08:40:38+00:00RDE32302 03 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 5 | Panel, Door (White) |
| 6 | Back Splash (Screw (4) 10AB x 1/2``) |
| 6 | Retainer, Glass |
| 7 | End Cap, Handle (Left) |
| 7 | Screw |
| 8 | Handle, Door |
| 10 | Hinge, Door R or L |
| 10 | WP90296 Whirlpool Clip |
| 10 | WP9724509 Whirlpool Bumper |
| 11 | WPW10001180 Whirlpool Refrigerator Screw |
| 11 | Spacer, Handle (2) |
| 12 | Gasket, glass |
| 13 | Retainer, Glass |
| 14 | 238614 Whirlpool Bumper Hinge |
| 16 | Glass, Inner-Outer |
| 19 | Liner, Door |
| 19 | WP4159387 Whirlpool Compactor Screw |
| 20 | Drawer & Roller |
| 21 | Screw (4) 10 x 1/2 |
| 21 | Bracket, Drawer |
| 24 | Front, Drawer (White) |
| 25 | 814229 Whirlpool Primary Roller |
