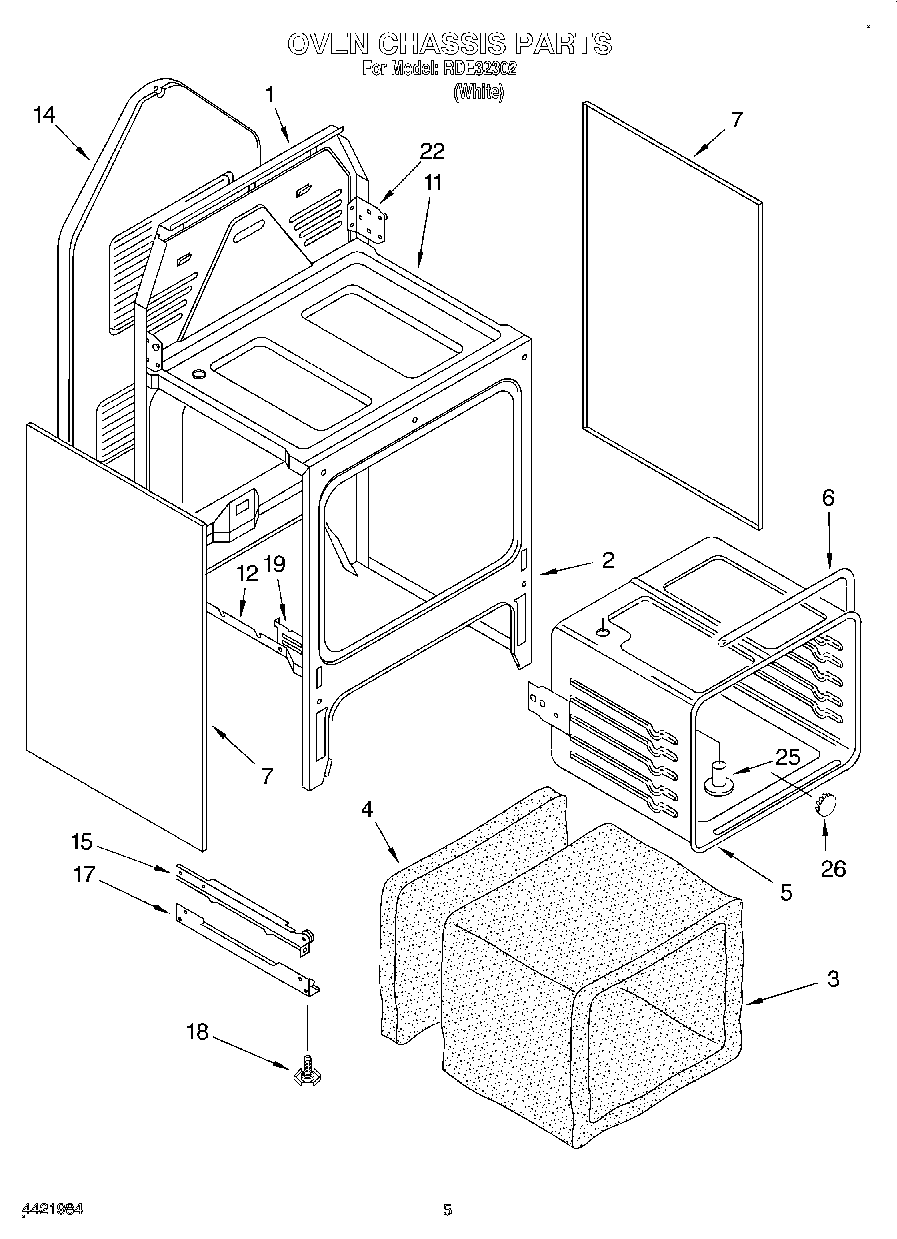

RDE32302 04 – OVEN CHASSIS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	WPL 9750392
4	WPL 9750388
5	Oven Liner
6	Gasket, Oven
7	Oven , Side L or R (White)
11	Burner Box
11	Screw, (2)
12	Oven Bottom
14	Panel, Rear
15	Rail, Drawer (Right)
15	Drawer Rail, Left
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Screw (4) 10 x 1/2
19	Hinge, Receiver (2)
22	Hinge, Cktp.-Right
22	Hinge, Cktp.-Left
22	WP4159387 Whirlpool Compactor Screw
25	Vent Tube
26	Button, Plug
